Article No. 7641
SPORTFIX channels with track boundaries (HU)
Type 010 with turf edge, curved, r = 36.5 m

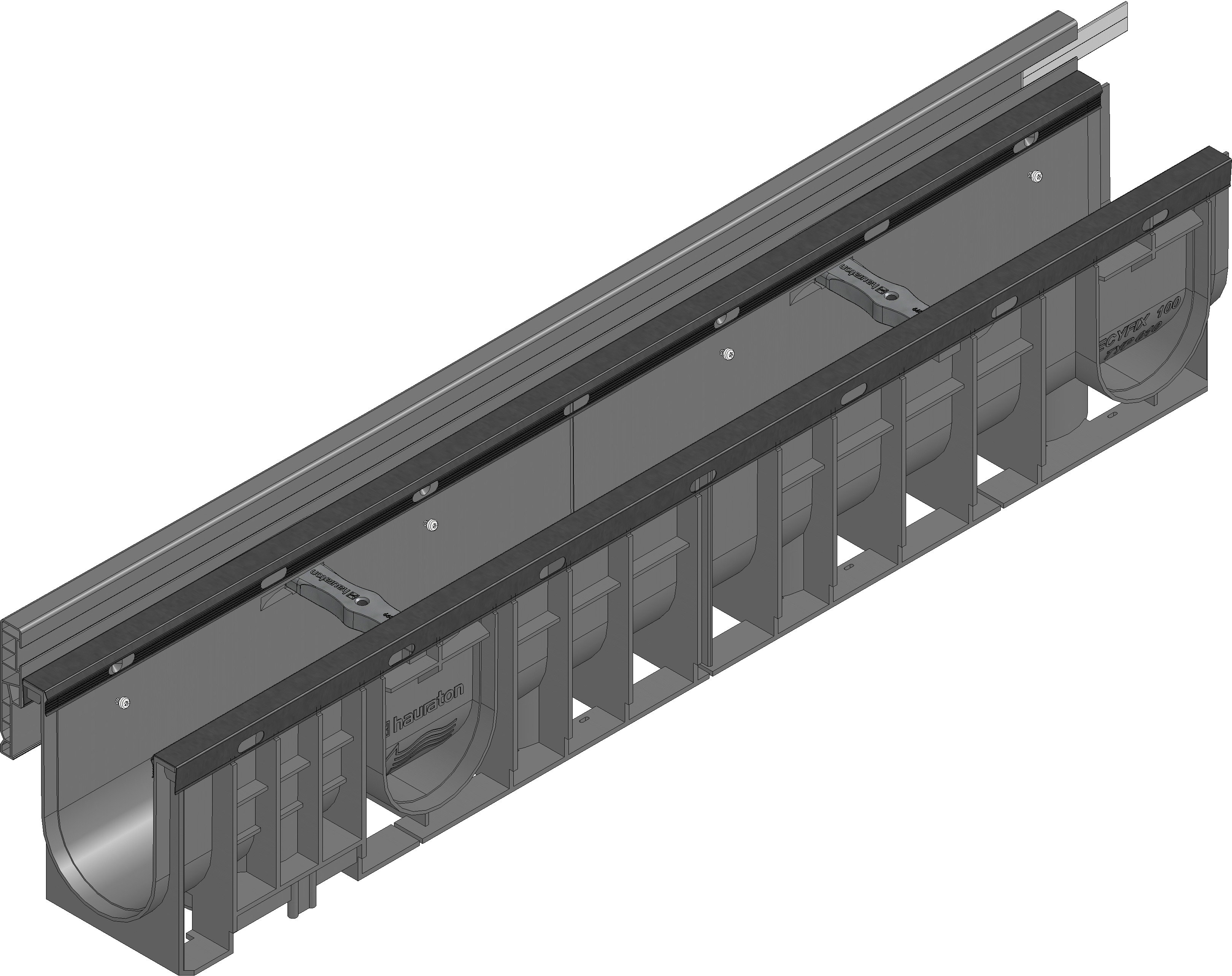

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
7641
Length
1000 mm
Width
166 mm
Height
220 mm
Weight
3.87 kg
Material
KTL coated steel, recycled polypropylene
Height of angle housing
-
Nominal size
100
Internal channel cross-section
142 cm²
Fall
-
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material of angle housing
KTL coated steel
Regulations
EN 1433 + IAKS
Sales text
SPORTFIX Channel body type 010 with one-sided turf edge, curved, 1 m
Product description
SPORTFIX type 010 - Channel body, made of recycled polypropylene, black, with integrated edge frame made of galvanised steel, KTL-coated, for easy installation of running track surface, with one-sided turf edge, curved version for radius = 36.50 m, according to the requirements of World Athletics. The stability of the channel base of alternative products must be demonstrated to the client before installation. LxWxH 1000x166x220 mm, item no. 7641
Packaging unit
50
Tender Texts
Installation example
running track / playing field class A 15,
