Article No. 33390
SLOTTED COVERS 200, neck height 200 mm, class D 400
Access cover, SW 14 mm, galvanised, asymmetric, 0.5 m

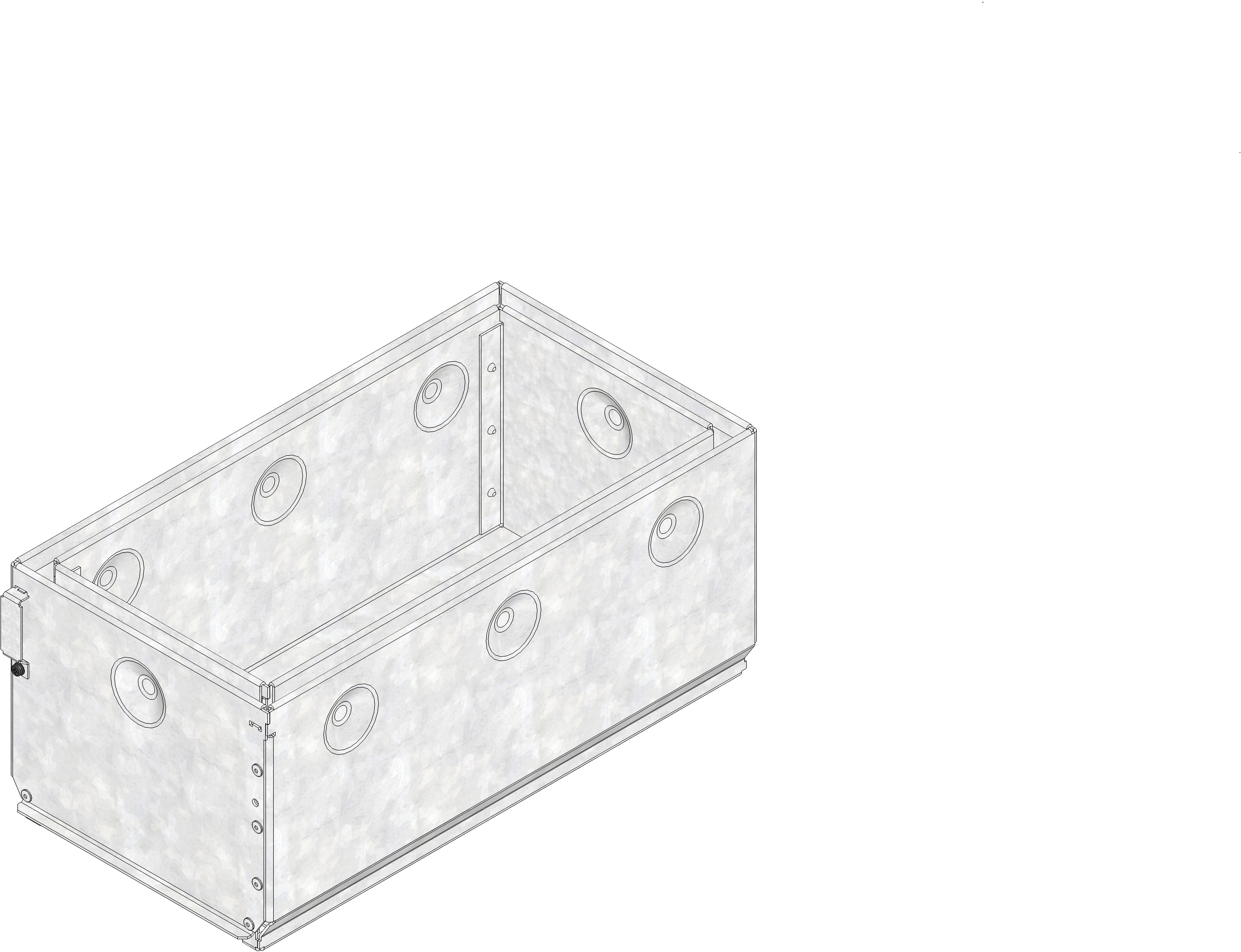

Product image
Technical drawing
Drawing (CAD)
Technical information and metrics
Article No.
33390
Length
500 mm
Width
263 mm
Height
222 mm
Inlay depth
222 mm
Weight
13.10 kg
Material
strip galvanized steel
Intake cross-section
398.0 cm²/m
Nominal size
200
Inlet opening
500 x 14 mm
Material grating
strip galvanized steel
Sales text
Access cover SW 14 mm, neck height 200 mm, galvanised, asymmetric, cl. D400, FASERFIX KS/ RECYFIX PRO 200, 0.5 m
Product description
FASERFIX KS/ RECYFIX PRO 200 - Access cover for slotted cover SW 14 mm, neck height 200 mm, asymmetric, galvanised, load class A 15 - D 400 according to EN 1433, length 500 mm, item no. 33390
