Article No. 33368
SLOTTED COVERS 200, neck height 160, class C 250
Access cover, SW 12 mm, galvanised, asymmetric, 0.5 m
Product image
Technical drawing

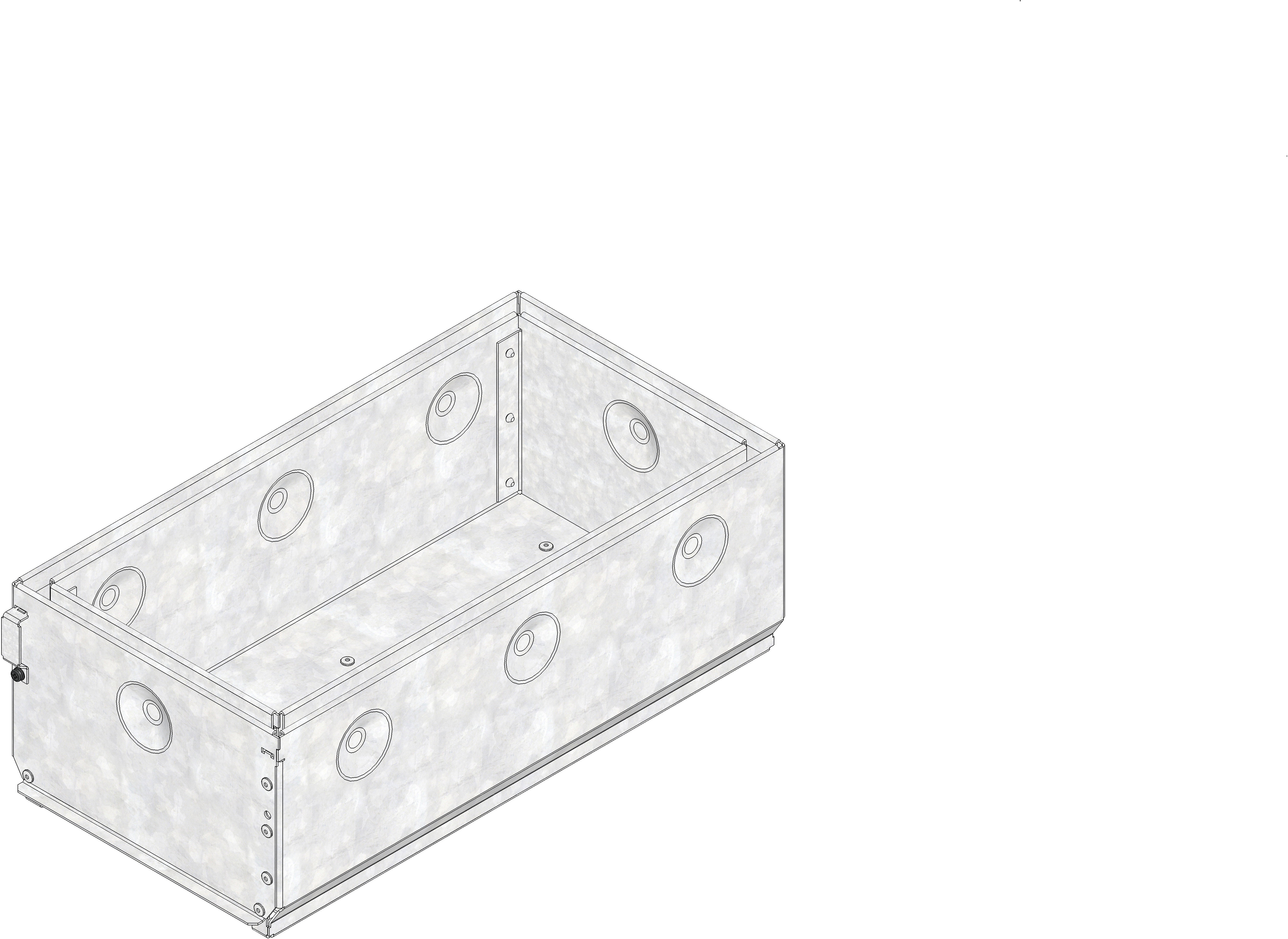

Drawing (CAD)
Technical information and metrics
Article No.
33368
Length
500 mm
Width
263 mm
Height
181 mm
Inlay depth
181 mm
Weight
9.06 kg
Material
strip galvanized steel
Intake cross-section
345.0 cm²/m
Nominal size
200
Inlet opening
500 x 12 mm
Material grating
strip galvanized steel
Sales text
Access cover SW 12 mm, neck height 160 mm, galvanised, asymmetric, cl. C 250, FASERFIX KS/ RECYFIX PRO 200, 0.5 m
Product description
FASERFIX KS/ RECYFIX PRO 200 -Access cover for slotted cover SW 12 mm, neck height 160 mm, asymmetric, galvanised, load class A 15 - C 250 according to EN 1433, length 500 mm, item no. 33368
Packaging unit
-
