Article No. 32734
SLOTTED COVERS 150, neck height 200 mm, class D 400
Access cover, SW 14 mm, stainless steel, asymmetric, 0.5 m
Product image

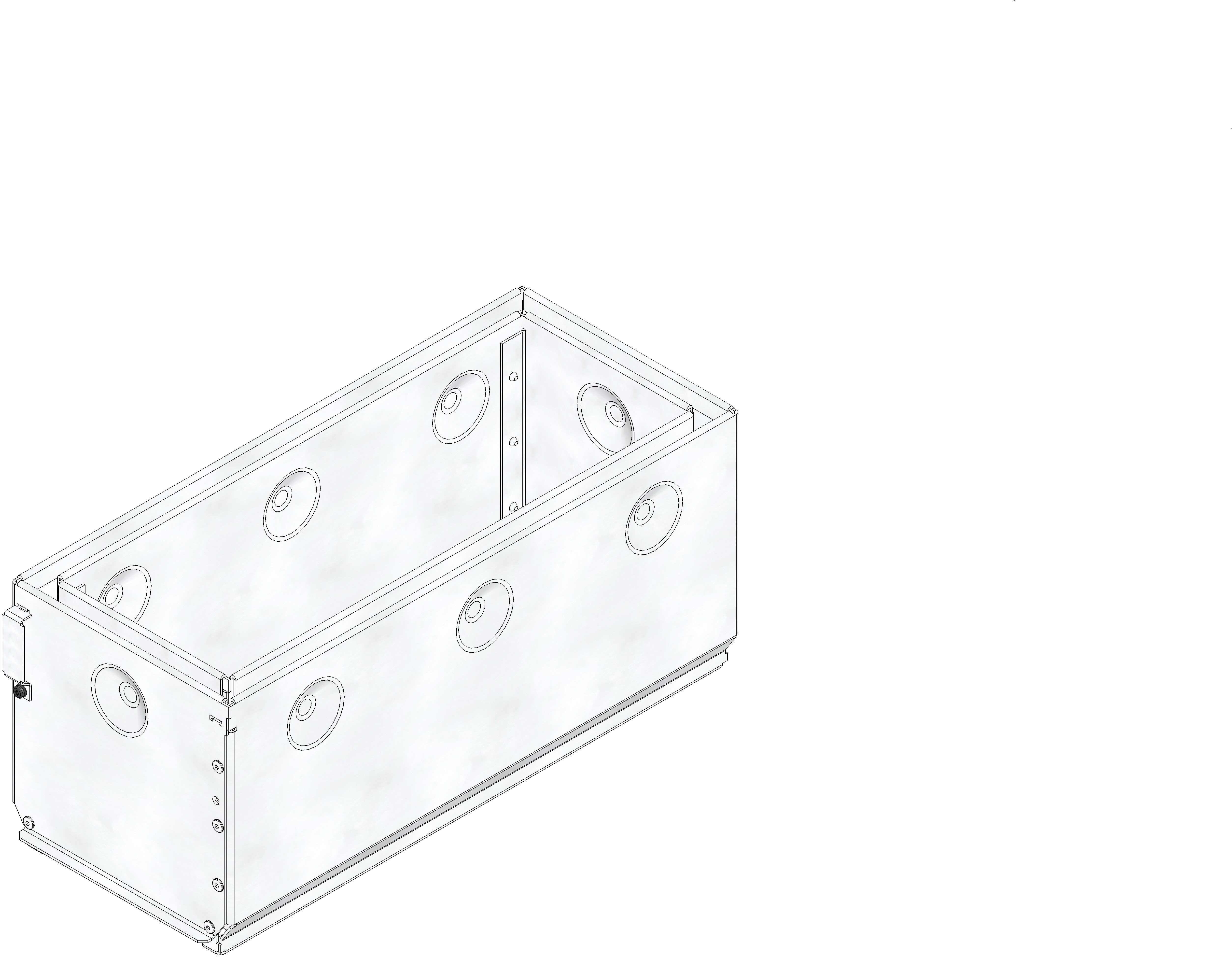

Technical drawing
Drawing (CAD)
Technical information and metrics
Article No.
32734
Length
500 mm
Width
213 mm
Height
222 mm
Inlay depth
222 mm
Weight
11.53 kg
Material
Stainless steel 1.4301
Intake cross-section
370.0 cm²/m
Nominal size
150
Inlet opening
500 x 14 mm
Material grating
Stainless steel 1.4301
Regulations
in accordance with EN 1433
Sales text
Access cover SW 14 mm, neck height 200 mm, stainless steel, asymmetric, cl. D 400, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 150, 0.5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 150 -Access cover for slotted cover SW 14 mm, neck height 200 mm, asymmetric, stainless steel CNS 1.4301, load class A 15 - D 400 according to EN 1433, length 500 mm, item no. 32734
Packaging unit
30
