Article No. 33120
SLOTTED COVERS 100, neck height 105 mm, class D 400
Corner element inside corner 90°, asymmetric, SW 2 x 6 mm, stainless steel, side length 0.5 m

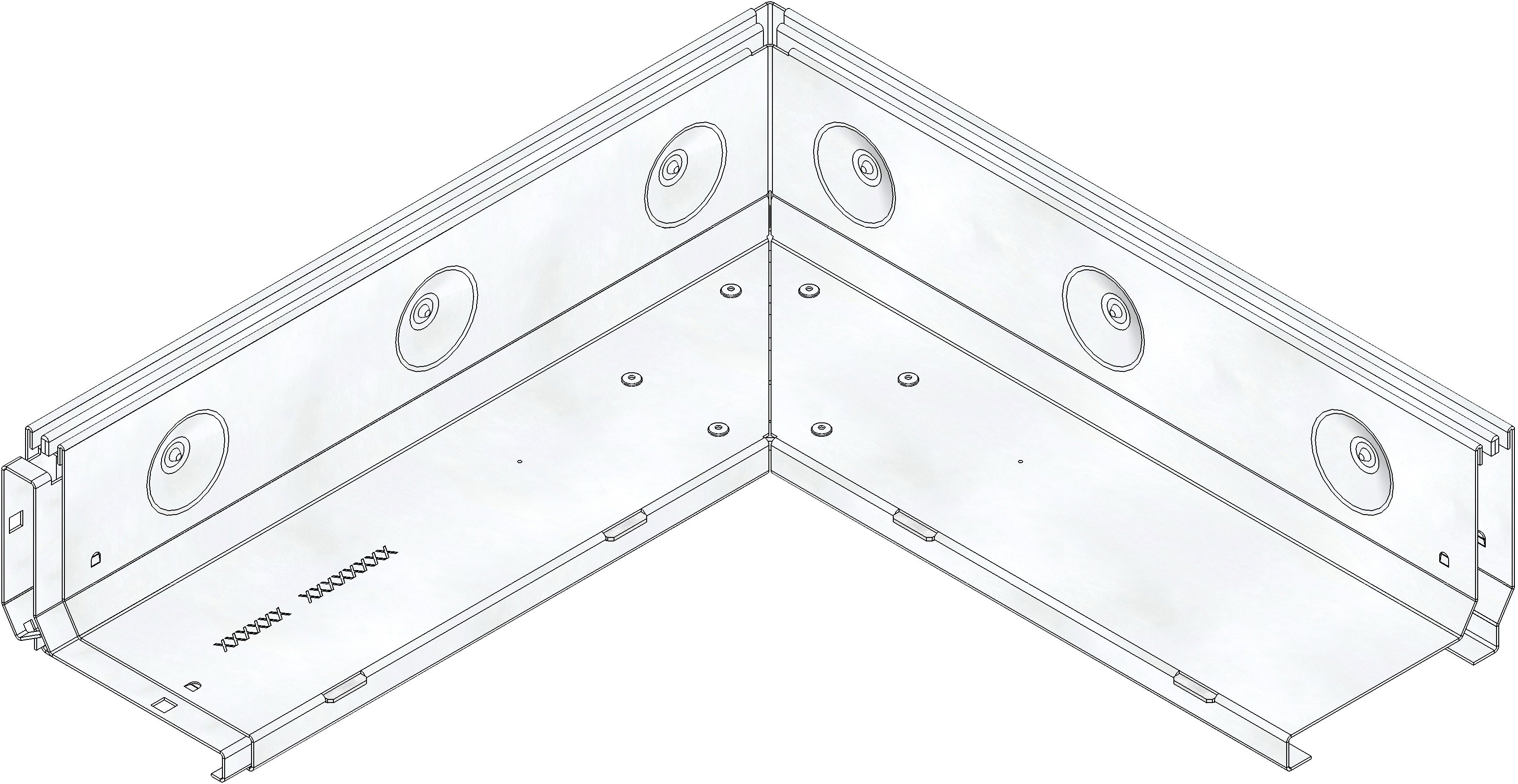

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
33120
Length
500 mm
Width
156 mm
Height
134 mm
Inlay depth
126 mm
Weight
8.55 kg
Material
Stainless steel 1.4301
Intake cross-section
0.0 cm²/m
Nominal size
100
Inlet opening
500 x 6 mm
Sales text
Slotted cover SW 2x6 mm, neck height 105 mm, stainless steel, asymmetric, as corner element inside corner 90°, with integrated, full -surface connector, cl. C 250, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, side length 0.5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 - Slotted cover SW 2x6 mm, neck height 105 mm, asymmetric, stainless steel CNS 1.4301, as corner element inside corner 90°, with integrated full-surface connector, load class A 15 - C 250 according to EN 1433, side length 500 mm, item no. 33120
Packaging unit
-
Tender Texts
Installation example
Pavement class A 15,
Pavement class B 125,
Pavement class C 250,
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
