Article No. 33340
SLOTTED COVERS 100, neck height 105 mm, class D 400
Asymmetrical SW 10 mm, galvanised, 1.0 m

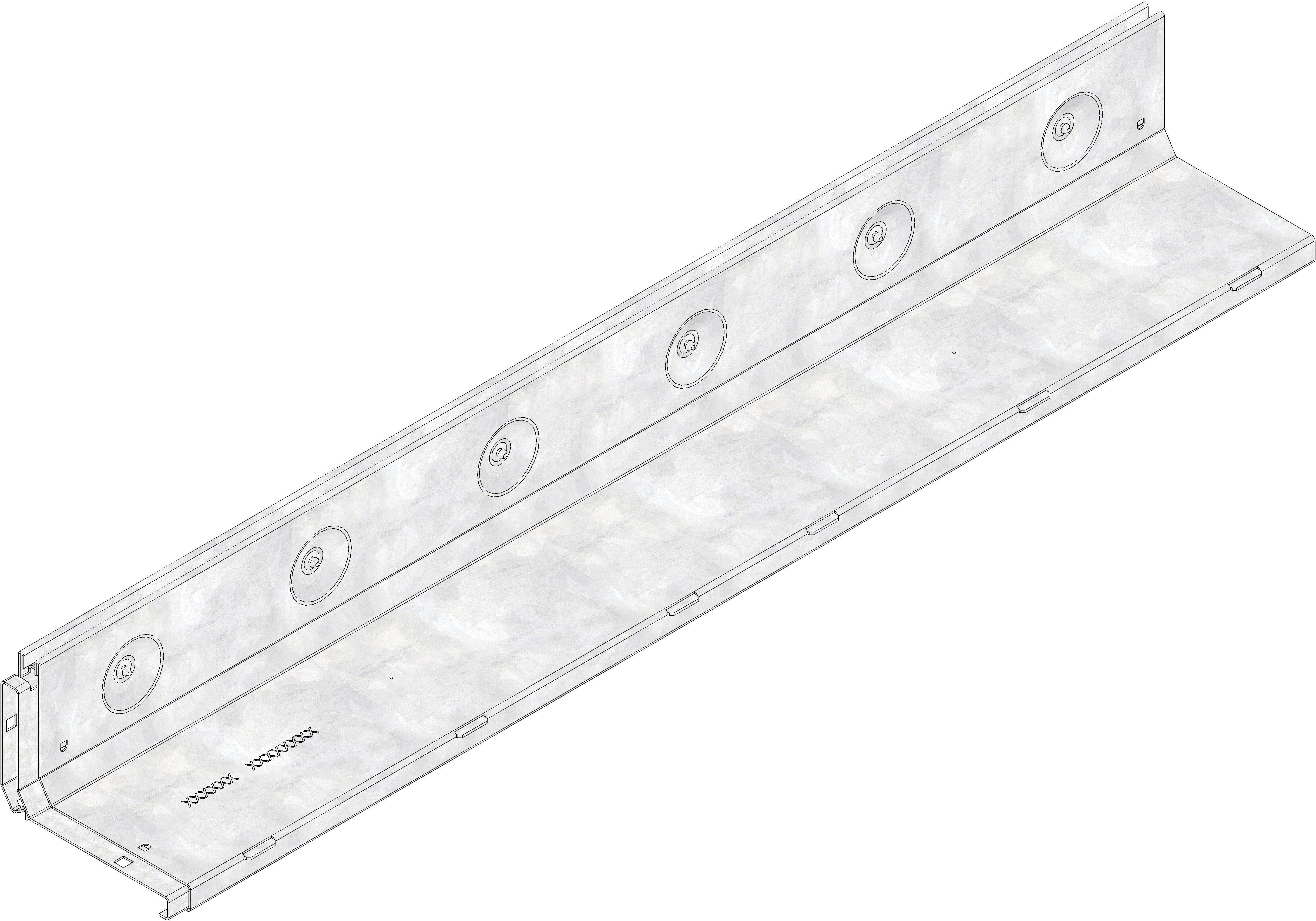

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
33340
Length
1000 mm
Width
156 mm
Height
134 mm
Inlay depth
126 mm
Weight
6.22 kg
Material
strip galvanized steel
Intake cross-section
100.0 cm²/m
Nominal size
100
Inlet opening
1000 x 10 mm
Regulations
in accordance with EN 1433
Sales text
Slotted cover SW 10 mm, neck height 105 mm, galvanised, asymmetric, with integrated, full-surface connector, cl. D 400, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 1 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Slotted cover SW 10 mm, neck height 105 mm, asymmetric, galvanised, with integrated full-surface connector, load class A 15 - D 400 according to EN 1433, length 1000 mm, item no. 33340
Packaging unit
80
Tender Texts
Installation example
Pavement class A 15,
Pavement class B 125,
Pavement class C 250,
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
