Article No. 32957
SLOTTED COVERS 100, neck height 105 mm, class D 400
asymmetric, duo slot, SW 2 x 6 mm, stainless steel, 1.0 m
Product image

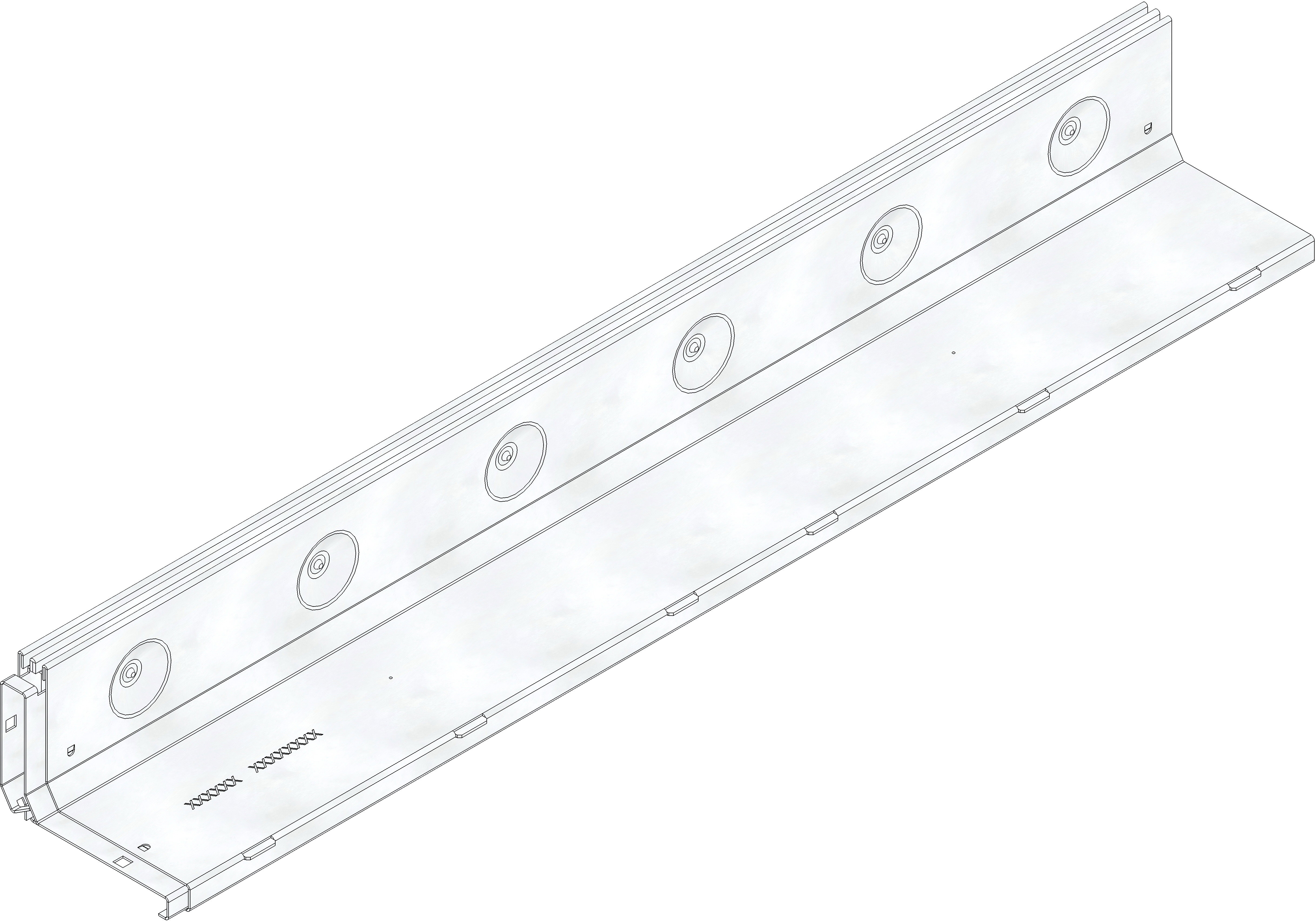

Technical drawing
Drawing (CAD)
Technical information and metrics
Article No.
32957
Length
1000 mm
Width
156 mm
Height
134 mm
Inlay depth
126 mm
Weight
8.27 kg
Material
Stainless steel 1.4301
Intake cross-section
120.0 cm²/m
Nominal size
100
Inlet opening
1000 x 6 mm
Material grating
Stainless steel 1.4301
Regulations
EN 1433
Sales text
Duo slotted cover SW 2x6 mm, neck height 105 mm, stainless steel, asymmetric, with integrated, full-surface connector, cl. D 400, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 1 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 - Duo slotted cover SW 2x6 mm, neck height 105 mm, asymmetric, stainless steel CNS 1.4301, with integrated full-surface connector, load class A 15 - D 400 according to EN 1433, length 1000 mm, item no. 32957
Packaging unit
80
