Article No. 32960
SLOTTED COVERS 100, neck height 105 mm, class D 400
Access cover SW 2 x 6 mm, galvanised, asymmetric, 0.5 m

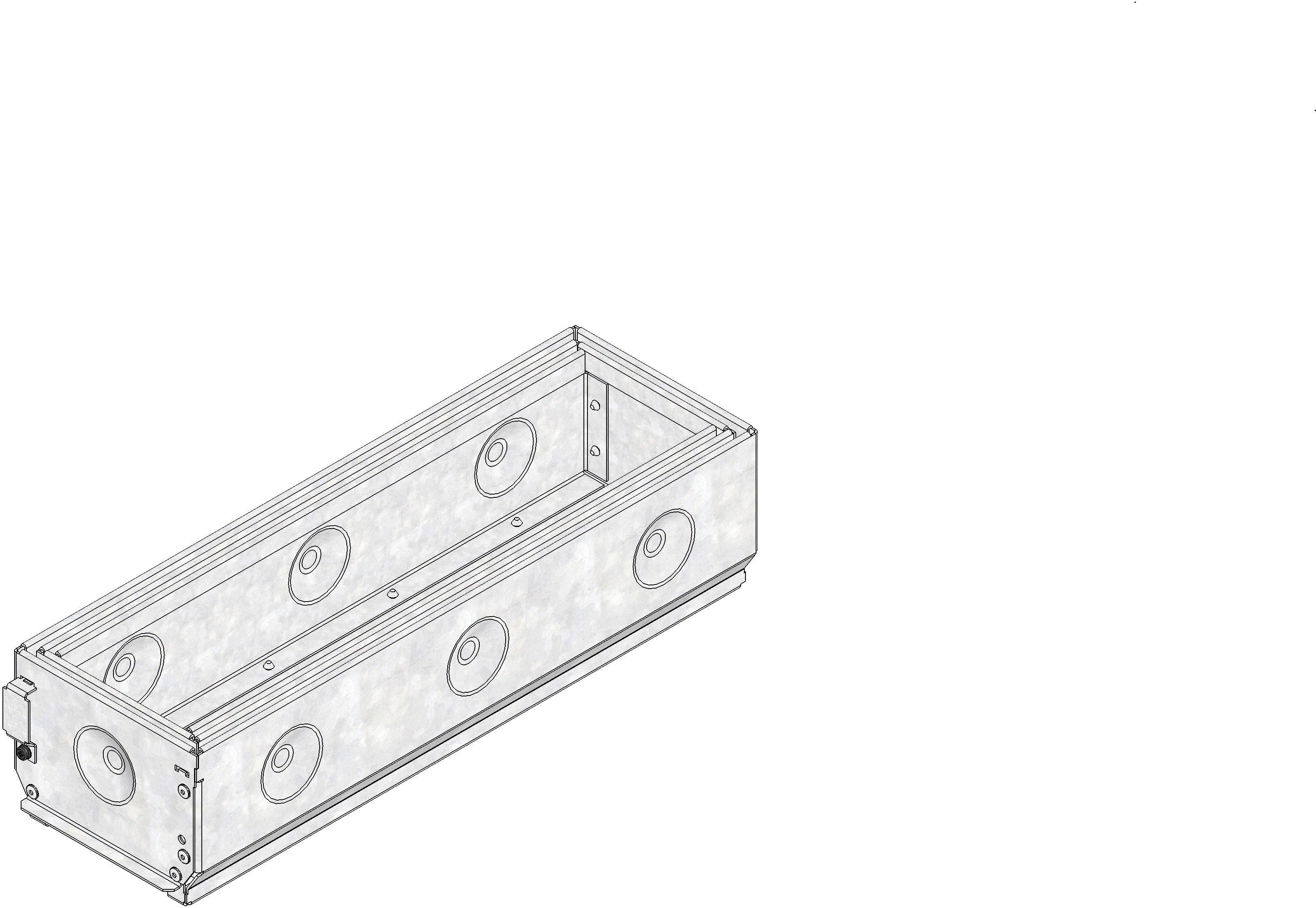

Product image
Technical drawing
Drawing (CAD)
Technical information and metrics
Article No.
32960
Length
500 mm
Width
163 mm
Height
125 mm
Inlay depth
125 mm
Weight
6.79 kg
Material
strip galvanized steel
Intake cross-section
264.0 cm²/m
Nominal size
100
Inlet opening
500 x 6 mm
Material grating
strip galvanized steel
Sales text
Access cover SW 2x6 mm, neck height 105 mm, galvanised, asymmetric, cl. D 400, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 0.5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Access cover for duo slotted cover SW 2x6 mm, neck height 105 mm, galvanised, asymmetric, load class A 15 - D 400 according to EN 1433, length 500 mm, item no. 32960
Packaging unit
84
