Article No. 33349
SLOTTED COVERS 100, neck height 105 mm, class D 400
Access cover SW 10 mm, stainless steel, asymmetric, 0.5 m
Product image

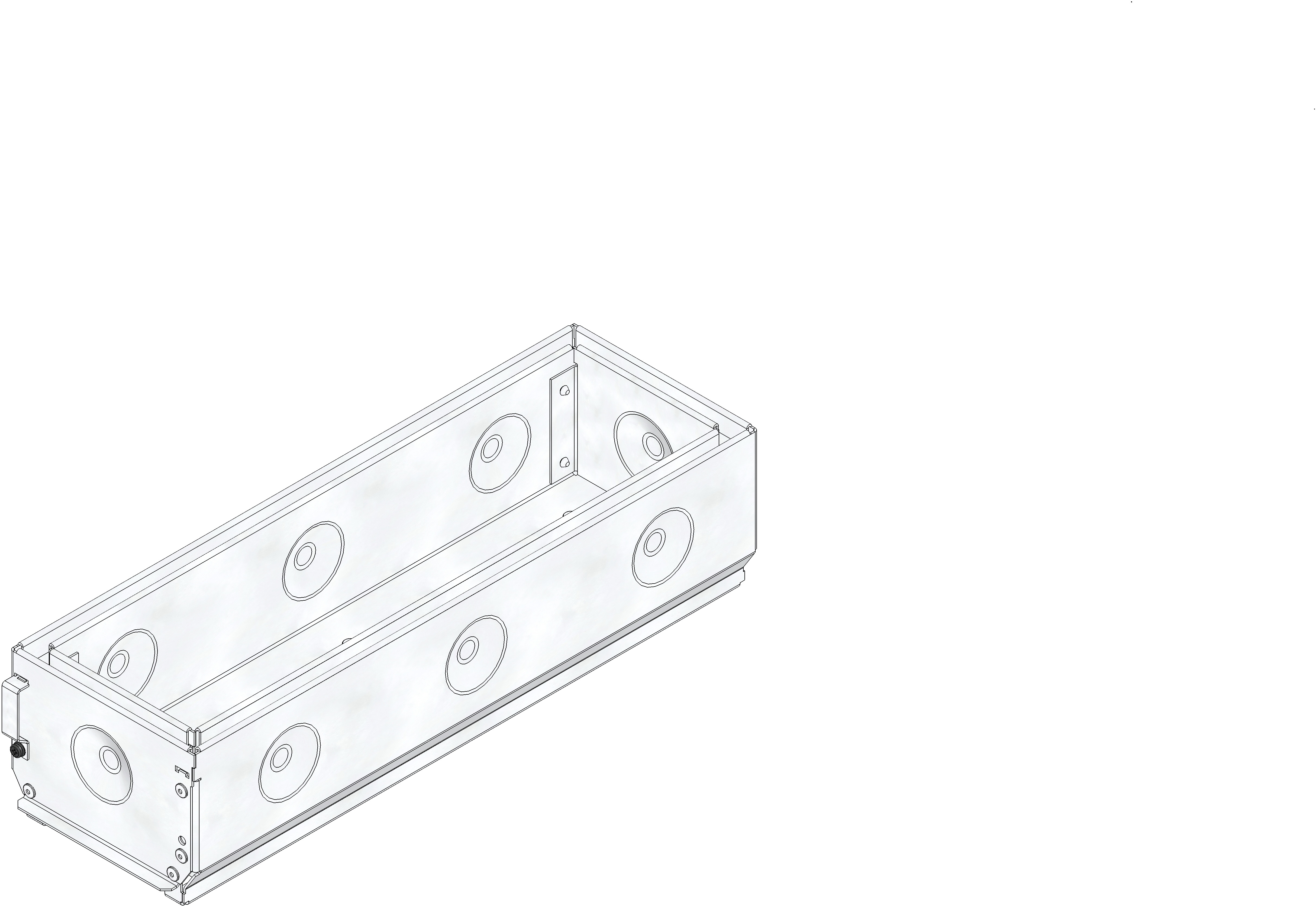

Technical drawing
Drawing (CAD)
Technical information and metrics
Article No.
33349
Length
500 mm
Width
163 mm
Height
125 mm
Inlay depth
125 mm
Weight
5.17 kg
Material
Stainless steel 1.4301
Intake cross-section
0.0 cm²/m
Nominal size
100
Inlet opening
500 x 10 mm
Material grating
Stainless steel 1.4301
Regulations
in accordance with EN 1433
Sales text
Access cover SW 10 mm, neck height 105 mm, stainless steel, asymmetric, cl. D 400, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 0.5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Access cover for slotted cover SW 10 mm, neck height 105 mm, asymmetric, stainless steel CNS 1.4301, load class D 400 according to EN 1433, length 500 mm, item no. 33349
Packaging unit
84
