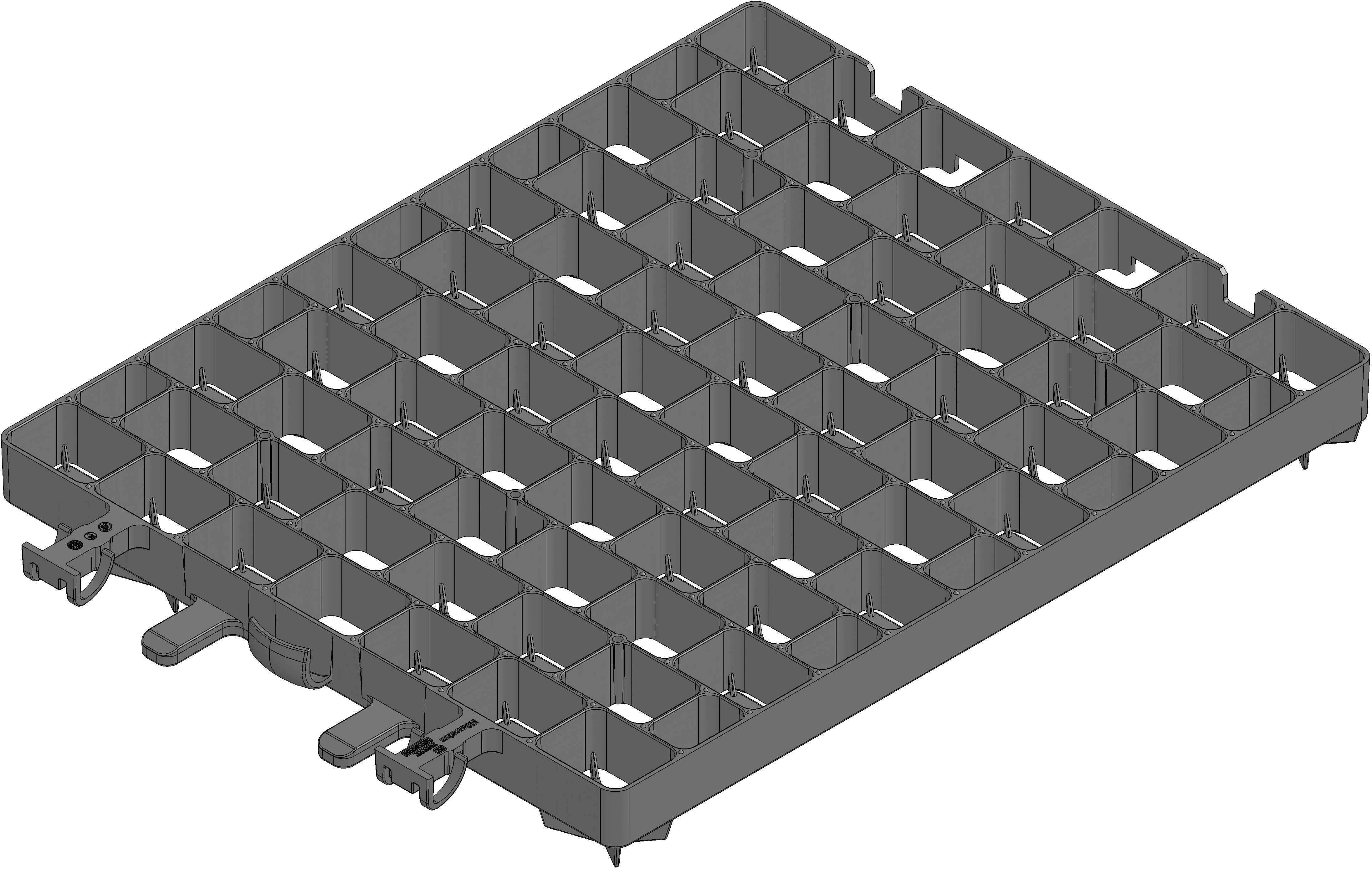

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
40118
Length
600 mm
Width
800 mm
Height
79 mm
Weight
3.23 kg
Material
PE-HD
Sales text
RECYFIX GRID ROAD 60/80 - Road Shoulder Grid, black
Product description
RECYFIX GRID ROAD 40/80 - Road Shoulder Grid made of recycled PE-HD, tested surface load up to max. 260 to/m², with joint connection technique, demand: approx. 1.3 pieces/m, colour black, LxWxH approx. 600x800x80 mm, item no. 40118
Packaging unit
80
Tender Texts
Installation instructions

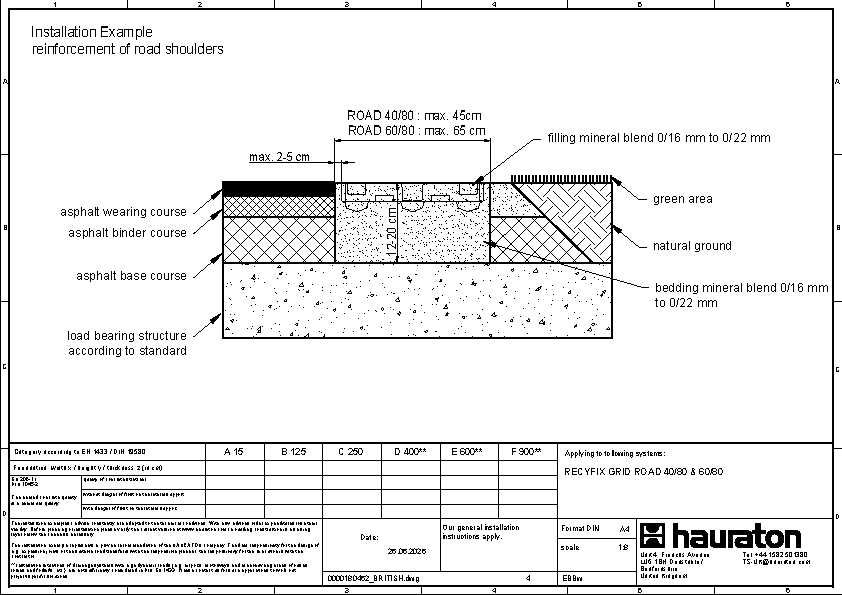

Installation example
Installation example
