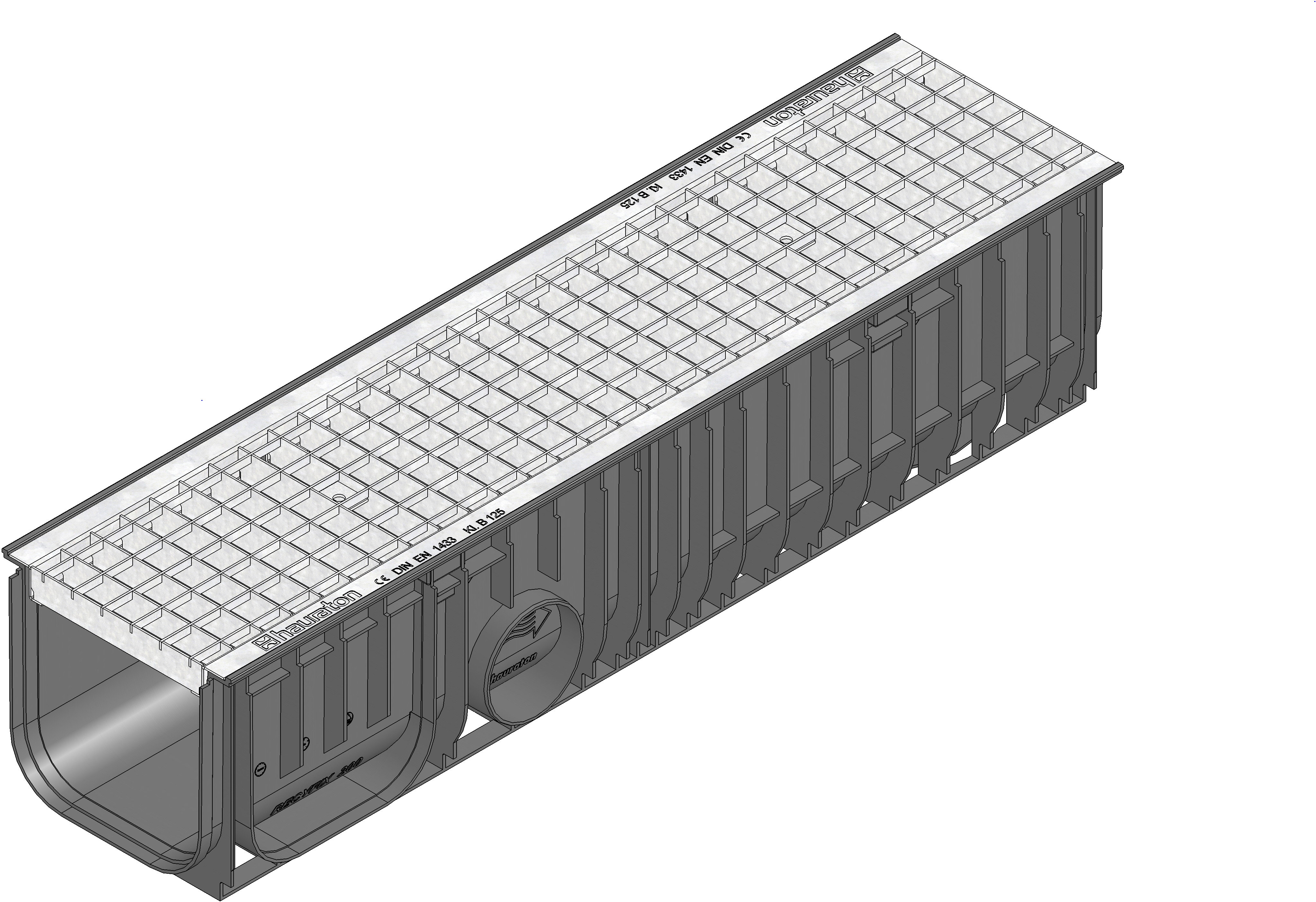

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
40675
Length
1000 mm
Width
256 mm
Height
235 mm
Inlay depth
2 mm
Weight
9.10 kg
Material
hot-dip galvanised steel, recycled polypropylene
Intake cross-section
1633.0 cm²/m
Nominal size
200
Internal channel cross-section
394 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 200 Channel type 020 with mesh grating MS 30/30 mm, galvanised, cl. B 125, 1 m
Product description
RECYFIX STANDARD 200 type 020 - Channel body made of recycled polypropylene, with lateral (DN/OD 110) and vertical connection possibility (DN/OD 110/160), with mesh grating MS 30/30 mm, made of galvanised steel, overlying, load class A 15 - B 125 according to EN 1433, LxWxH 1000x256x235 mm, item no. 40675
Packaging unit
16
Tender Texts
Installation example
Pavement class B 125,
Cemented floor class B 125 - C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Concrete class C 250,
Pavement class C 250,
