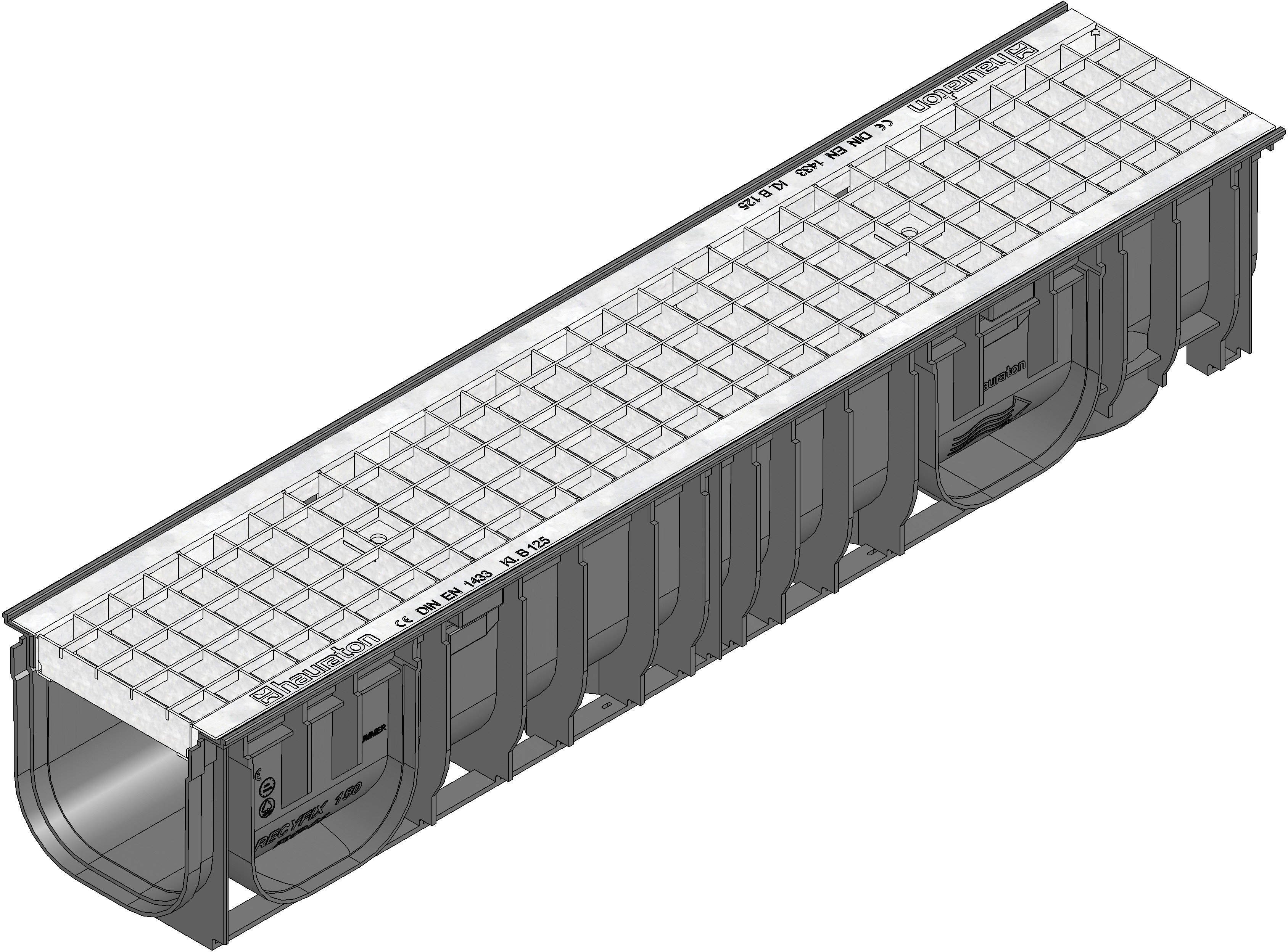

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
40170
Length
1000 mm
Width
210 mm
Height
192 mm
Inlay depth
2 mm
Weight
7.65 kg
Material
hot-dip galvanised steel, recycled polypropylene
Intake cross-section
1237.0 cm²/m
Nominal size
150
Internal channel cross-section
225 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 150 Channel type 01 with mesh grating MS 30/30 mm, galvanised, cl. B 125
Product description
RECYFIX STANDARD 150 type 01 - Channel body made of recycled polypropylene, with vertical connection possibility DN/OD 110/160, with mesh grating MS 30/30 mm, made of galvanised steel, overlying, load class A 15 - B 125 according to EN 1433, LxWxH 1000x210x192 mm, item no. 40170
Packaging unit
25
Tender Texts
Installation example
Pavement class B 125,
Cemented floor class B 125 - C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Concrete class C 250,
Pavement class C 250,
Installation instructions
