Article No. 47248
RECYFIX PRO 200, class B 125
Typ 010 with mesh grating, MS 30/10 mm, galvanised, locked, 1.0 m

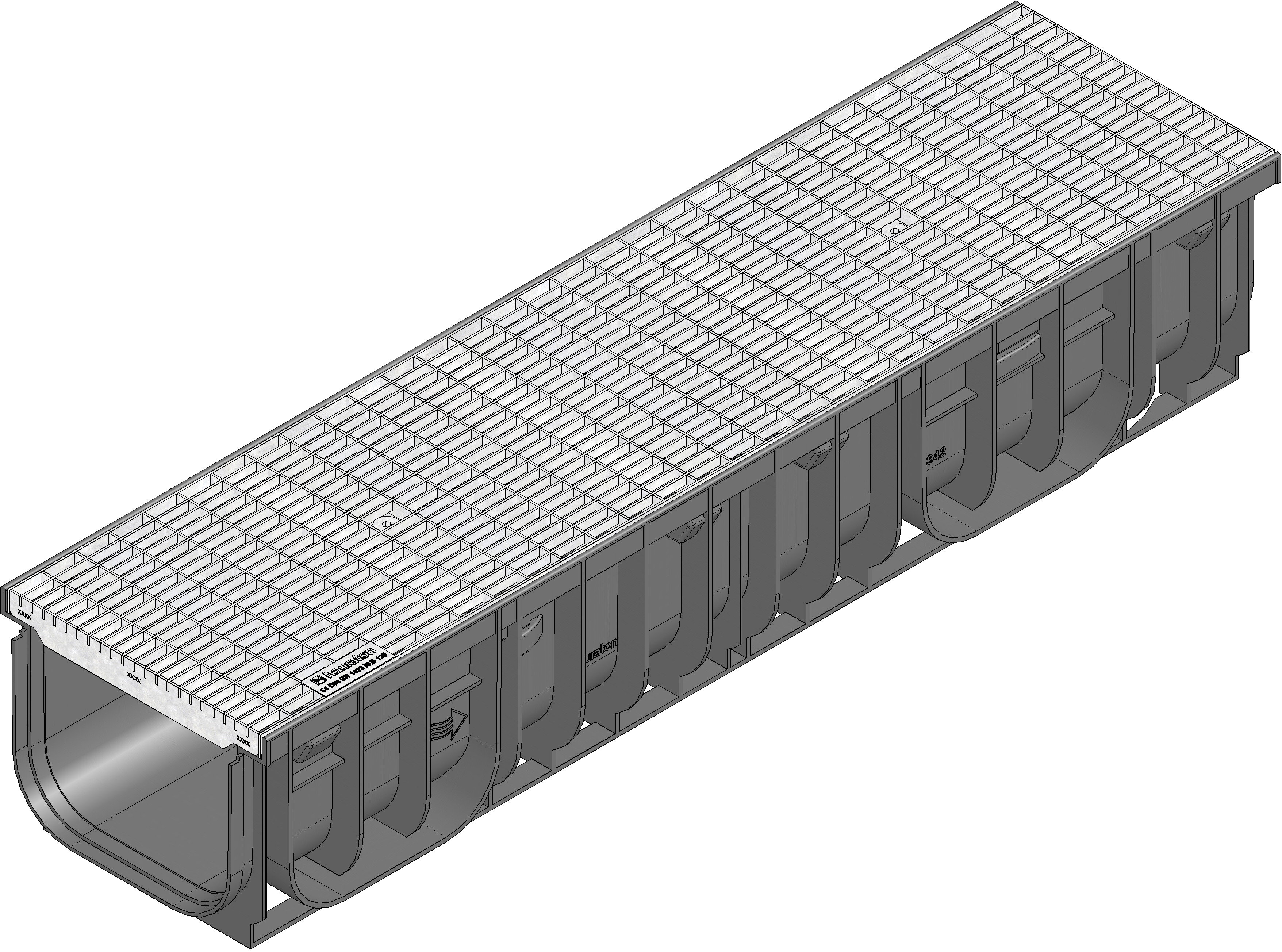

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
47248
Length
1000 mm
Width
262 mm
Height
200 mm
Inlay depth
20 mm
Weight
11.00 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled polypropylene
Intake cross-section
1873.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 200 Channel type 010 with integrated edge frames, with mesh grating MS 30/10 mm, galvanised, cl. B 125, locked, 1 m
Product description
RECYFIX PRO 200 type 010 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 110/160, with mesh grating MS 30/10 mm, galvanised, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 1000x262x200 mm, item no. 47248
Packaging unit
20
Tender Texts
Installation example
Installation example
water-bound road surfaces class A 15,
Asphalt class A 15 - B 125,
water-bound road surfaces class A 15 - B 125,
Pavement class A 15 - B 125,
Pavement class A 15 - B 125,
Concrete class A 15 - C 250, Flat channel
Pavement class A 15 - C 250,
Pavement class C 250,
Concrete class D 400,
Concrete class C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Installation instructions
