Article No. 70004
RECYFIX PRO 200, class A 15
Type 010 with grating, made of recycled PO, brown, closed, 0.5 m

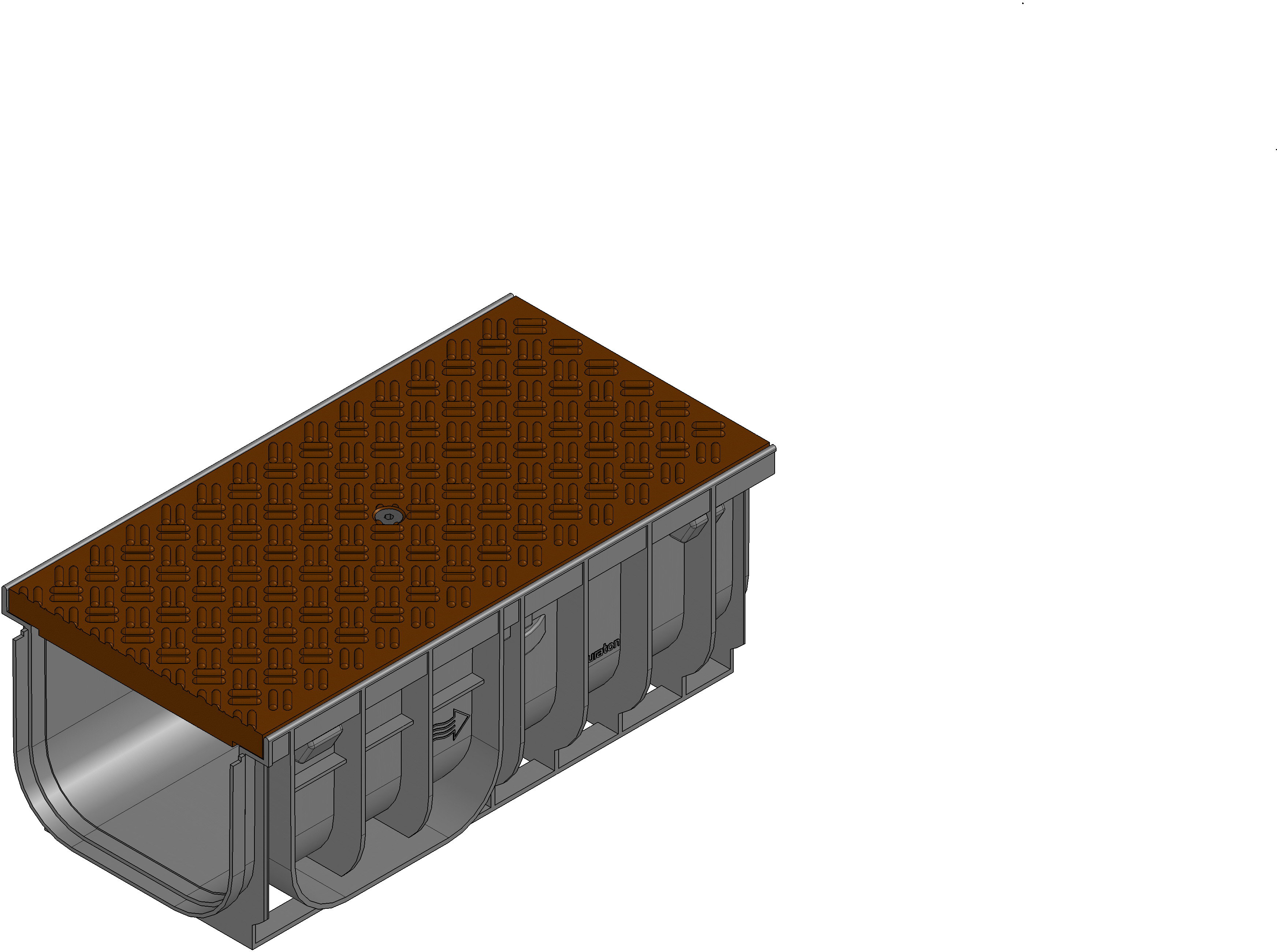

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
70004
Length
500 mm
Width
262 mm
Height
200 mm
Inlay depth
20 mm
Weight
4.59 kg
Material
Galvanised steel, recycled polyolefin, recycled polypropylene, Steel black galvanised
Intake cross-section
0.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
recycled polyolefin
Regulations
EN 1433
Sales text
RECYFIX PRO 200 Channel type 010 with integrated edge frames, with grating made of recycled PO, closed, brown, cl. A 15, locked, 0.5 m
Product description
RECYFIX PRO 200 type 010 - Channel body made of recycled polypropylene, with integrated edge frames, with grating made of recycled polyolefin, closed, brown, with locking, load class A 15 according to EN 1433, LxWxH 500x262x200 mm, item no. 70004
Packaging unit
40
Tender Texts
Installation example
Installation example
water-bound road surfaces class A 15,
Asphalt class A 15 - B 125,
water-bound road surfaces class A 15 - B 125,
Pavement class A 15 - B 125,
Pavement class A 15 - B 125,
Concrete class A 15 - C 250, Flat channel
Pavement class A 15 - C 250,
Pavement class C 250,
Concrete class D 400,
Concrete class C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Installation instructions
