Article No. 47009

RECYFIX PRO 100, class D 400

Type 95 with ductile iron design grating METROPOLIS, black, KTL-coated, locked, 1.0 m

Project request Tender Texts

Fragen?

Unser erfahrenes Planungsteam hilft Ihnen gerne.

Fragen?

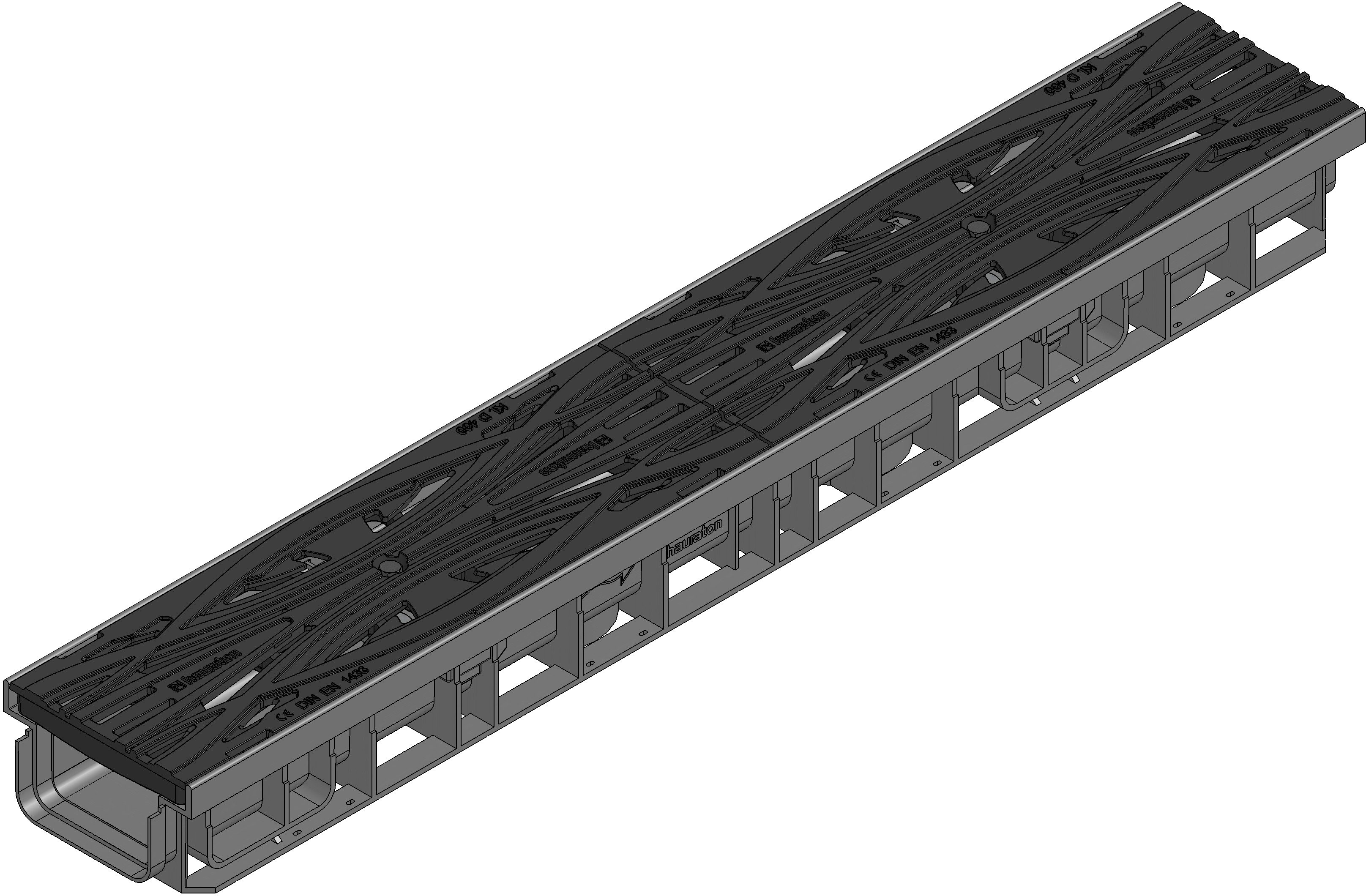

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Top view

Technical information and metrics
Article No.
47009
Length
1000 mm
Width
160 mm
Height
95 mm
Inlay depth
20 mm
Weight
11.81 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
165.0 cm²/m
Nominal size
100
Internal channel cross-section
55 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Channel type 95 with integrated edge frames, with ductile iron grating Metropolis, KTL-coated, cl. D 400, locked, 1 m
Product description
RECYFIX PRO 100 type 95 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 75, with ductile iron grating Metropolis, KTL-coated, with longitudinal slide protection and locking, load class A 15 - D 400 according to EN 1433, LxWxH 1000x160x95 mm, item no. 47009
Packaging unit
77
