Article No. 47003
RECYFIX PRO 100, class D 400
Type 01 with ductile iron design grating METROPOLIS, black, KTL-coated, locked, 0.5 m

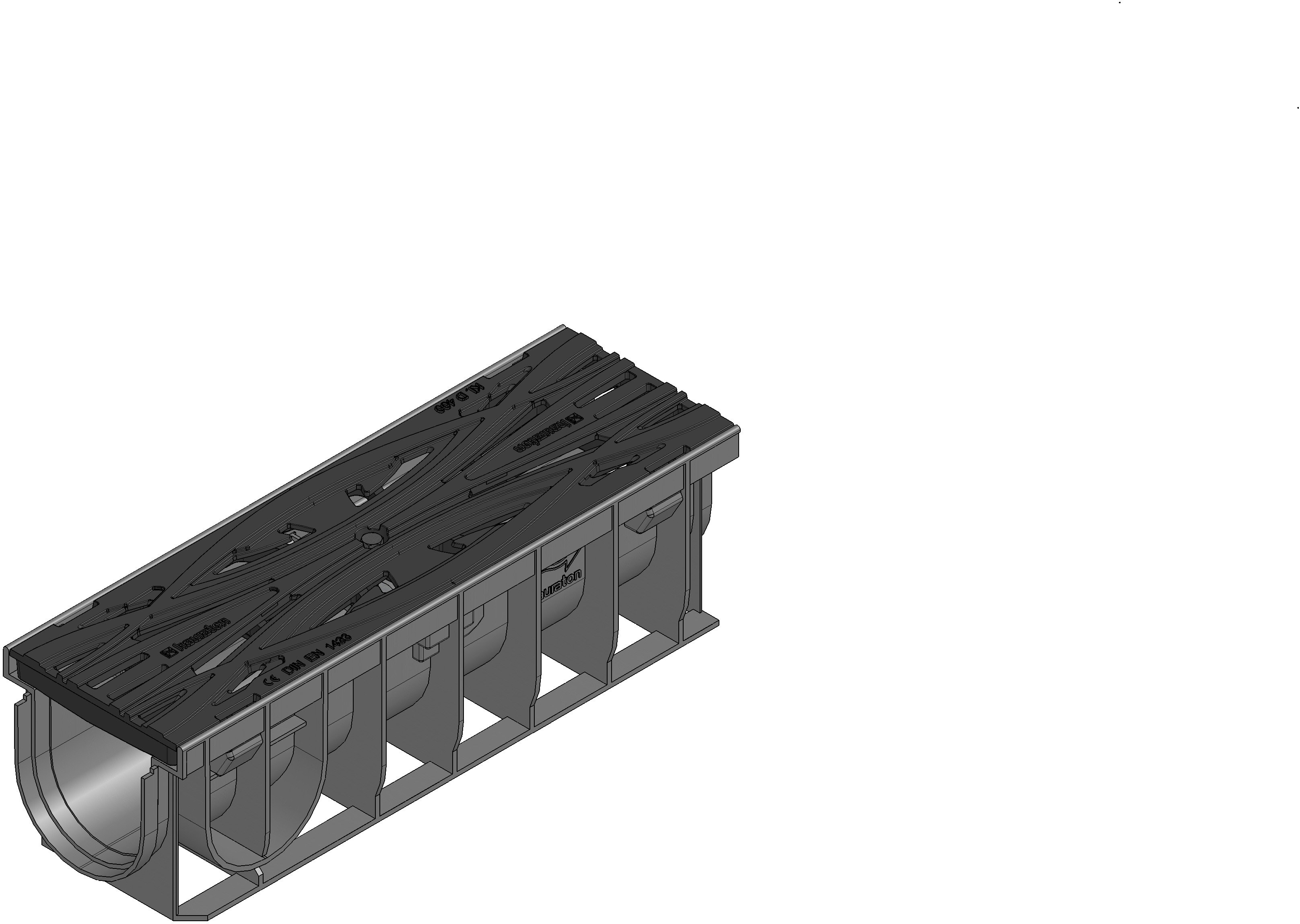

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
47003
Length
500 mm
Width
160 mm
Height
150 mm
Inlay depth
20 mm
Weight
6.24 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
165.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Rinne type 01 with integrated edge frames, with ductile iron grating Metropolis, KTL-coated, cl. D 400, locked, 0.5 m
Product description
RECYFIX PRO 100 type 01 - Channel body made of recycled polypropylene, with integrated edge frames, with ductile iron grating Metropolis, KTL-coated, with longitudinal slide protection and locking, load class A 15 - D 400 according to EN 1433, LxWxH 500x160x150 mm, item no. 47003
Packaging unit
98
Tender Texts
Installation example
water-bound road surfaces class A 15,
Asphalt class A 15 - B 125,
Pavement class A 15 - B 125,
water-bound road surfaces class A 15 - B 125,
Pavement class A 15 - B 125,
Concrete class A 15 - C 250, Flat channel
Cemented floor class A 15 - C 250,
Pavement class C 250,
Concrete class D 400,
Concrete class C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Installation instructions
