Article No. 48676
RECYFIX PRO 100, class C 250
Type 020 with longitudinal ductile iron grating, SW 9 mm, KTL-coated, locked, 0.5 m

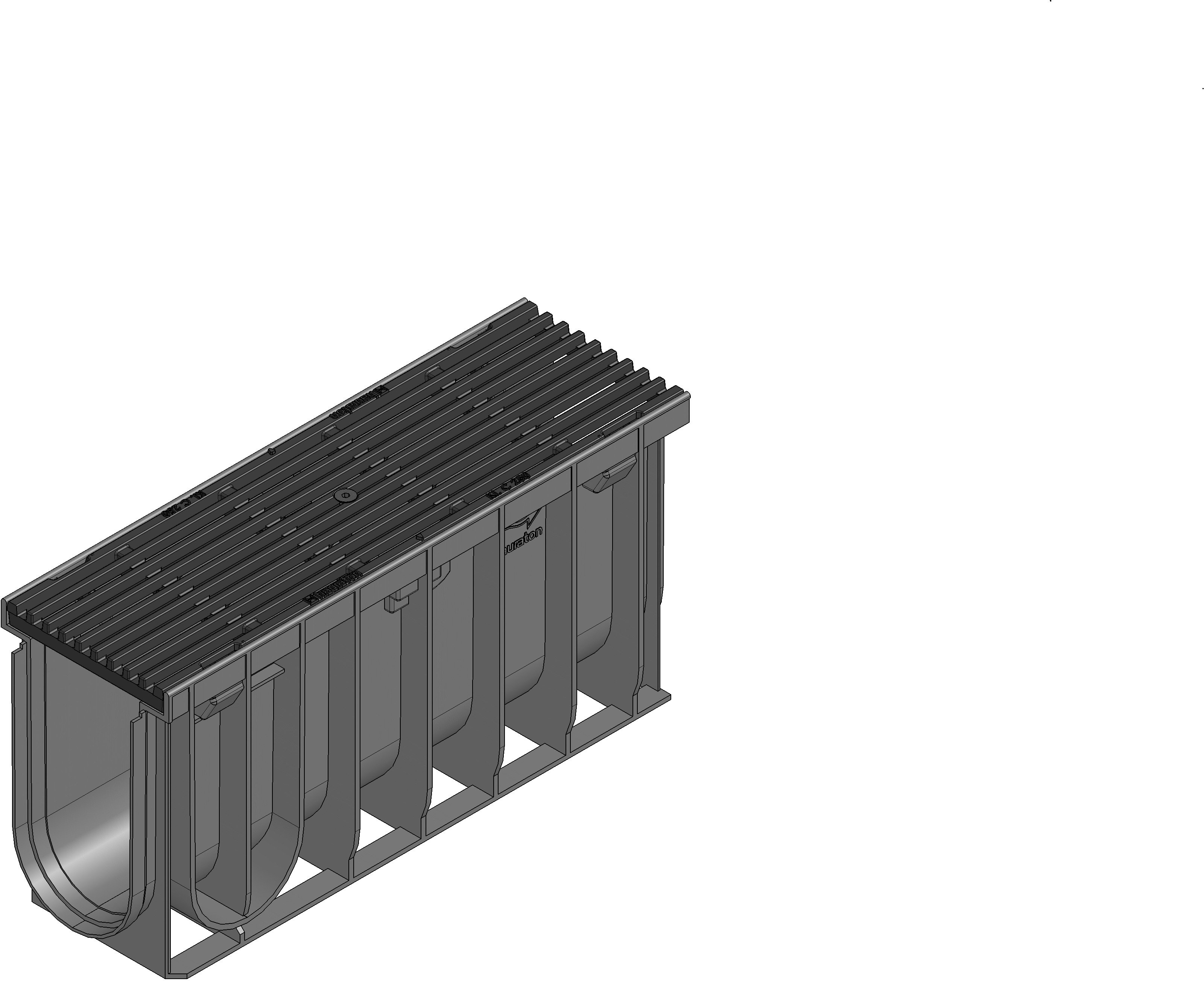

Product image
Technical drawing
Drawing
Drawing (CAD)
Technical information and metrics
Article No.
48676
Length
500 mm
Width
160 mm
Height
250 mm
Inlay depth
20 mm
Weight
5.69 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
577.0 cm²/m
Nominal size
100
Internal channel cross-section
192 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Channel type 020 with integrated edge frames, with longitudinal ductile iron grating bar distance 9 mm, KTL-coated, cl. C 250, locked, 0.5 m
Product description
RECYFIX PRO 100 type 020 - Channel body made of recycled polypropylene, with integrated edge frames, with longitudinal ductile iron grating bar distance 9 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x160x250 mm, item no. 48676
Packaging unit
56
Tender Texts
Installation example
water-bound road surfaces class A 15,
Asphalt class A 15 - B 125,
Pavement class A 15 - B 125,
water-bound road surfaces class A 15 - B 125,
Pavement class A 15 - B 125,
Concrete class A 15 - C 250, Flat channel
Cemented floor class A 15 - C 250,
Pavement class C 250,
Concrete class D 400,
Concrete class C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Installation instructions
