Article No. 10098
RECYFIX PRO 100, class B 125
Type 020 with mesh grating MS 30/10 mm, galvanised, locked, 1.0 m

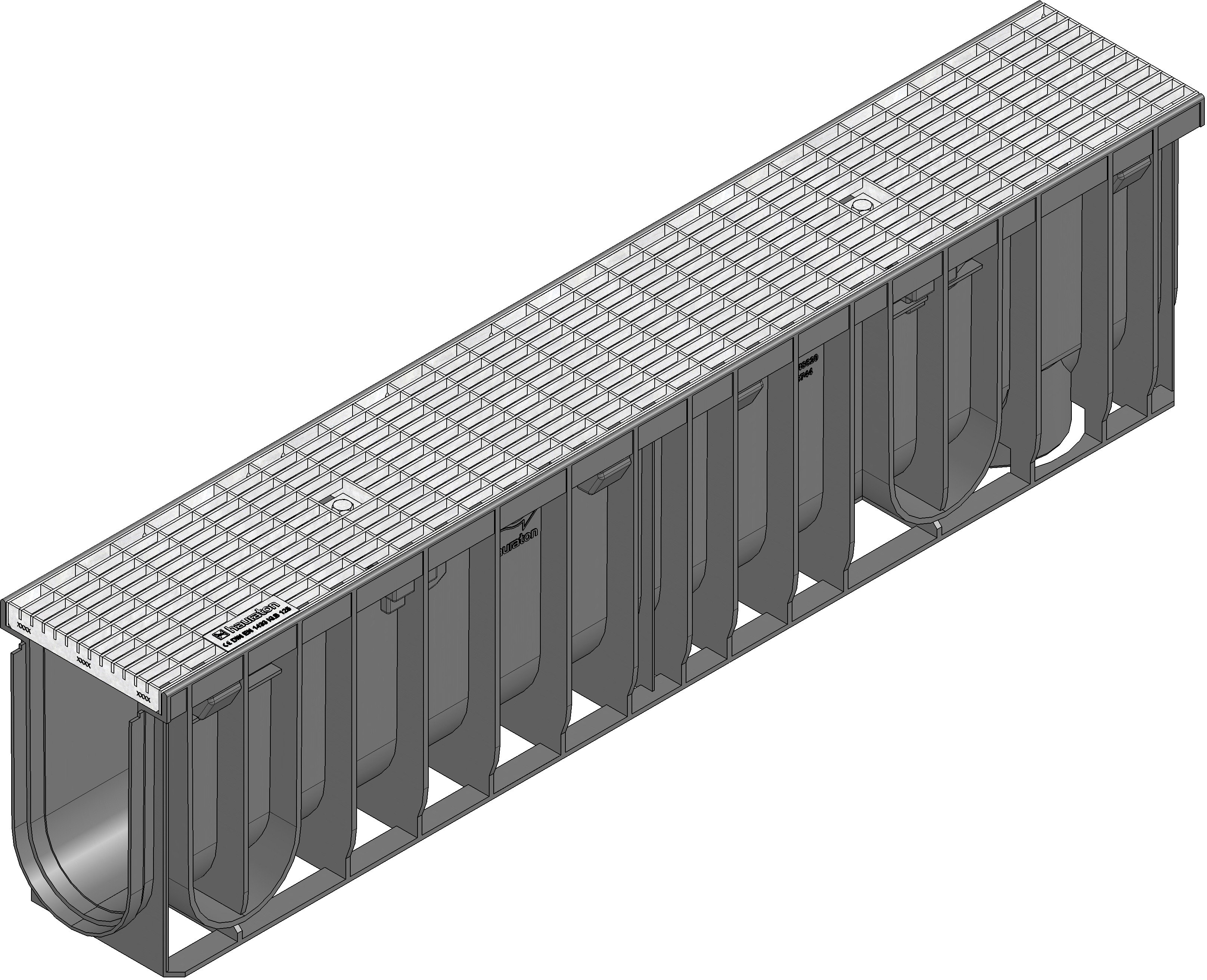

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
10098
Length
1000 mm
Width
160 mm
Height
250 mm
Inlay depth
20 mm
Weight
7.45 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled polypropylene, RECYFIX Material (recycled PA)
Intake cross-section
1099.0 cm²/m
Nominal size
100
Internal channel cross-section
192 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Channel type 020 with integrated edge frames, with mesh grating MS 30/10 mm, galvanised, cl. B 125, locked, 1 m
Product description
RECYFIX PRO 100 type 020 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 110, with mesh grating MS 30/10 mm, made of galvanised steel, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 1000x160x250 mm, item no. 10098
Packaging unit
28
Tender Texts
Installation example
water-bound road surfaces class A 15,
Asphalt class A 15 - B 125,
Pavement class A 15 - B 125,
water-bound road surfaces class A 15 - B 125,
Pavement class A 15 - B 125,
Concrete class A 15 - C 250, Flat channel
Cemented floor class A 15 - C 250,
Pavement class C 250,
Concrete class D 400,
Concrete class C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Installation instructions
