Article No. 47080
RECYFIX PRO 100, class B 125
Type 010 with mesh grating MS 30/10 mm, stainless steel, locked, 0.5 m

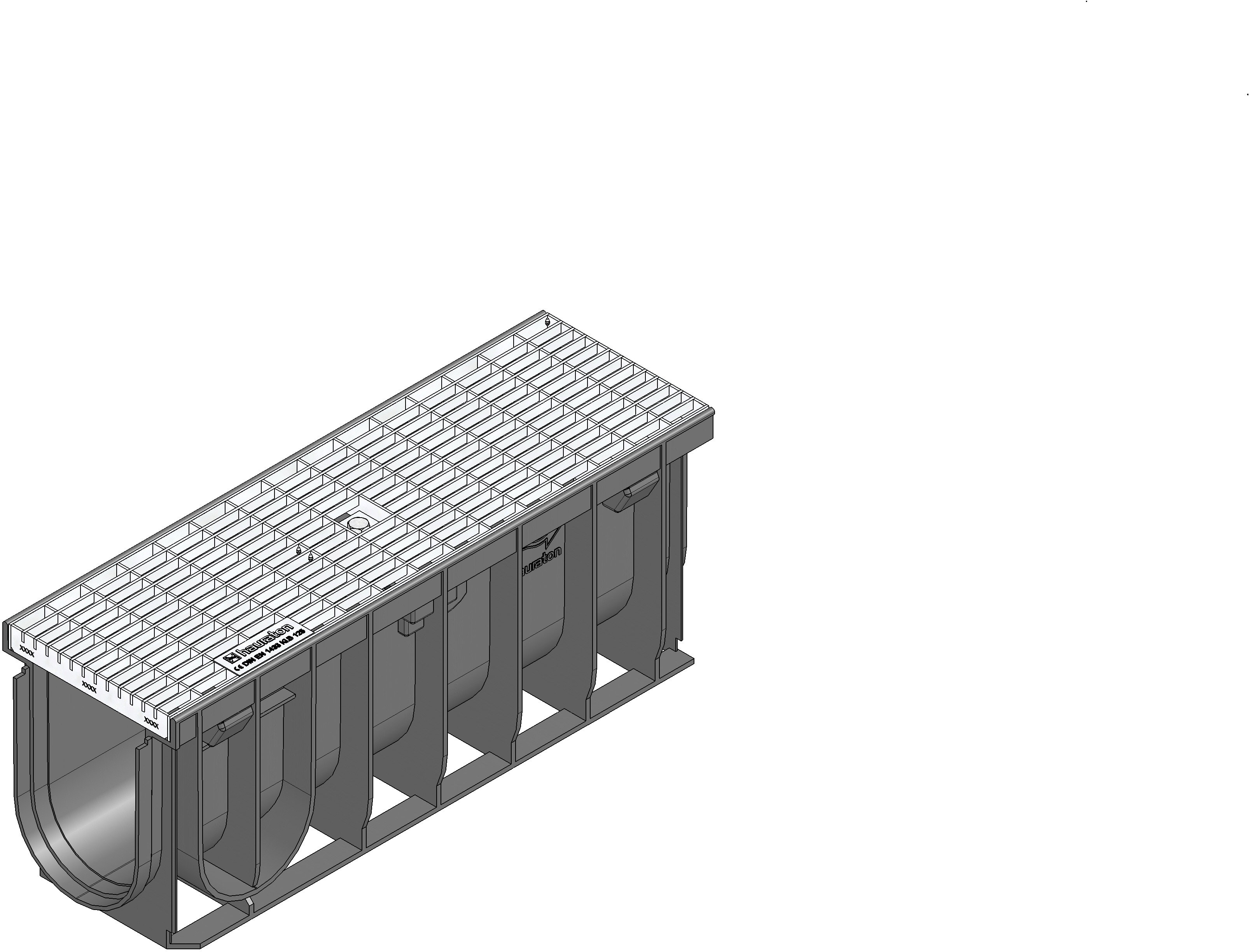

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
47080
Length
500 mm
Width
160 mm
Height
200 mm
Inlay depth
20 mm
Weight
3.16 kg
Material
hot-dip galvanised steel, recycled polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
1080.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Channel type 010 with integrated edge frames, with mesh grating MS 30/10 mm, stainless steel, cl. B 125, locked, 0.5 m
Product description
RECYFIX PRO 100 type 010 - Channel body made of recycled polypropylene, with integrated edge frames, with mesh grating MS 30/10 mm, stainless steel CNS 1.4301, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 500x160x200 mm, item no. 47080
Packaging unit
70
Tender Texts
Installation example
water-bound road surfaces class A 15,
Asphalt class A 15 - B 125,
Pavement class A 15 - B 125,
water-bound road surfaces class A 15 - B 125,
Pavement class A 15 - B 125,
Concrete class A 15 - C 250, Flat channel
Cemented floor class A 15 - C 250,
Pavement class C 250,
Concrete class D 400,
Concrete class C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Installation instructions
