Article No. 47128
RECYFIX PRO 100, class A 15
Type 95 with longitudinal grating, bar distance 10 mm, galvanised, locked, 1.0 m

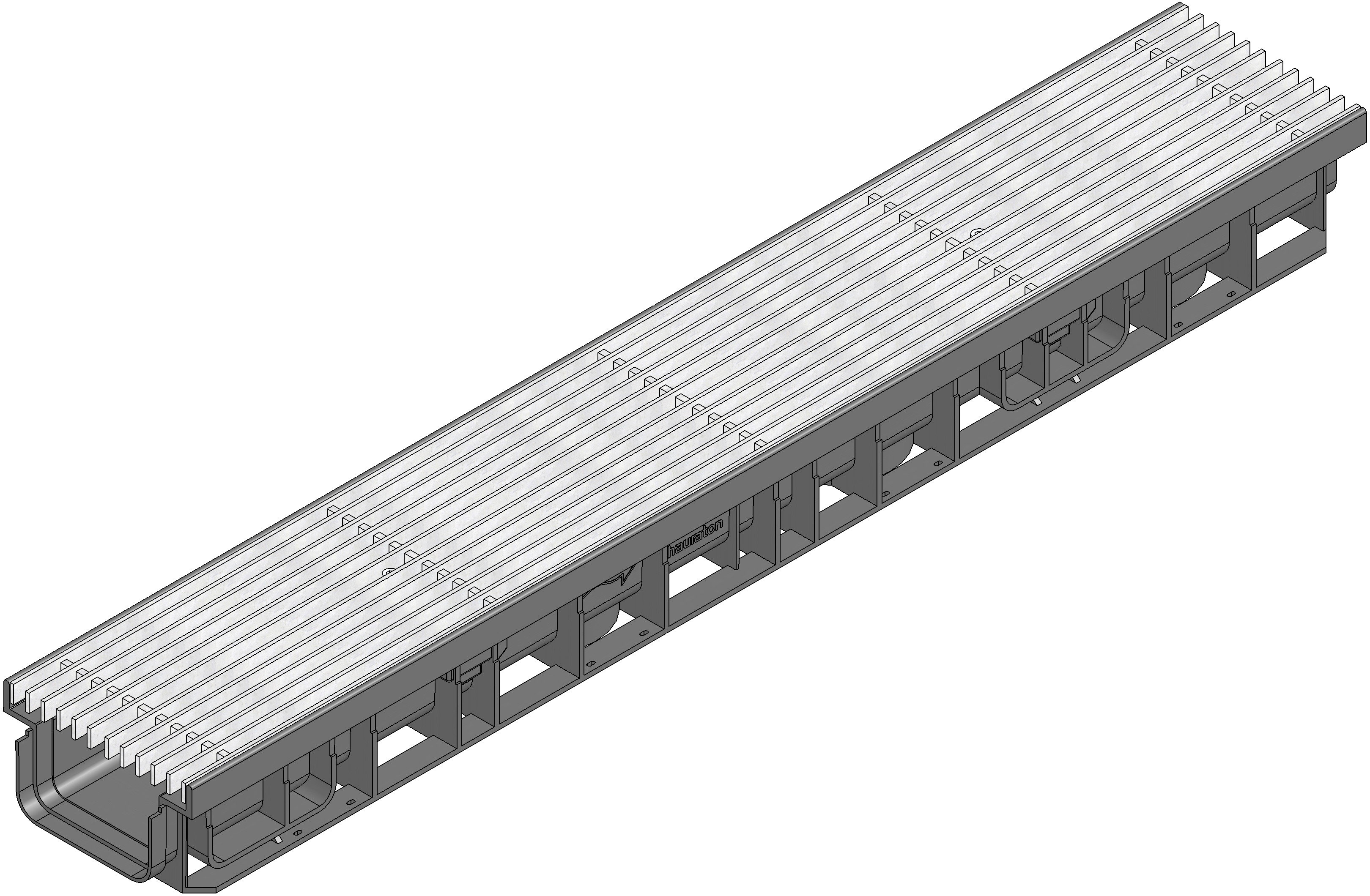

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
47128
Length
1000 mm
Width
160 mm
Height
95 mm
Inlay depth
20 mm
Weight
6.42 kg
Material
hot-dip galvanised steel, recycled polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
1099.0 cm²/m
Nominal size
100
Internal channel cross-section
55 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Channel type 95 with integrated edge frames, with longitudinal grating bar distance 10 mm, galvanised, cl. A 15, locked, 1 m
Product description
RECYFIX PRO 100 type 95 - Channel body made of recycled polypropylene, with integrated edge frames, with vertical connection possibility DN/OD 75, with longitudinal grating bar distance 10 mm, galvanised, with locking, load class A 15 according to EN 1433, LxWxH 1000x160x95 mm, item no. 47128
Packaging unit
77
Tender Texts
Installation example
water-bound road surfaces class A 15,
Asphalt class A 15 - B 125,
Pavement class A 15 - B 125,
water-bound road surfaces class A 15 - B 125,
Pavement class A 15 - B 125,
Concrete class A 15 - C 250, Flat channel
Cemented floor class A 15 - C 250,
Pavement class C 250,
Concrete class D 400,
Concrete class C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Installation instructions
