Article No. 40106
RECYFIX NC 200, class D 400
type 01 with ductile iron grate, SW 198/10 mm in FIBRETEC design, black, 4-fold screwed, 0.5 m

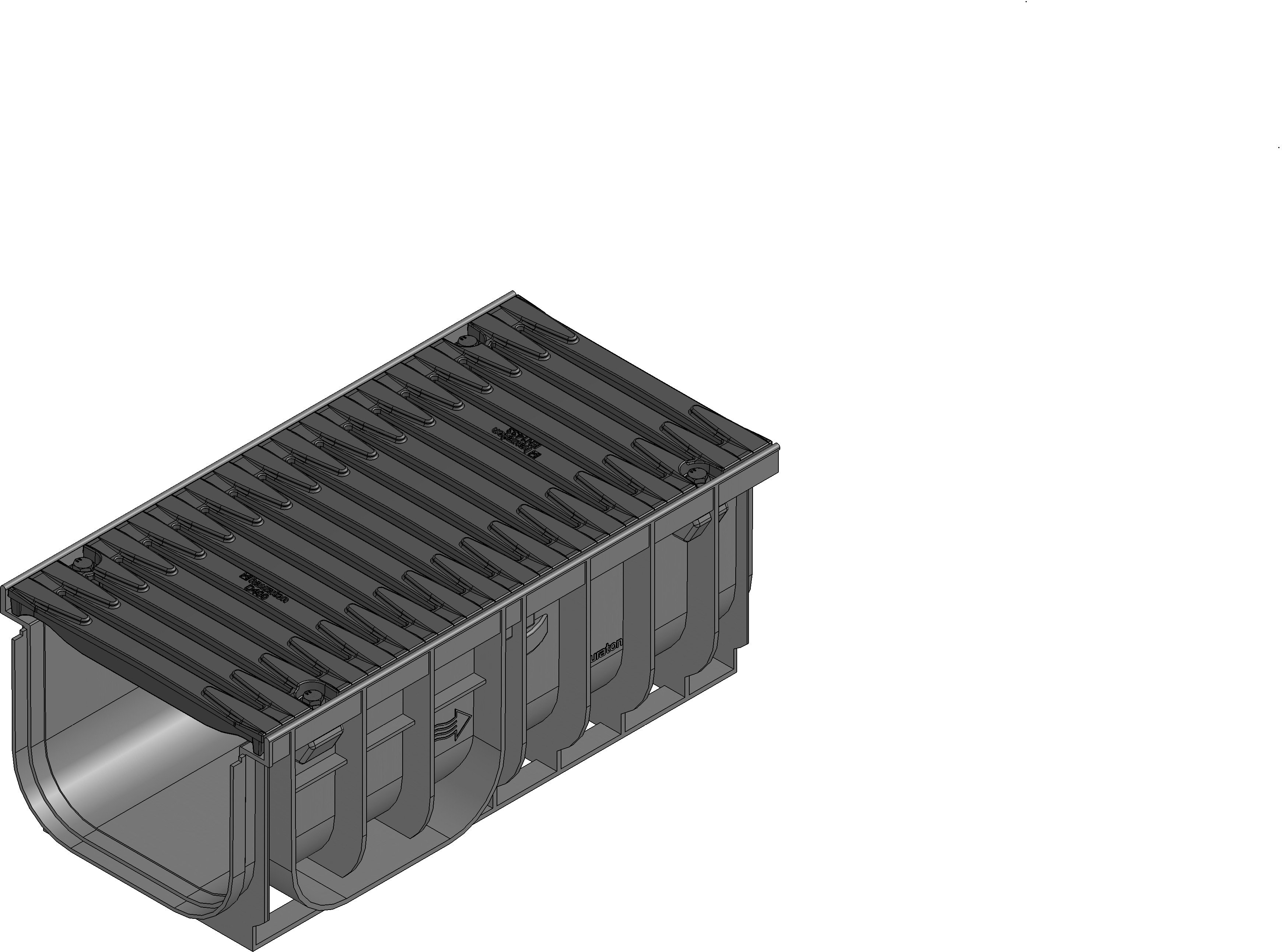

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
40106
Length
500 mm
Width
262 mm
Height
200 mm
Inlay depth
20 mm
Weight
9.80 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, Steel black galvanised
Intake cross-section
572.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX NC 200 Channel type 010 with ductile iron grating SW 198/10 mm in FIBRETEC design, black, cl. D 400, 0.5 m
Product description
RECYFIX NC 200 type 010 - Channel body made of recycled polypropylene, with integrated edge frames, with ductile iron grating slot width 198/10 mm in FIBRETEC design, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, with 4-fold bolting load class A 15 - D 400 according to DIN 19580/EN 1433, LxWxH 500x262x200 mm, item no. 40106
Packaging unit
40
Tender Texts
Installation example
Installation example
Concrete class D 400 - E 600,
Asphalt class D 400 - E 600,
Pavement class D 400,
Installation example
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Concrete class C 250 - D 400, as double strand
Asphalt class C 250 - D 400, as double strand
Concrete class E 600,
Installation instructions
