Article No. 40097

RECYFIX NC 100, class D 400

Type 020 with ductile iron grating SW 110/9 mm in FIBRETEC-design, black, 0.5 m

Project request Tender Texts

Fragen?

Unser erfahrenes Planungsteam hilft Ihnen gerne.

Fragen?

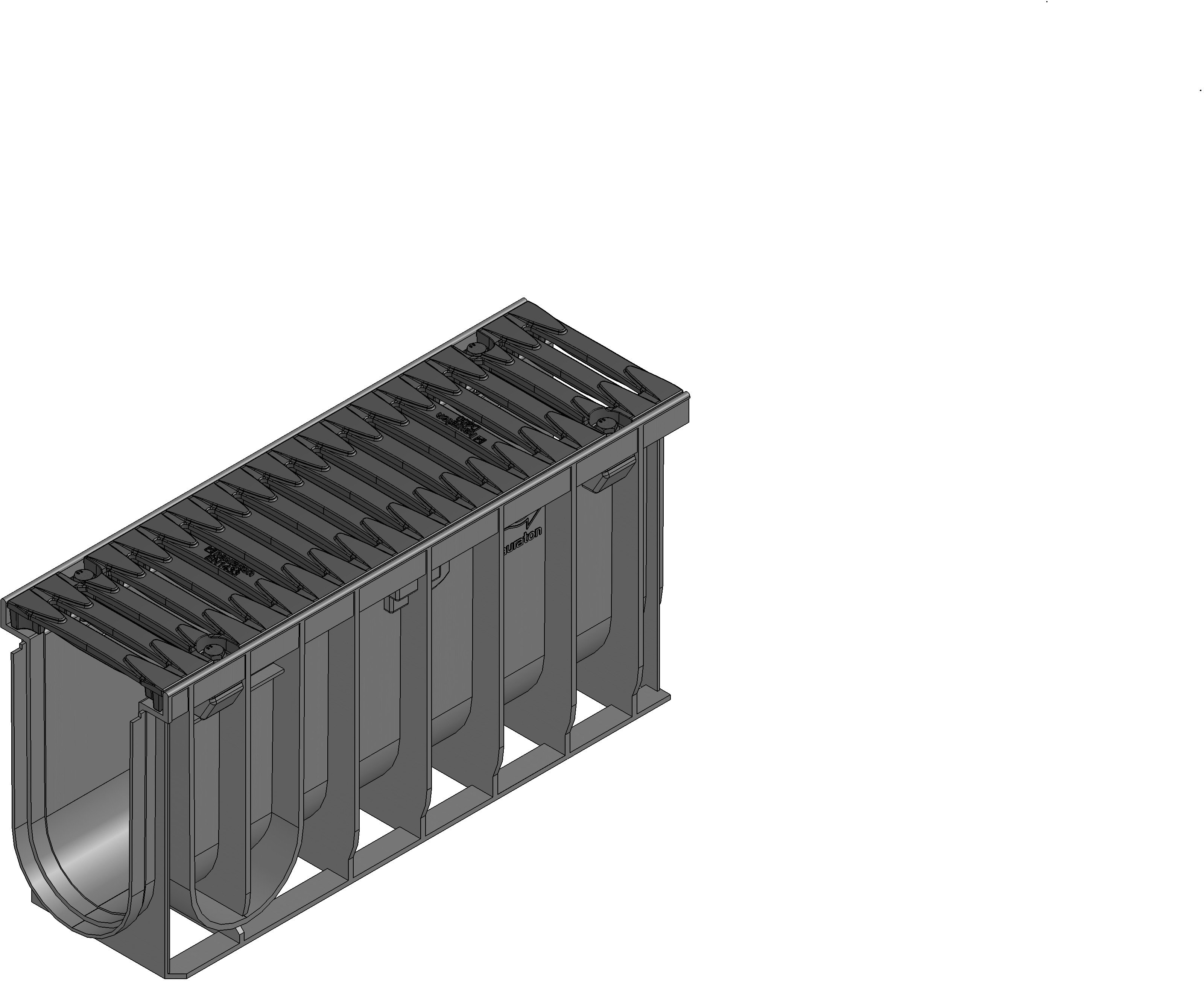

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Technical information and metrics
Article No.
40097
Length
500 mm
Width
160 mm
Height
250 mm
Inlay depth
20 mm
Weight
6.69 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, Steel black galvanised
Intake cross-section
330.0 cm²/m
Nominal size
100
Internal channel cross-section
192 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX NC 100 Channel type 020 with ductile iron grating SW 110/9 mm in FIBRETEC design, black, cl. D 400, 0.5 m
Product description
RECYFIX NC 100 type 020 - Channel body made of recycled polypropylene, with integrated edge frame, with ductile iron grating SW 110/ 9 mm in FIBRETEC design, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection, with 4-fold bolting, load class A 15 - D 400 according to DIN 19580/EN 1433, LxWxH 500x160x250 mm, item no. 40097
Packaging unit
56
