Article No. 40092

RECYFIX NC 100, class D 400

Type 010 with ductile iron grating SW 110/9 mm in FIBRETEC-design, black, 1.0 m

Project request Tender Texts

Fragen?

Unser erfahrenes Planungsteam hilft Ihnen gerne.

Fragen?

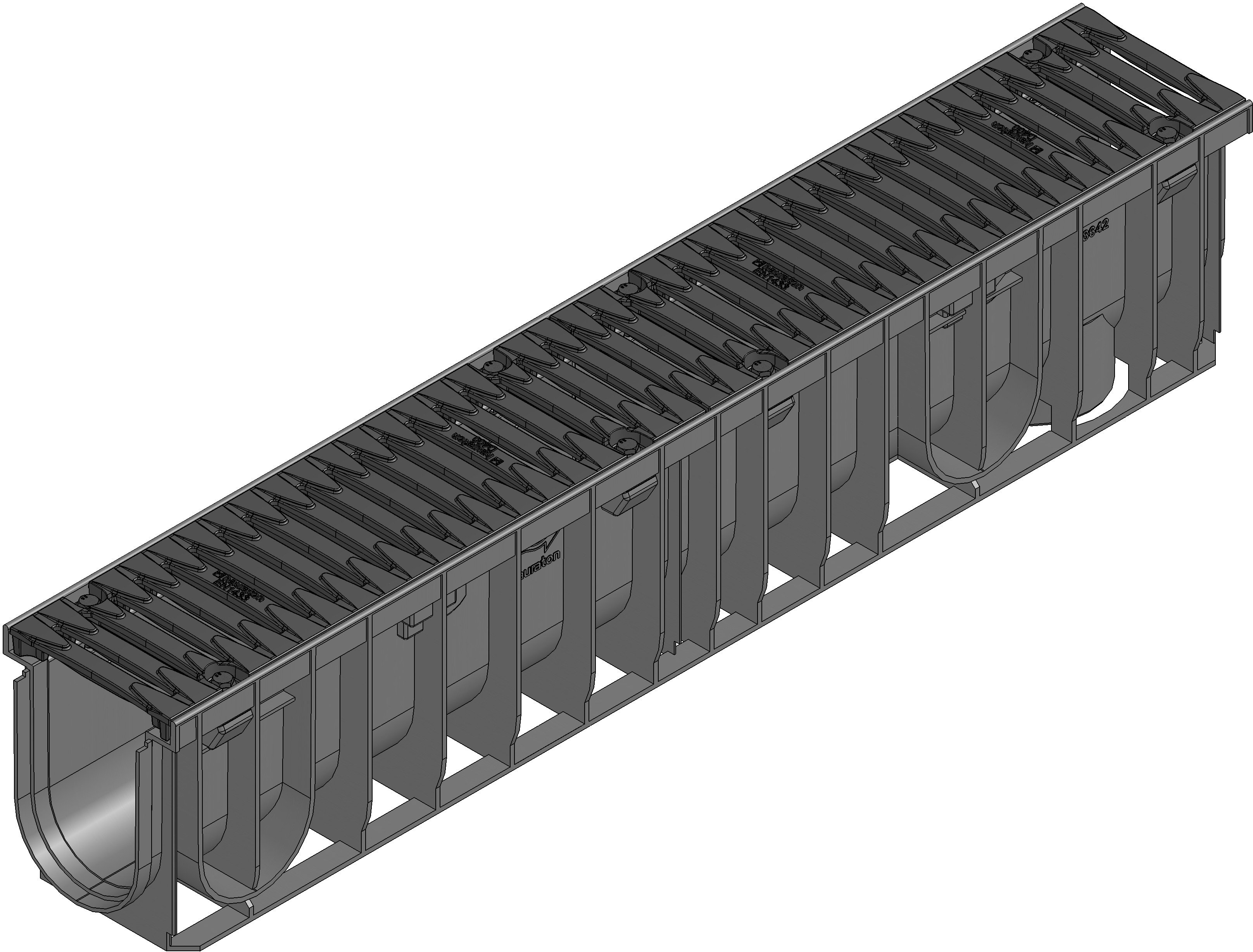

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Top view

Technical information and metrics
Article No.
40092
Length
1000 mm
Width
160 mm
Height
200 mm
Inlay depth
20 mm
Weight
12.66 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, Steel black galvanised
Intake cross-section
330.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX NC 100 Channel type 010 with ductile iron grating SW 110/9 mm in FIBRETEC design, black, cl. D 400, 1 m
Product description
RECYFIX NC 100 type 010 - Channel body made of recycled polypropylene, with integrated edge frame, with vertical connection possibility DN/OD 110, with ductile iron grating SW 110/9 mm in FIBRETEC design, made of spheroidal ductile iron EN-GJS-500-7, black , with longitudinal slide protection, with 8-fold bolting, load class A 15 - D 400 according to DIN 19580/EN 1433, LxWxH 1000x160x200 mm, item no. 40092
Packaging unit
35
