Article No. 40089

RECYFIX NC 100, class D 400

Type 01 with ductile iron grating SW 110/9 mm in FIBRETEC design, black, 1.0 m

Project request Tender Texts

Fragen?

Unser erfahrenes Planungsteam hilft Ihnen gerne.

Fragen?

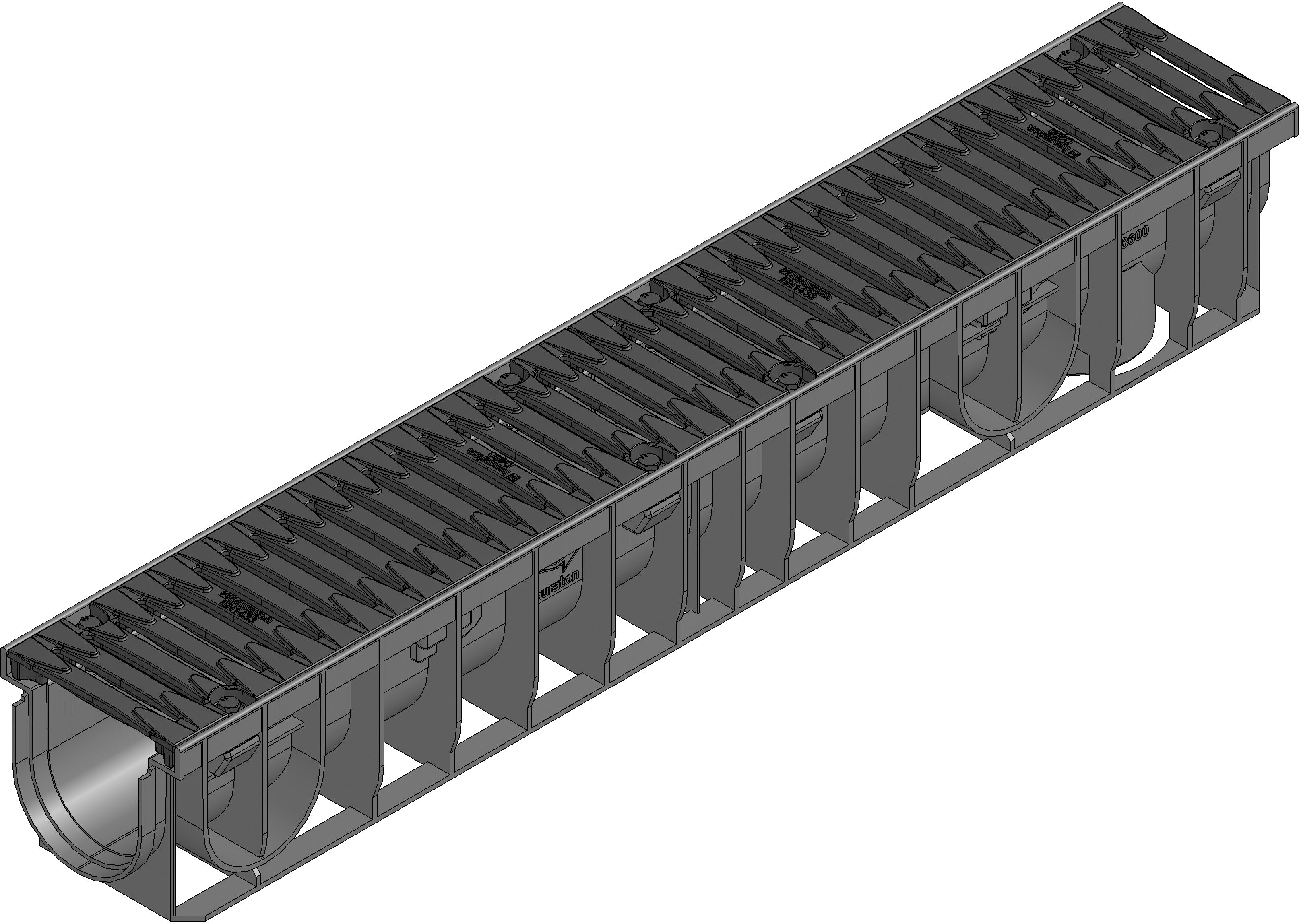

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Top view

Technical information and metrics
Article No.
40089
Length
1000 mm
Width
160 mm
Height
150 mm
Inlay depth
20 mm
Weight
11.85 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, Steel black galvanised
Intake cross-section
330.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX NC 100 Channel type 01 with ductile iron grating SW 110/9 mm in FIBRETEC design, black, cl. D 400, 1 m
Product description
RECYFIX NC 100 type 01 - Channel body made of recycled polypropylene, with integrated edge frame, with vertical connection possibility DN/OD 110, with ductile iron grating SW 110/9 mm in FIBRETEC design, made of spheroidal ductile iron EN-GJS-500-7, black , with longitudinal slide protection, with 8-fold bolting, load class A 15 - D 400 according to DIN 19580/EN 1433, LxWxH 1000x160x150 mm, item no. 40089
Packaging unit
49
