Article No. 10466
RECYFIX MONOTEC ULTRA 200, up to load class F 900
Type 020, with permanently integrated ductile iron grating 2x SW 75/18 mm, black, 1.0 m

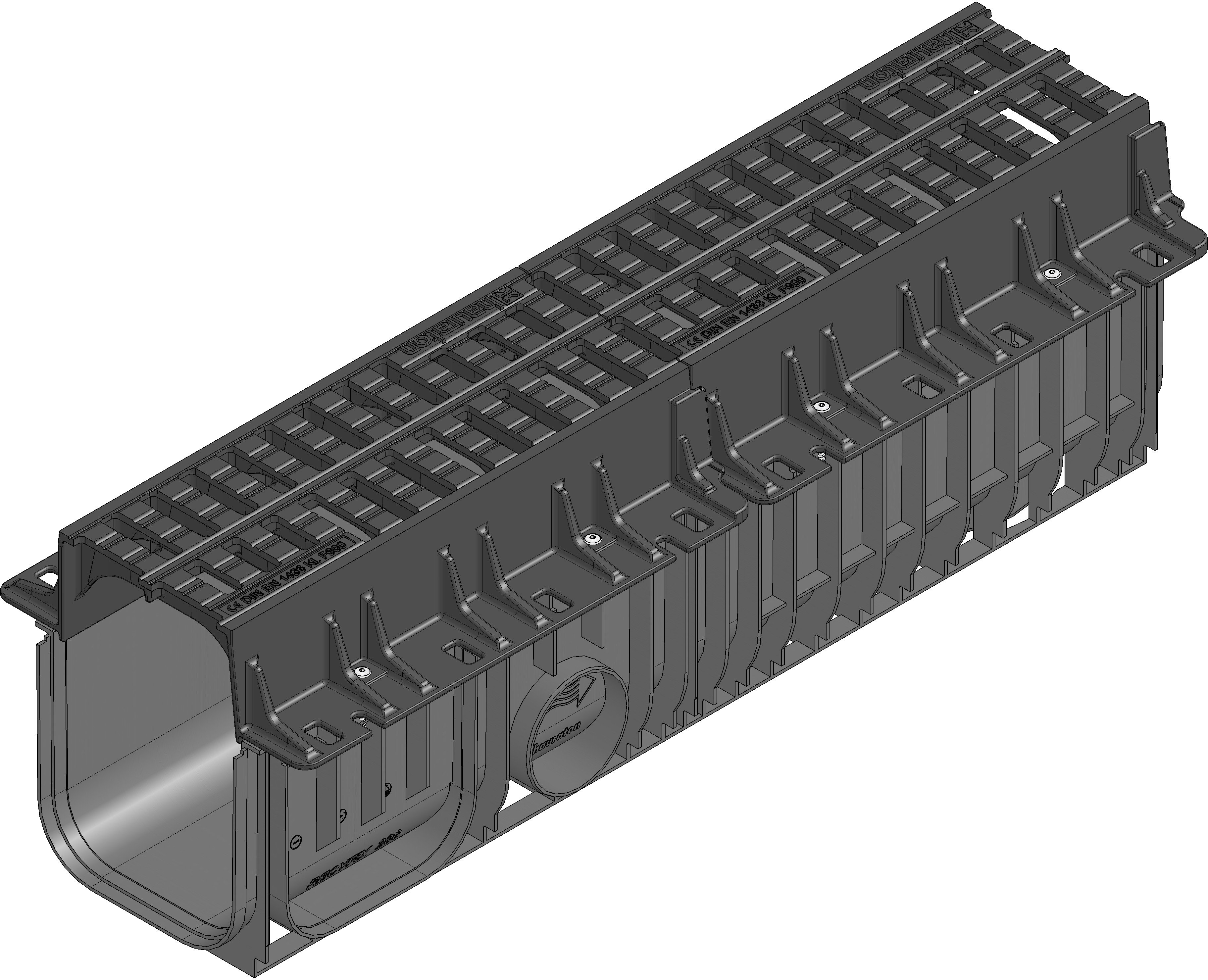

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10466
Length
1000 mm
Width
340 mm
Height
331 mm
Weight
33.04 kg
Material
Ductile iron GJS 500-7, recycled polypropylene
Height of angle housing
28 mm
Intake cross-section
580.0 cm²/m
Nominal size
200
Internal channel cross-section
511 cm²
Fall
-
Type according to DIN EN 1433
M
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX MONOTEC ULTRA 200 type 020 with permanently integrated ductile iron grating 2x SW 75/18 mm, black, cl. F 900, 1 m
Product description
RECYFIX MONOTEC ULTRA 200 type 020 - Monolithic channel, consists of channel body made of recycled polypropylene and permanently integrated ductile iron grating, made of spheroidal ductile iron EN-GJS-500-7, 2x SW 75/18 mm, black, according to EN 1433, with lateral (DN/OD 110) and vertical (DN/OD 110/160) connection possibility, load class A 15 - F 900 according to EN 1433, LxWxH 1000x340x331 mm, item no. 10466
Packaging unit
12
Tender Texts
Installation example
Asphalt class F 900,
Concrete class F 900,
