Article No. 13783
RECYFIX HICAP F 8000 up to load class F 900
Access element, for system size 8200 with ductile iron grating SW 150/20 mm, KTL-coated, 1.0 m

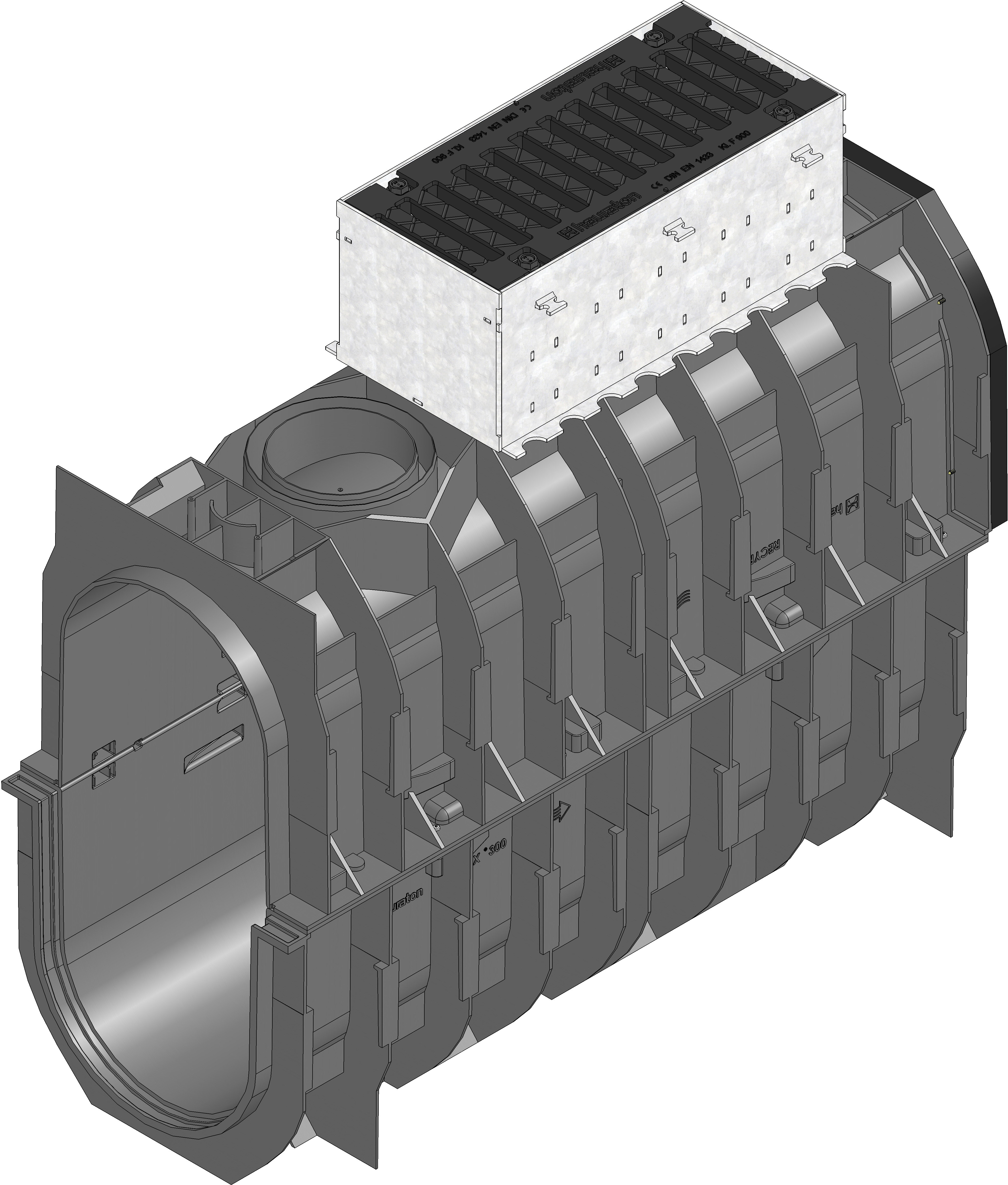

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
13783
Length
1000 mm
Width
420 mm
Height
950 mm
Weight
48.00 kg
Material
Ductile iron GJS 500-7, Galvanised steel, Stainless steel (V2A), Steel 8.8 zinc-laminated black
Intake cross-section
710.0 cm²/m
Nominal size
8000
Type according to DIN EN 1433
M
Material grating
Ductile iron GJS 500-7
Regulations
DIN 19580
Sales text
Access unit with ductile iron grating, SW 150/20 mm, KTL-coated, cl. F 900, RECYFIX HICAP 8200, 1 m
Product description
RECYFIX HICAP 8200 Access unit, according to EN 1433, CE compliant, consists of channel body made of recycled polypropylene, and top element, height 200 mm, made of galvanised steel, with ductile iron grating SW 150/20 mm made of spheroidal ductile iron EN-GJS-500 -7, KTL-coated, 4-fold locking, load class A 15 - F 900 according to EN 1433, length 1000 mm, item no. 13783
Packaging unit
-
Tender Texts
Installation example
Pavement class A 15 - C 250,
Concrete class A 15 - E 600,
Asphalt class A 15 - E 600,
Asphalt class F 900,
Concrete class F 900,
Asphalt class D 400 - E 600, Inspection element
Concrete class D 400 - E 600, Inspection element
Asphalt class F 900, Inspection element
Asphalt class F 900, Inspection element
Concrete class F 900, Inspection element
Concrete class F 900, Inspection element
