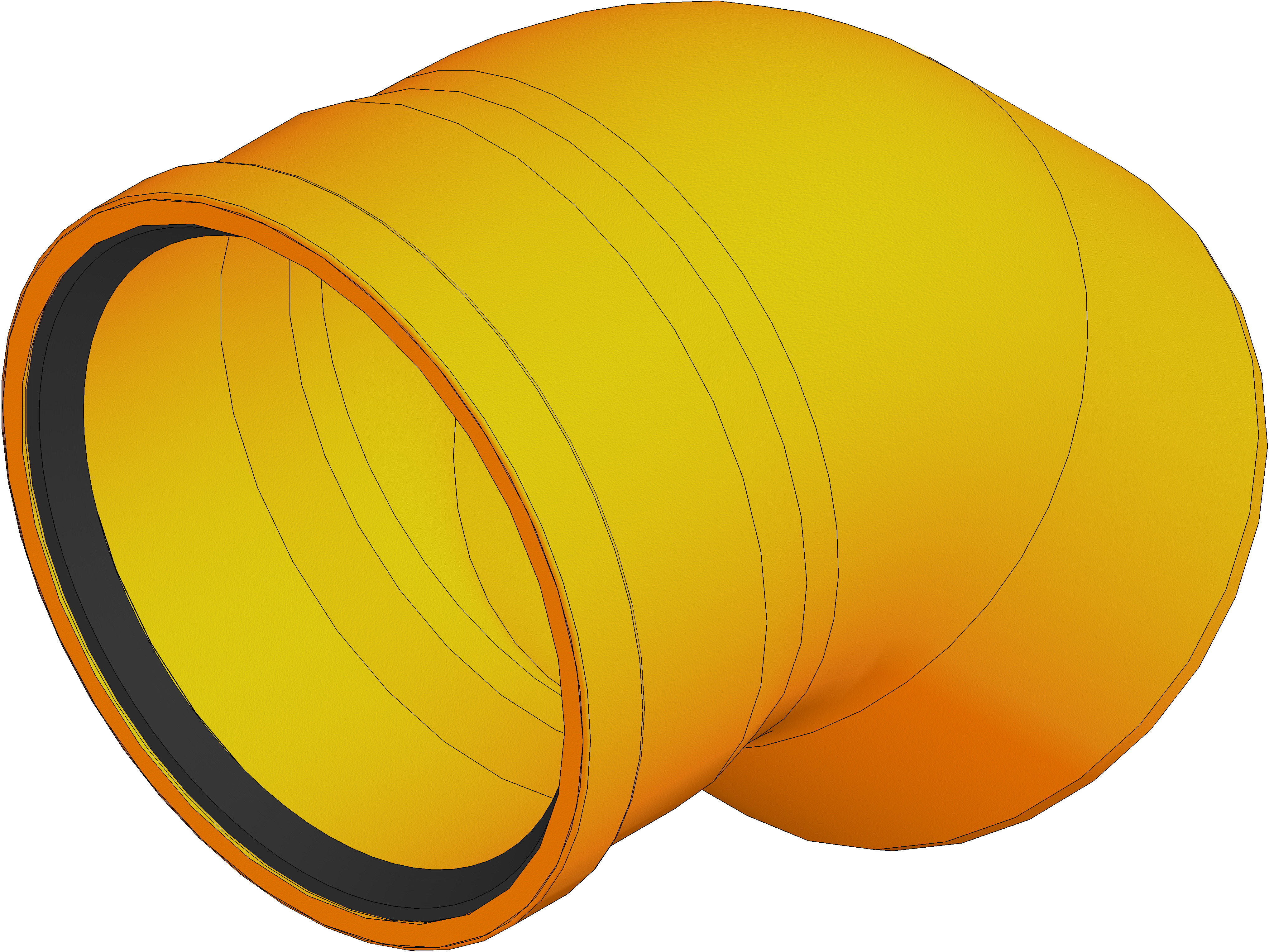

Product image
Technical drawing
Drawing (CAD)
Technical information and metrics
Article No.
33298
Length
323 mm
Width
200 mm
Height
285 mm
Weight
1.16 kg
Material
PVC-U
Nominal size
150, 200, 300
Sales text
PVC-U Pipe bend DN/OD 200, 45°, with short socket, for RECYFIX-channels nominal width 300 mm and sump units nominal width 150 and 200 mm
Product description
PVC-U pipe bend DN/OD 200, 45°, with short socket, for connection of preform for pipe connection in the channel base with PVC-U pipes, can be used for RECYFIX channels up to nominal width 300 mm and sump units nominal width 200 mm, item no. 33298
Packaging unit
-
