Technical information and metrics
Article No.
33066
Length
256 mm
Width
160 mm
Height
229 mm
Weight
0.30 kg
Material
PVC-U
Nominal size
100, 150, 200, 300
Sales text

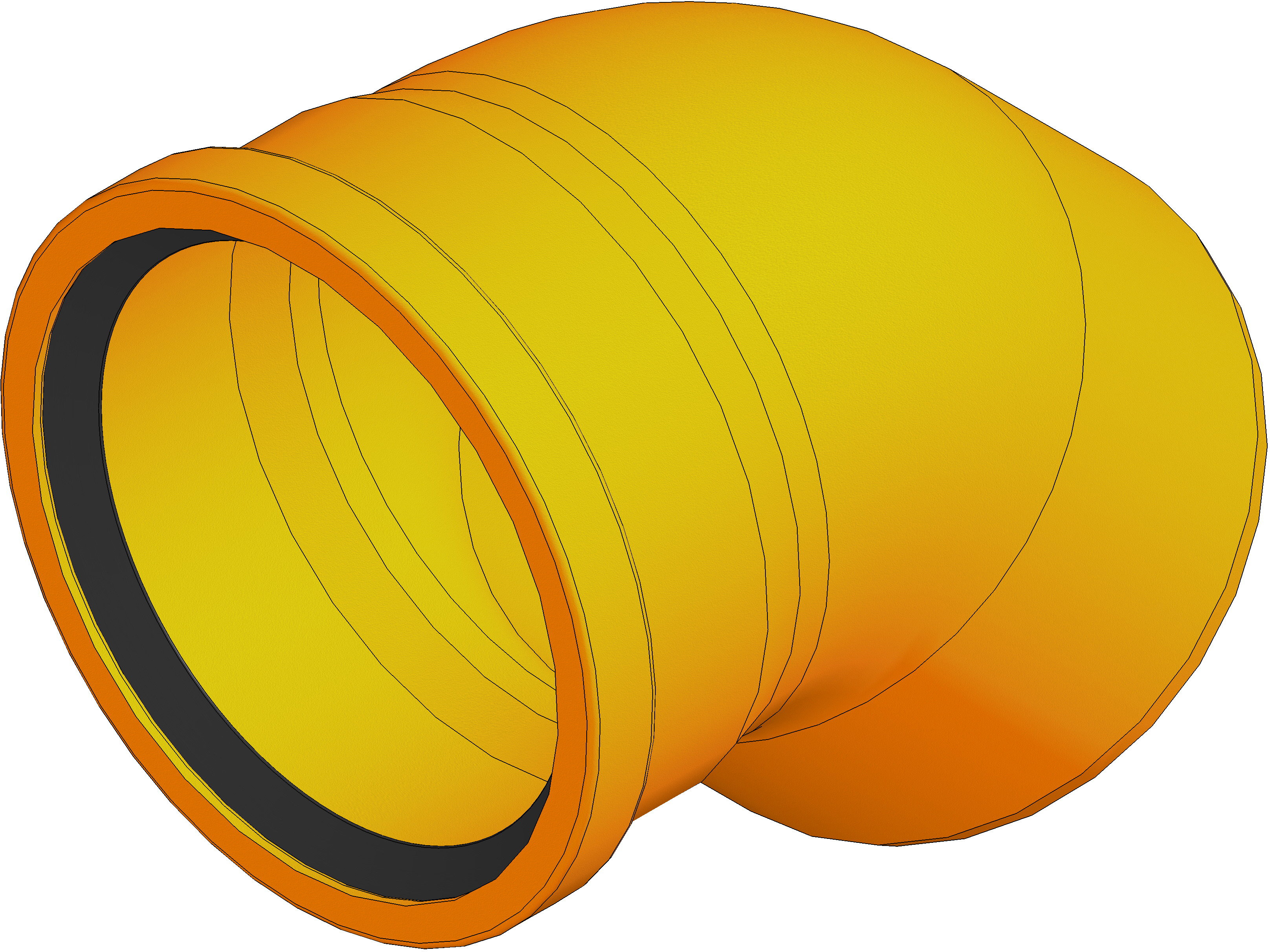

PVC-U Pipe bend DN/OD 160, 45°, with short socket, for RECYFIX-channels from nominal width 150 mm and sump units nominal width 100 mm
Product description
PVC-U pipe bend DN/OD 160, 45°, with short socket, for connection of preform for pipe connection in the channel base with PVC-U pipes, can be used for RECYFIX channels up to nominal width 150 mm and sump units nominal width 100 mm, item no. 33066
Packaging unit
-
