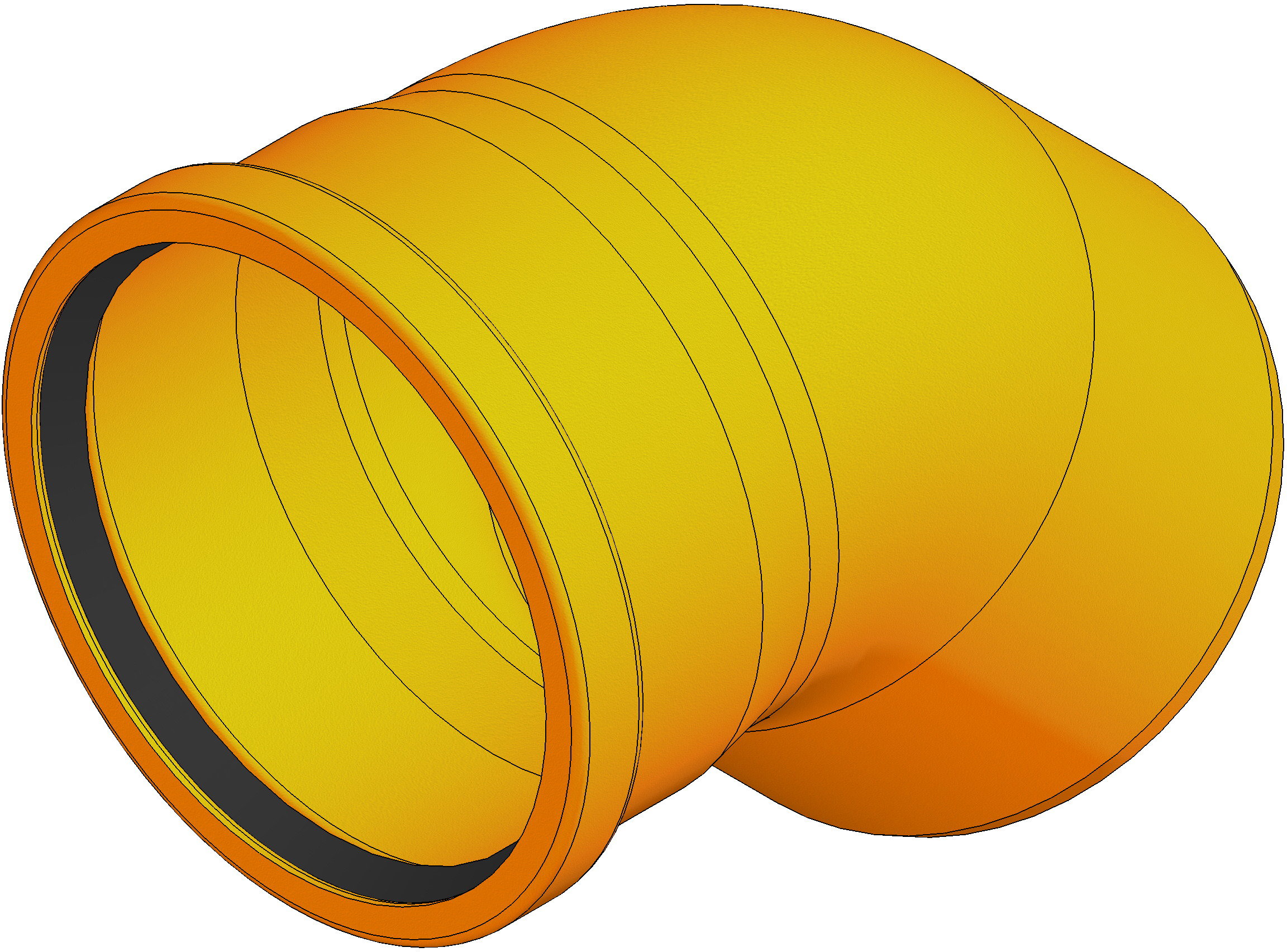

Product image
Technical drawing
Drawing (CAD)
Technical information and metrics
Article No.
1022
Length
186 mm
Width
110 mm
Height
160 mm
Weight
0.24 kg
Material
PVC-U
Nominal size
100, 150, 200
Sales text
PVC-U Pipe bend DN/OD 110 45°, with short socket, for RECYFIX-Channels up to nominal width 200 mm and sump units nominal width 100 mm
Product description
PVC-U pipe bend DN/OD 110, 45°, with short socket, for connection of preform for pipe connection in the channel base with PVC-U pipes, can be used for RECYFIX channels up to nominal width 200 mm and sump units nominal width 100 mm, item no. 1022
