Article No. 40111
Permeable Pavement Grid
RECYFIX GRID SUPER 39/39, black

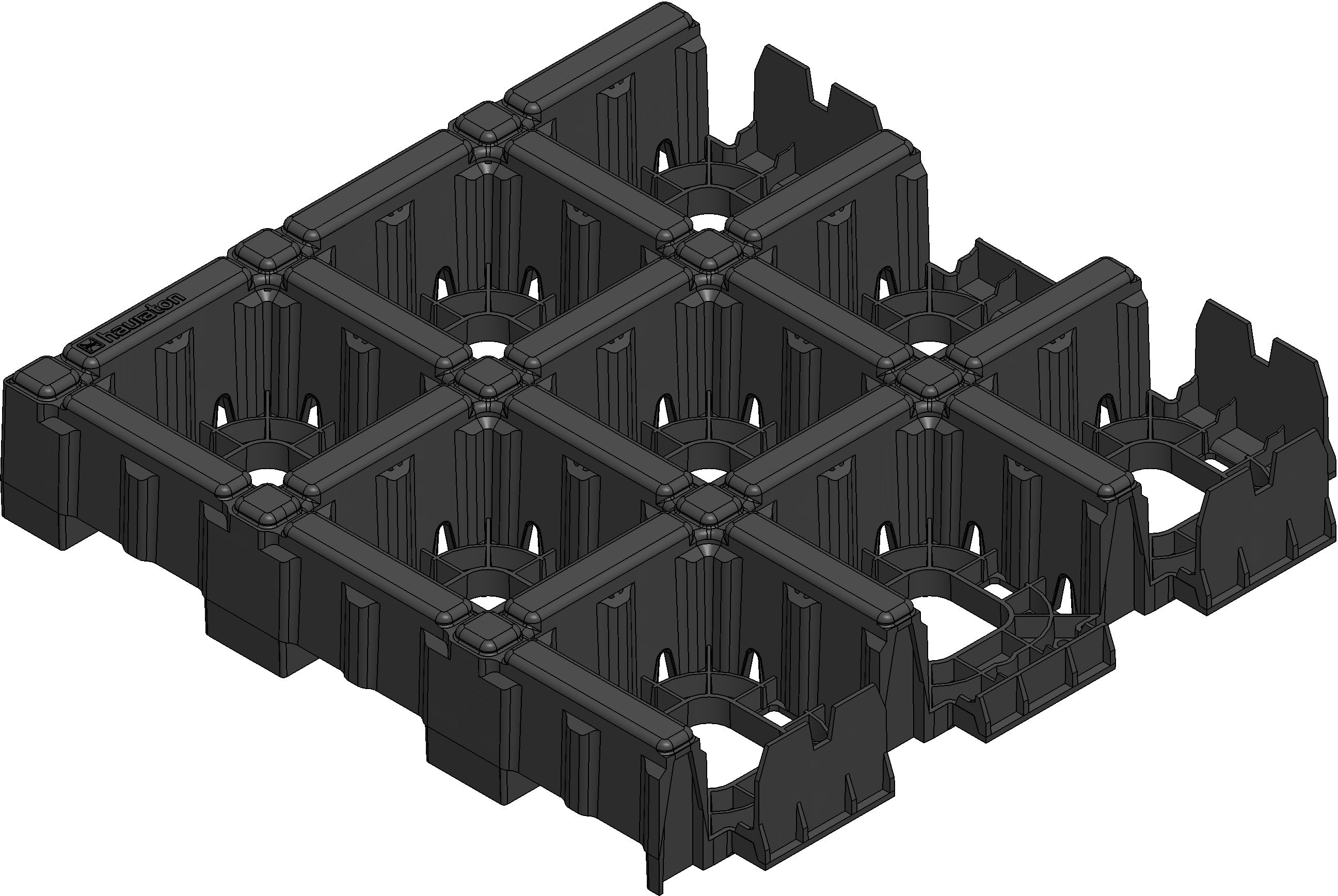

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
40111
Length
390 mm
Width
390 mm
Height
72 mm
Weight
1.40 kg
Material
recycled polypropylene
Sales text
RECYFIX GRID SUPER 39/39 - Permeable Pavement Grid, black
Product description
RECYFIX GRID SUPER 39/39 - Permeable Pavement Grid, made of recycled polypropylene, tested surface load up to max. 800 to/m², with joint connection technique, demand: approx. 6.6 pieces/m², colour black, LxWxH approx. 390x390x72 mm, item no. 40111
Packaging unit
-
Tender Texts
Installation instructions

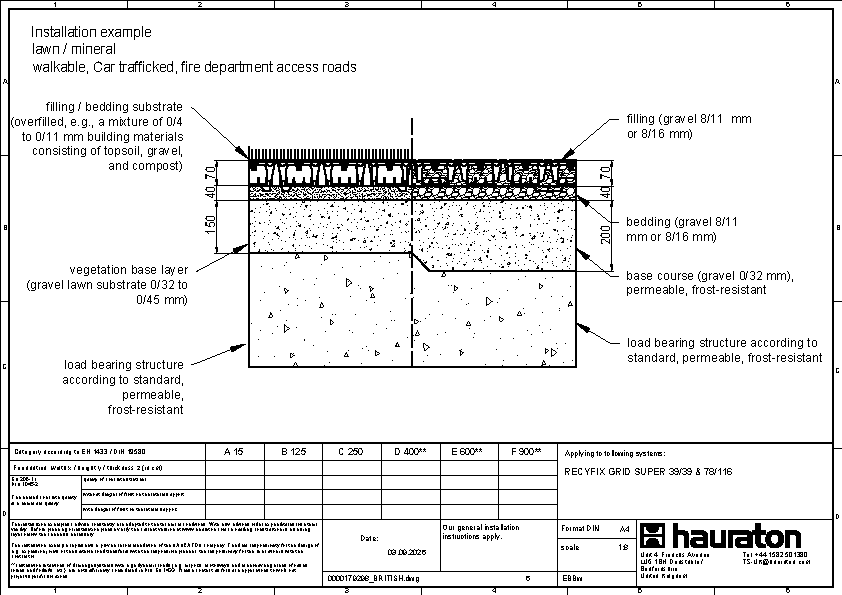

Installation example

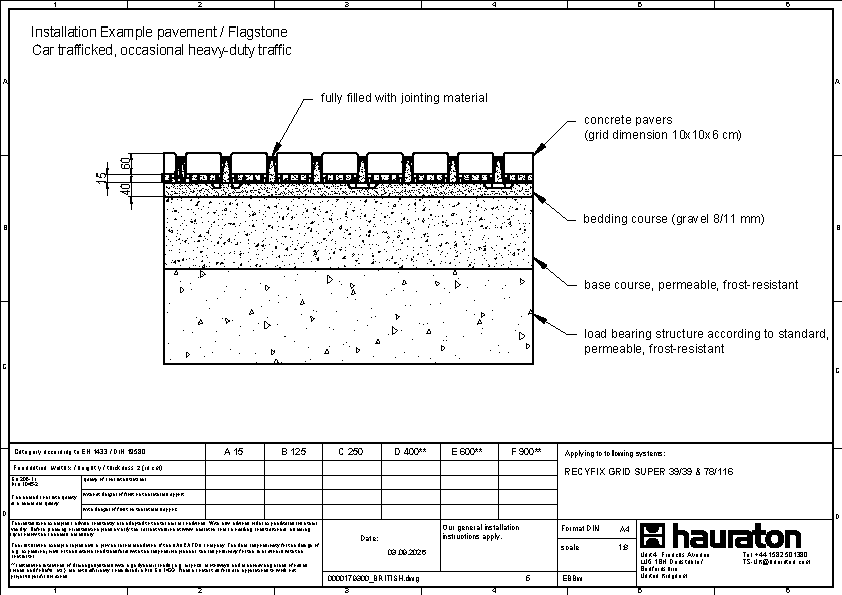

Installation example
Installation example
