Article No. 12571
FASERFIX KS 200, class E 600
Mesh grating MS 11/30 mm, stainless steel, 1.0 m

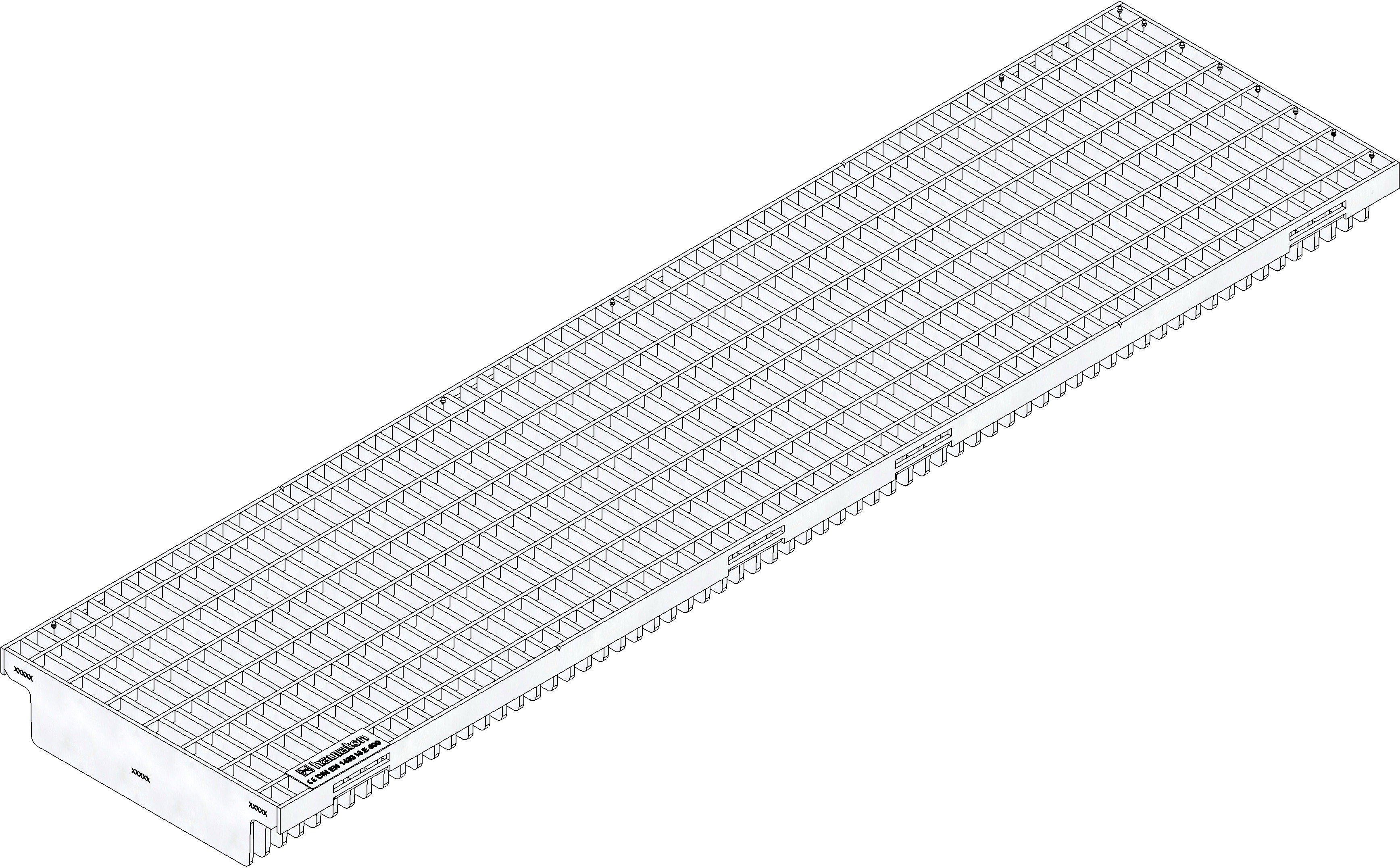

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
12571
Length
1000 mm
Width
249 mm
Height
61 mm
Inlay depth
20 mm
Weight
29.70 kg
Material
Stainless steel 1.4301
Intake cross-section
1600.0 cm²/m
Nominal size
200
Inlet opening
11 x 30 mm
Fixing type
SIDE-LOCK
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MS 11/30 mm, stainless steel, cl. E 600, FASERFIX KS 200, 1 m
Product description
FASERFIX KS 200 - Mesh grating MS 11/30 mm, stainless steel CNS 1.4301, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 8-fold locking, installation length 1000 mm, item no. 12571
Packaging unit
35
