Article No. 33262
FASERFIX KS 200, class C 250
Mesh grating MS 30/10 mm, stainless steel V4A, 0.5 m
Product image

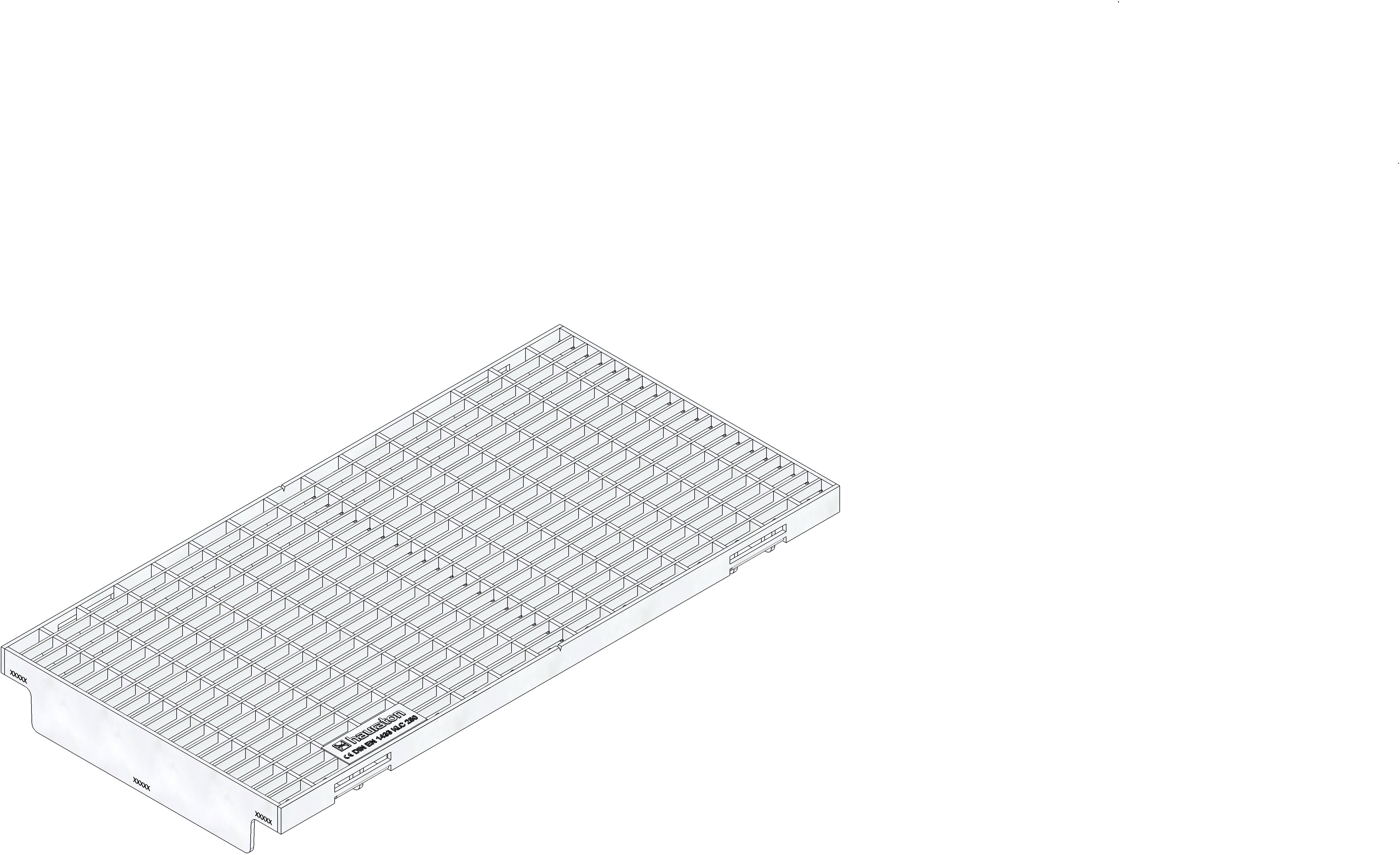

Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
33262
Length
500 mm
Width
249 mm
Height
51 mm
Inlay depth
20 mm
Weight
5.59 kg
Material
Stainless steel 1.4404
Intake cross-section
1825.0 cm²/m
Nominal size
200
Inlet opening
30 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Stainless steel 1.4404
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MS 30/10 mm, stainless steel V4A, cl. C 250, FASERFIX KS 200, 0.5 m
Product description
FASERFIX KS 200 - Mesh grating MS 30/10 mm, stainless steel CNS 1.4404, with longitudinal slide protection, load class A 15 - C 250 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no.33262
Packaging unit
200
