Article No. 11572
FASERFIX KS 150, class E 600
Mesh grating MS 11/30 mm, stainless steel, 0.5 m
Product image

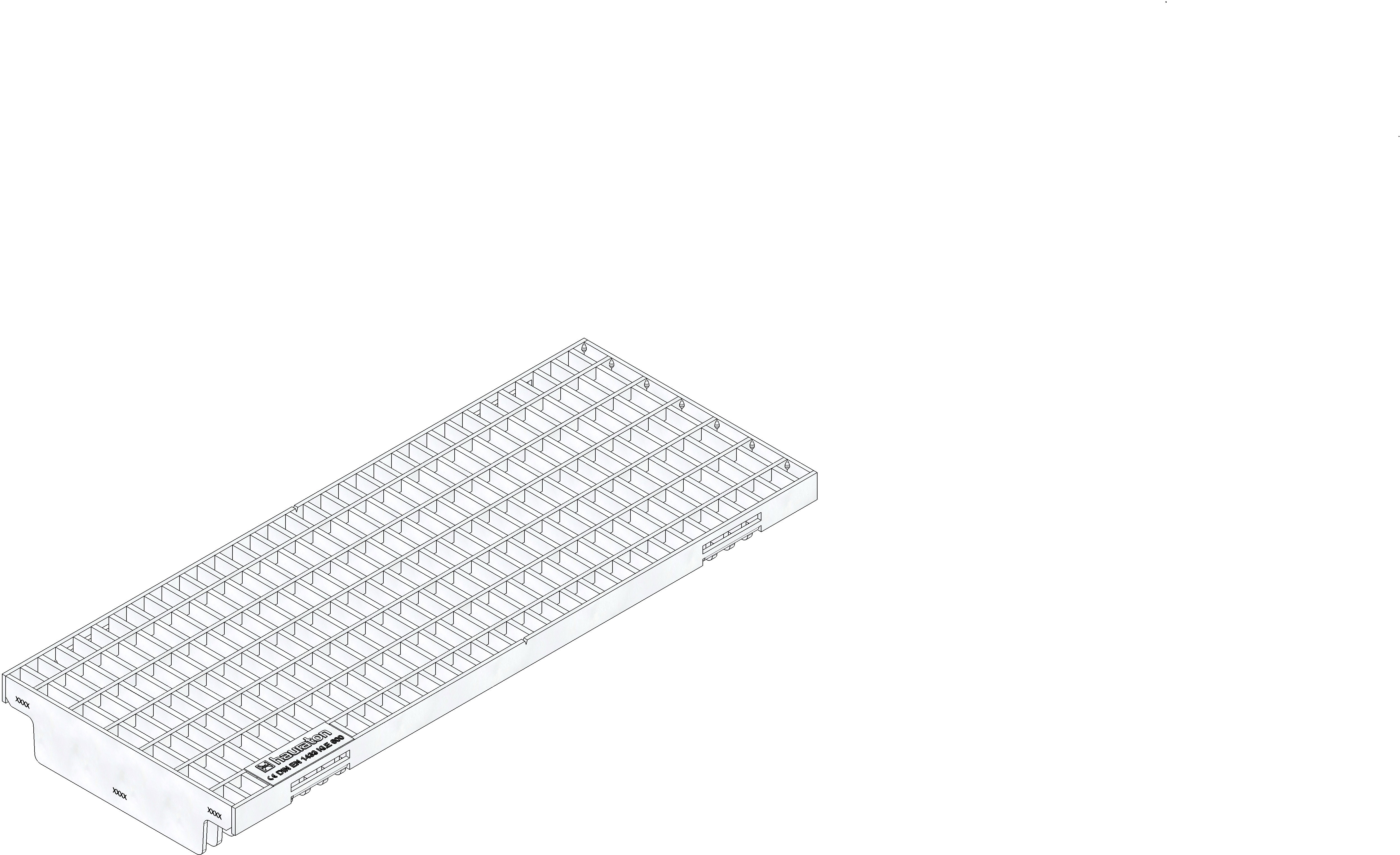

Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
11572
Length
500 mm
Width
199 mm
Height
51 mm
Inlay depth
20 mm
Weight
11.00 kg
Material
Stainless steel 1.4301
Intake cross-section
1249.0 cm²/m
Nominal size
150
Inlet opening
11 x 30 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MS 11/30 mm, stainless steel, cl. E 600, FASERFIX KS 150, 0.5 m
Product description
FASERFIX KS 150 - Mesh grating MS 11/30 mm, stainless steel CNS 1.4301, with longitudinal slide protection, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 11572
Packaging unit
200
