Article No. 28072
FASERFIX KS 100, class E 600
Mesh grating MS 11/30 mm, galvanised, 0.5 m

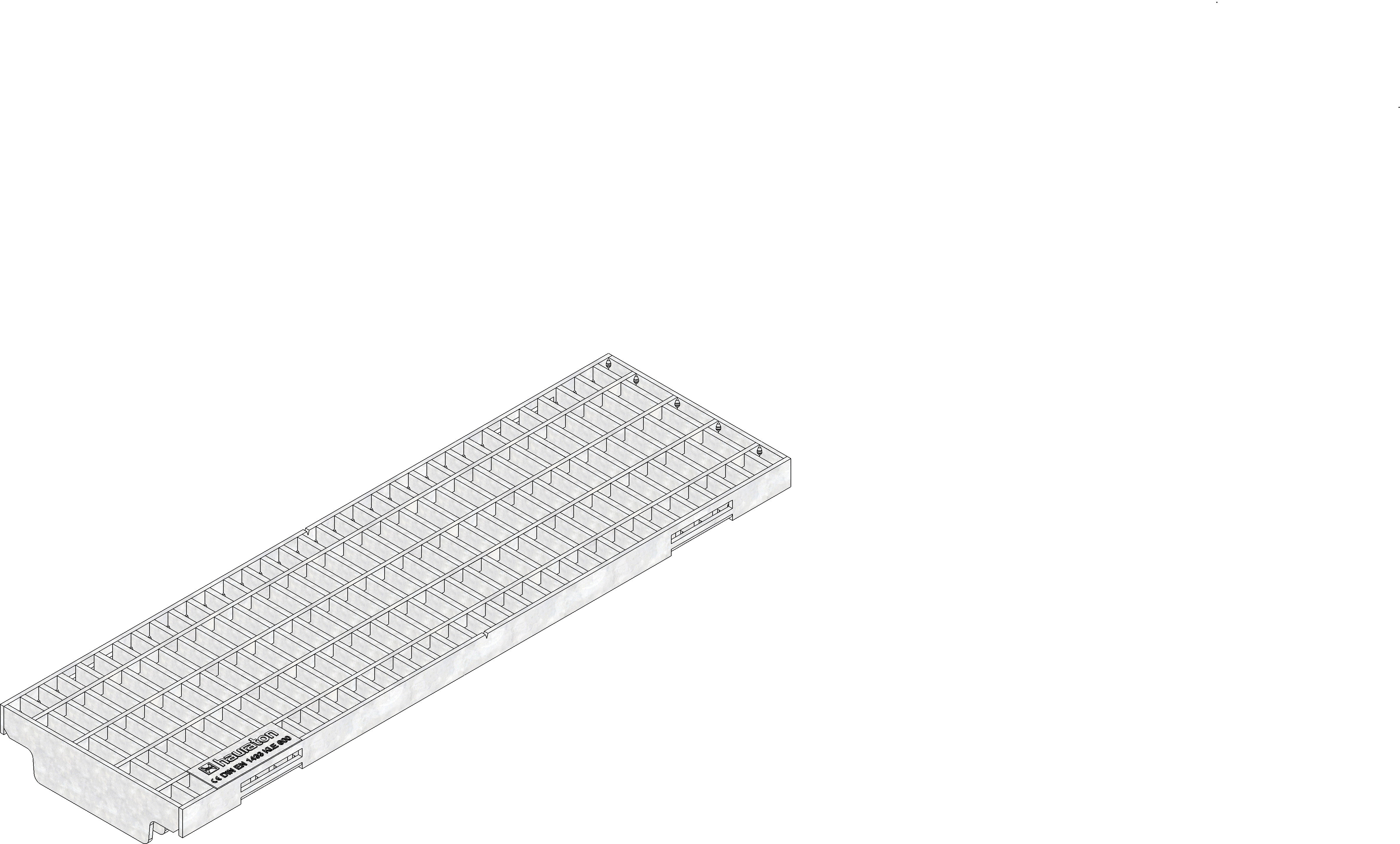

Product image

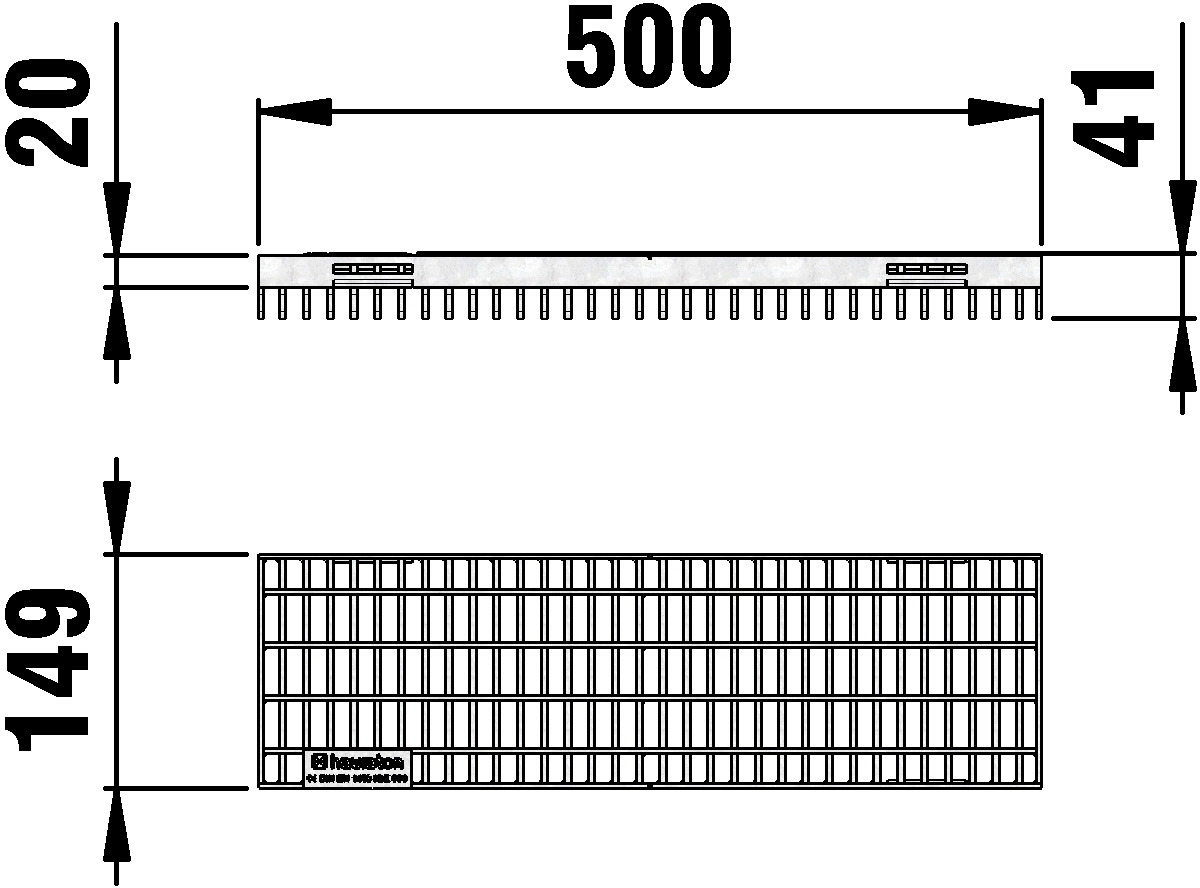

Technical drawing
Drawing
Drawing (CAD)

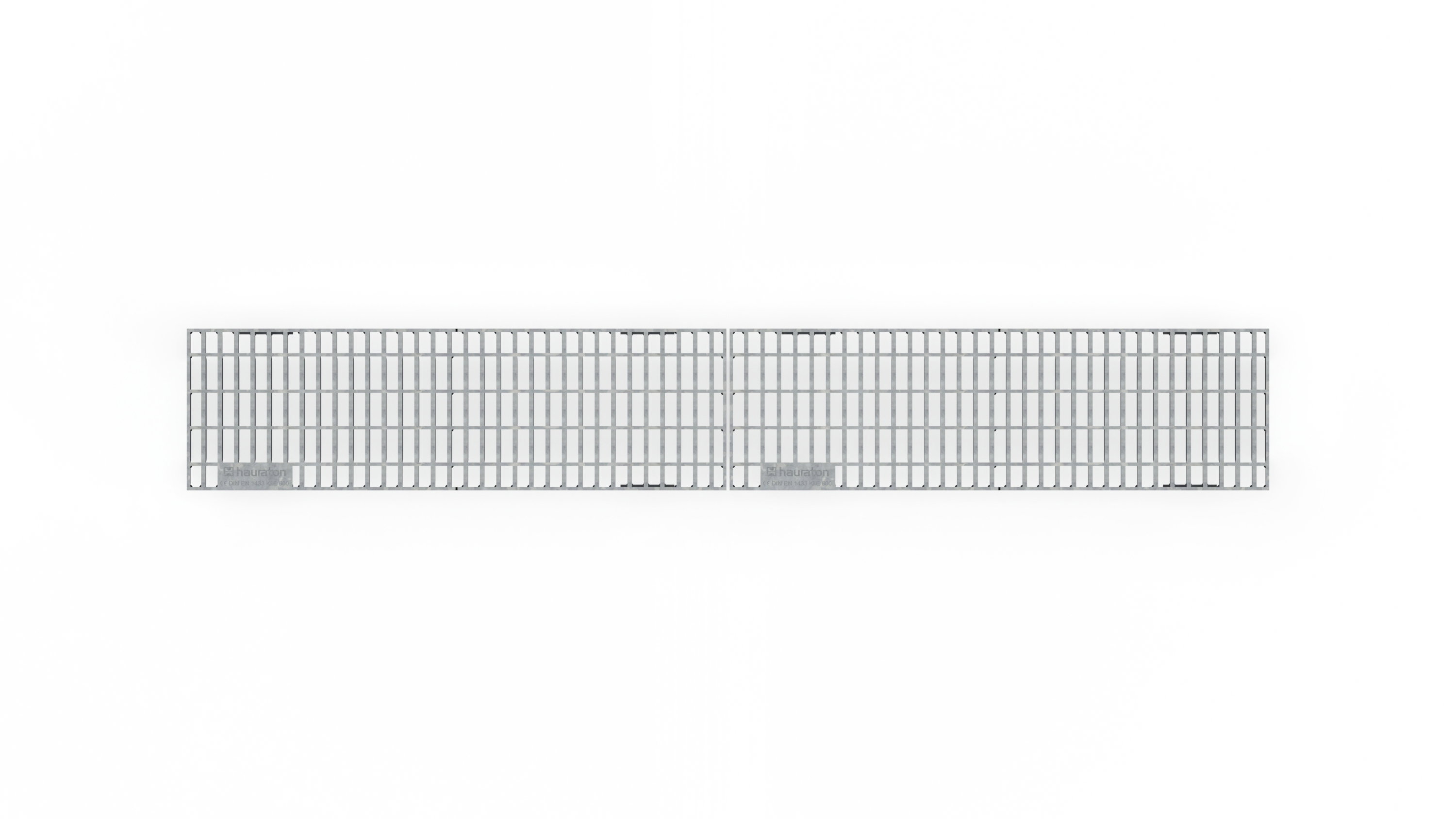

Top view
Technical information and metrics
Article No.
28072
Length
500 mm
Width
149 mm
Height
41 mm
Inlay depth
20 mm
Weight
5.85 kg
Material
hot-dip galvanised steel
Intake cross-section
935.0 cm²/m
Nominal size
100
Inlet opening
11 x 30 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MS 11/30 mm, galvanised, cl. E 600, FASERFIX KS 100, 0.5 m
Product description
FASERFIXKS 100 - Mesh grating, galvanised, MS 11/30, load class A 15 - E 600 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no.28072
Packaging unit
192
