Article No. 28179
FASERFIX KS 100, class C 250
Perforated grating Ø 6 mm, stainless steel V4A, 1.0 m
Product image

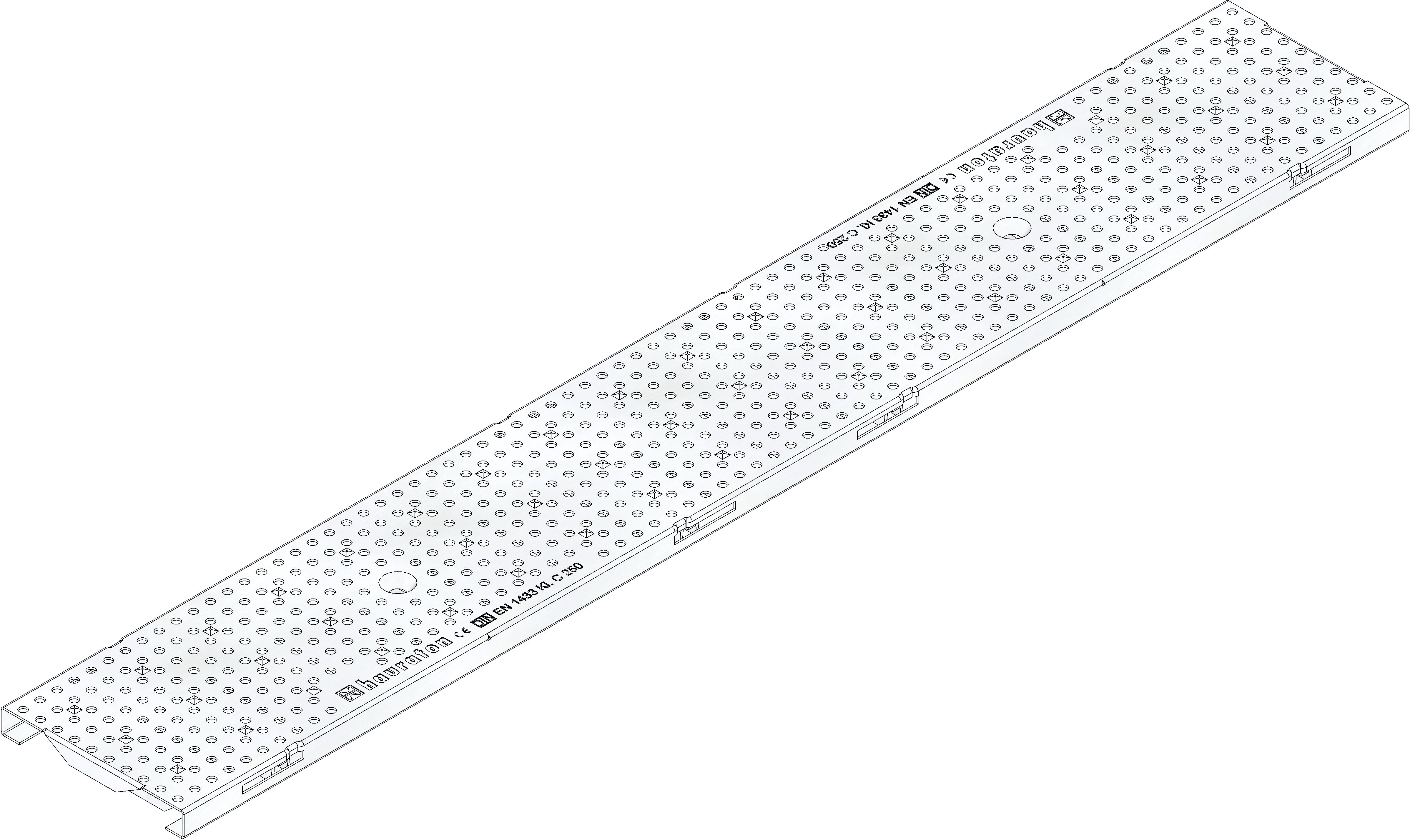

Technical drawing
Drawing (CAD)
Top view
Technical information and metrics
Article No.
28179
Length
1000 mm
Width
149 mm
Height
-
Inlay depth
20 mm
Weight
5.50 kg
Material
Stainless steel 1.4404
Intake cross-section
191.0 cm²/m
Nominal size
100
Inlet opening
6 x 0 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Stainless steel 1.4404
Regulations
EN 1433
Sales text
Perforated grating Ø 6 mm, stainless steel V4A, cl. C 250, FASERFIX KS 100, 1 m
Product description
FASERFIX KS 100 - Perforated grating Ø 6 mm, stainless steel CNS 1.4404, with longitudinal slide protection, load class A 15 - C 250 according to EN 1433, CE compliant, 8-fold locking, installation length 1000 mm, item no.28179
Packaging unit
-
