Article No. 32692
FASERFIX KS 100, class C 250
Mesh grating MS 30/10 mm, stainless steel V4A, 0.5 m

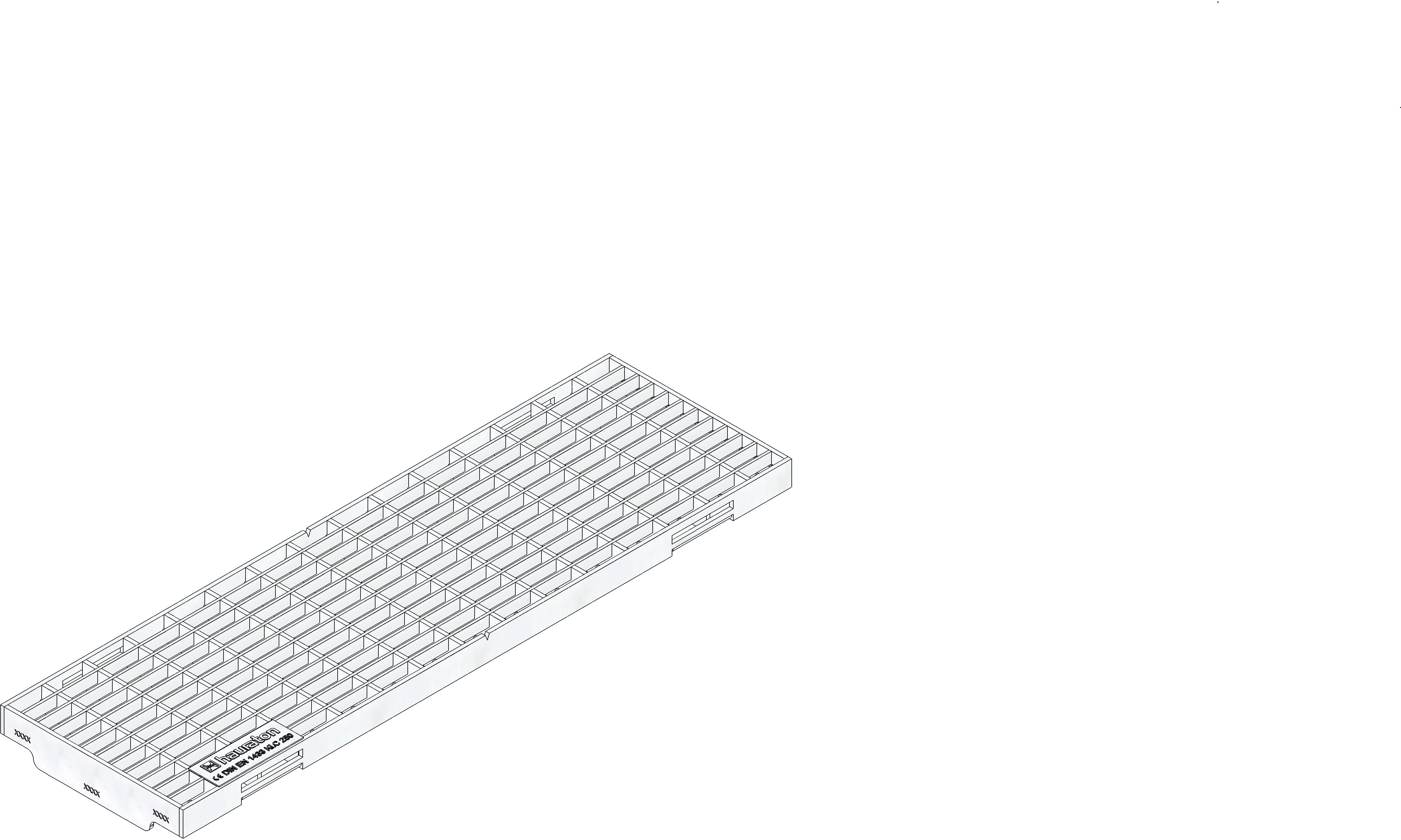

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
32692
Length
500 mm
Width
149 mm
Height
36 mm
Inlay depth
20 mm
Weight
2.60 kg
Material
Stainless steel 1.4404
Intake cross-section
1062.0 cm²/m
Nominal size
100
Inlet opening
30 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
Stainless steel 1.4404
Regulations
EN 1433, DIN 19580
Sales text
Mesh grating MS 30/10 mm, stainless steel V4A , cl. C 250, FASERFIX KS 100, 0.5 m
Product description
FASERFIX KS 100 - Mesh grating MS 30/10 mm, stainless steel CNS 1.4404, with longitudinal slide protection, load class A 15 - C 250 according to EN 1433, CE compliant, 8-fold locking, installation length 500 mm, item no.32692
Packaging unit
400
