Article No. 8106
FASERFIX KS 100, class C 250
FIBRETEC design slotted grating SW 110/9 mm, in the colour aluminium, 0.5 m

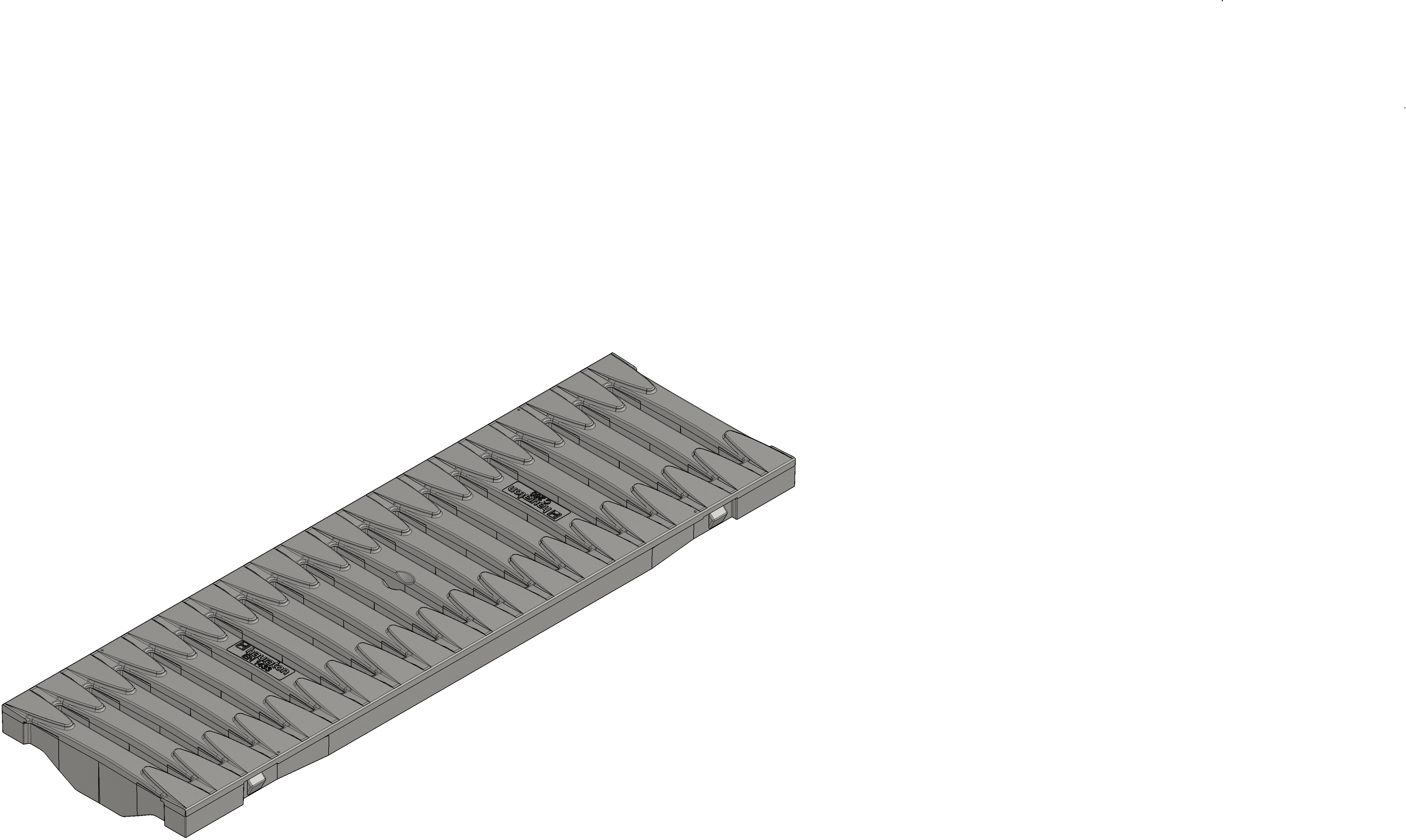

Product image
Technical drawing
Drawing (CAD)
Top view
Technical information and metrics
Article No.
8106
Length
500 mm
Width
149 mm
Height
38 mm
Inlay depth
20 mm
Weight
1.05 kg
Material
reinforced Polyamide
Intake cross-section
372.0 cm²/m
Nominal size
100
Inlet opening
110 x 9 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 19580
Sales text
FIBRETEC Design slotted grating SW 110/9 mm, in the colour Aluminium, cl. C 250, FASERFIX KS 100, 0.5 m
Product description
FASERFIX KS 100 - FIBRETEC design slotted grating SW 110/9 mm, in the colour Aluminium, made of fibre-reinforced polyamide, with longitudinal slide protection and locking, load class A15 - C 250 according to EN 1433, installation length 500 mm, item no. 8106
Packaging unit
264
