Article No. 8162
FASERFIX KS 100, class A 15
Slotted grating SW 80/10 mm, galvanised, 0.5 m

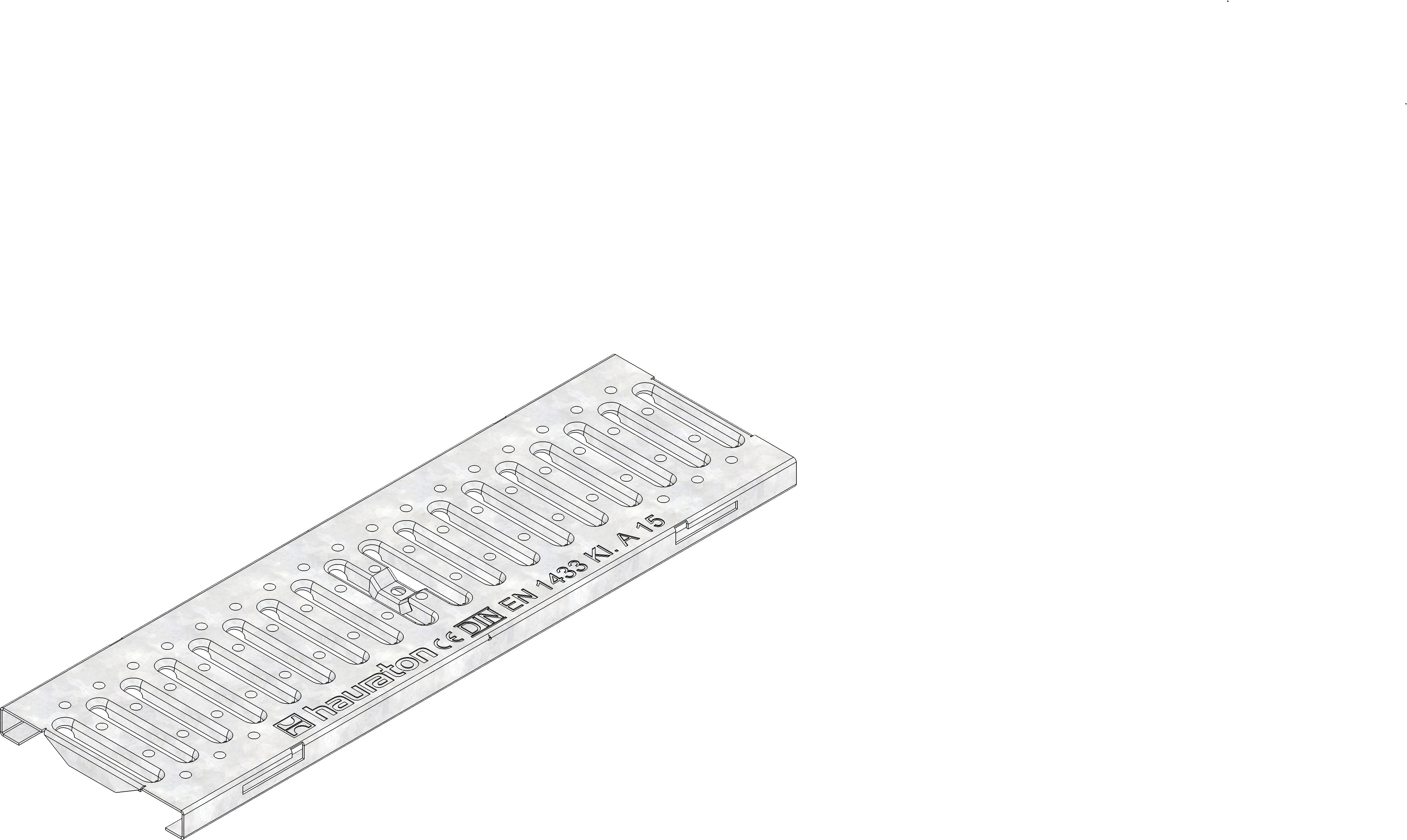

Product image

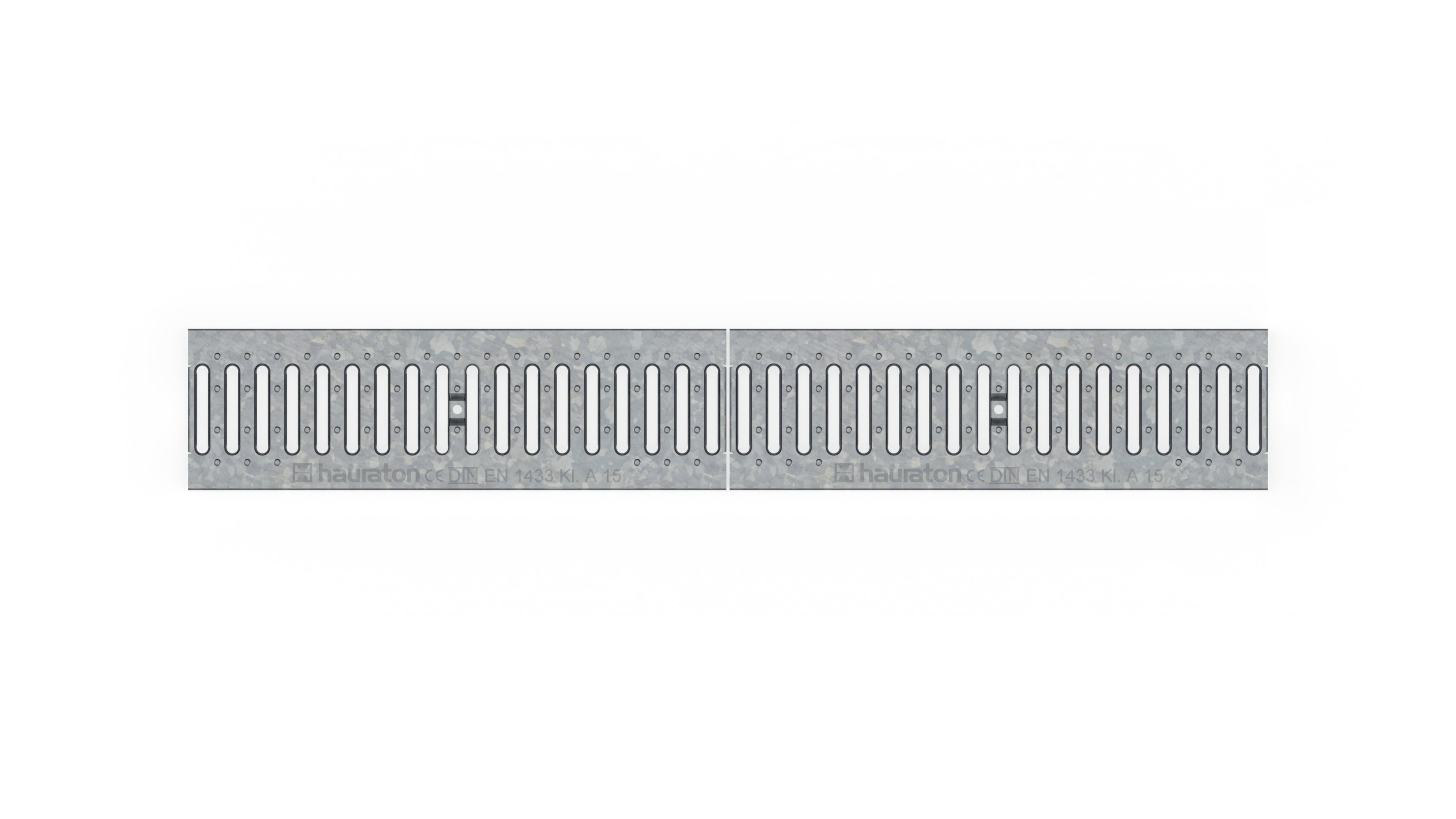

Top view

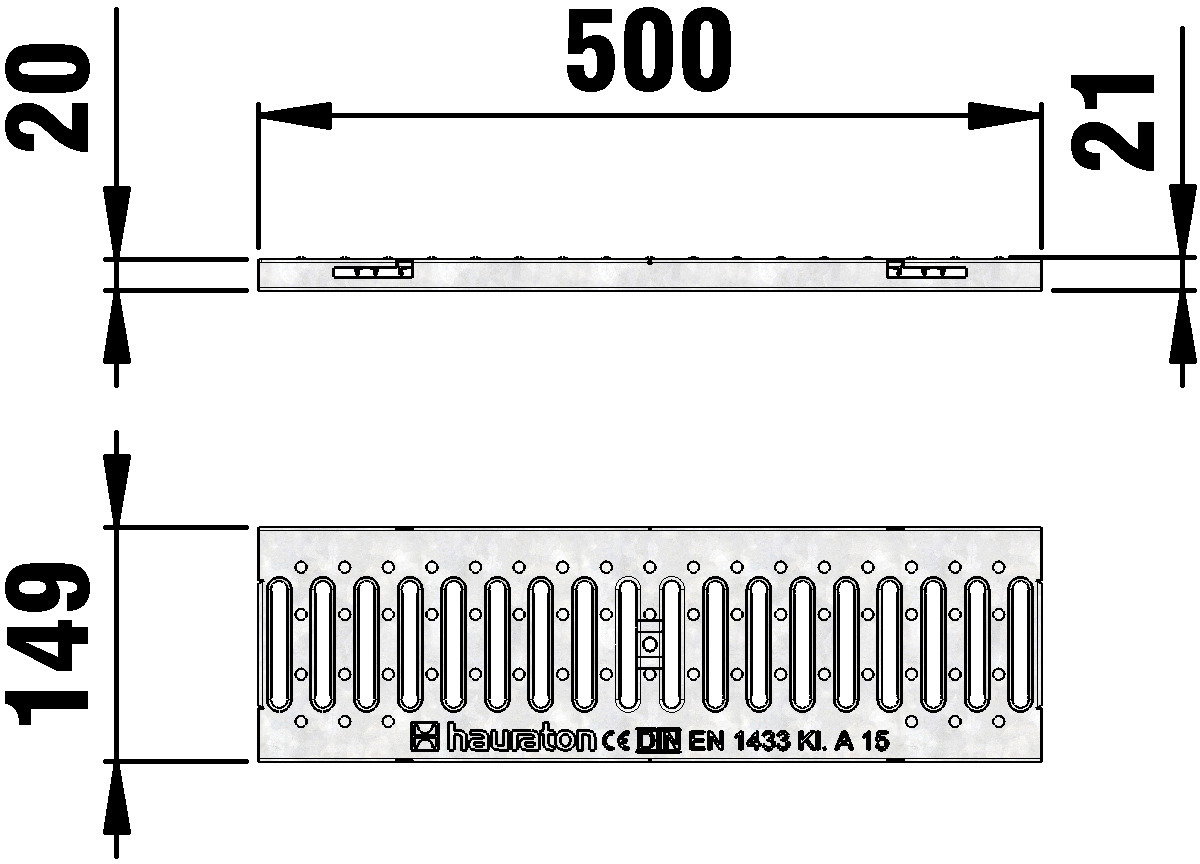

Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
8162
Length
500 mm
Width
149 mm
Height
21 mm
Inlay depth
20 mm
Weight
1.30 kg
Material
strip galvanized steel
Intake cross-section
286.0 cm²/m
Nominal size
100
Inlet opening
80 x 10 mm
Fixing type
Locking handle, SIDE-LOCK
Material grating
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
Slotted grating SW 80/10 mm, galvanised, cl. A 15, FASERFIX KS 100, 0.5 m
Product description
FASERFIX KS 100 - Slotted grating SW 80/10 mm, galvanised, load class A 15 according to EN 1433, CE compliant, installation length 500 mm, item no. 8162
Packaging unit
600
