Article No. 10753
End caps
for NW 150, for type 015 + 020, with KG2000-PVC-U pipe outlet DN/OD 160, galvanised

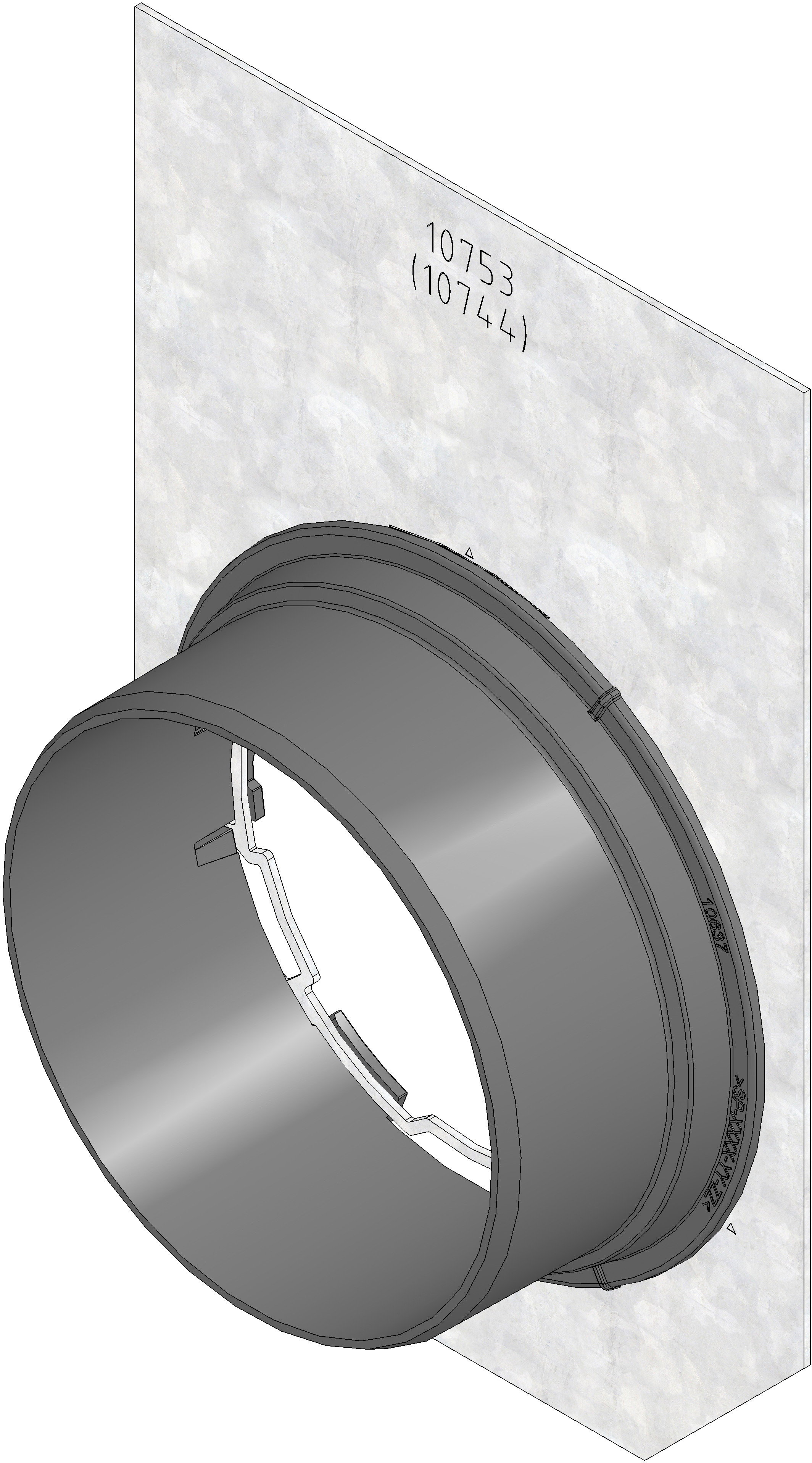

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10753
Width
210 mm
Height
315 mm
Weight
0.85 kg
Material
recycled polypropylene, strip galvanized steel
Nominal size
150
Sales text
End cap with KG2000-PVC-U pipe outlet DN/OD 160, galvanised, FASERFIX KS 150 type 015 + 020
Product description
FASERFIX KS 150 type 015 + 020 - End cap for end of channel run, galvanised, with KG2000-PVC-U pipe outlet DN/OD 160, item no. 10753
Packaging unit
-
