DRAINFIX System shafts 300/1800** mm with filter unit

97800

-

-

1800 mm

14.40 kg

PE-HD, RECYFIX Material (PP virgin material)

-

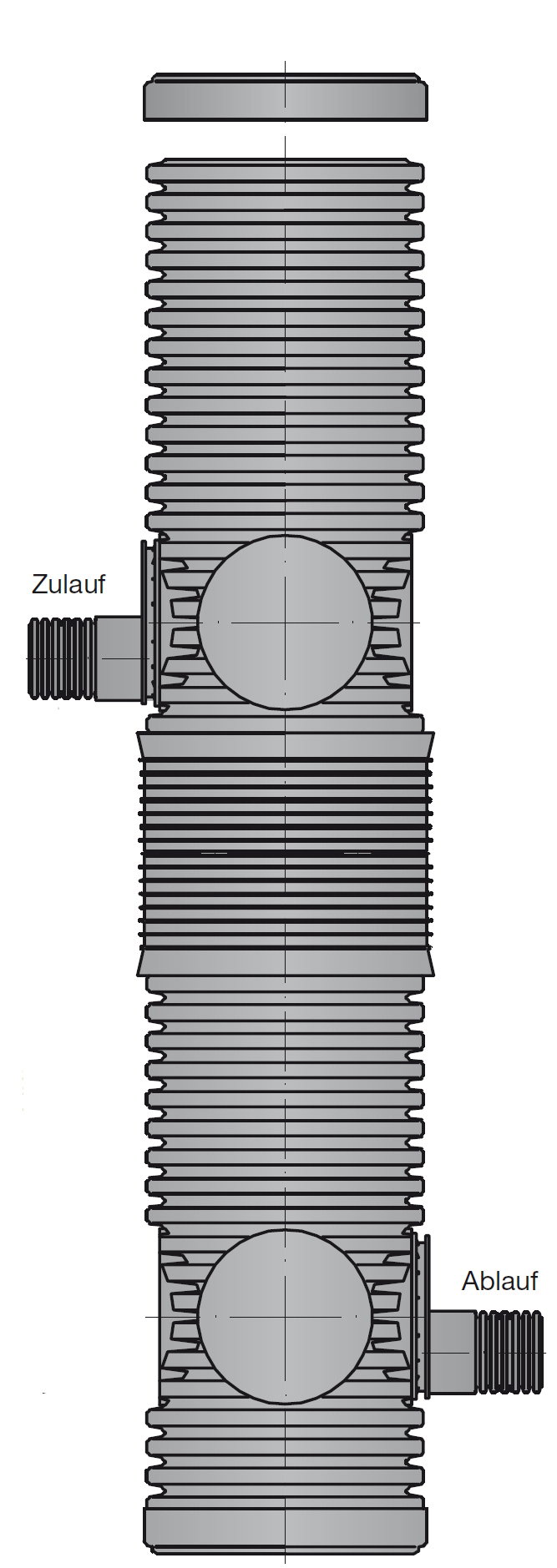

DRAINFIX Multifunction gully 300/1800 mm, made of PE-HD/PP, with removable silt bucket, with cover made of composite, closed, built-on, in- and outlet DN/OD 200, for inlet, distribution, filtration, outlet, emergency overflow, ventilation and control

DRAINFIX Multifunction gully, 2-part, composite pipe construction with smooth inner surface and profiled outer surface, made of high -density polyethylene, inner diameter 300 mm, outer diameter 353 mm, maximum total height 1.800 mm plus installation height of closed composite cover, inlet/outlet height difference between > 580 mm, easy to adapt on site, with top part, height 900 mm, can be shortened up to 300 mm in height, with removable silt bucket, height 200 mm, factory-made with one inlet and adaptor DN/OD 200, optionally lockable with separately orderable blind cover, two further connection possibilities with separately orderable adaptor DN /OD 200, with closed cover, pedestrian-accessible, made of polypropylene, with connection sleeve, with bottom part, height 900 mm, can be shortened up to 300 mm in height, with integrated sand trap, height 200 mm, factory-made with one outlet and adaptor DN/OD 200, optionally lockable with separately orderable blind cover, two further connection possibilities with separately orderable adaptor DN/OD 200, LxWxH 355x355x1800 mm, item no. 97800

6

0.0 l
