Article No. 97349
DRAINFIX CLEAN FSU 300, class D 400
Ductile iron grating 2x SW 136/18 mm, KTL-coated, 0.5 m

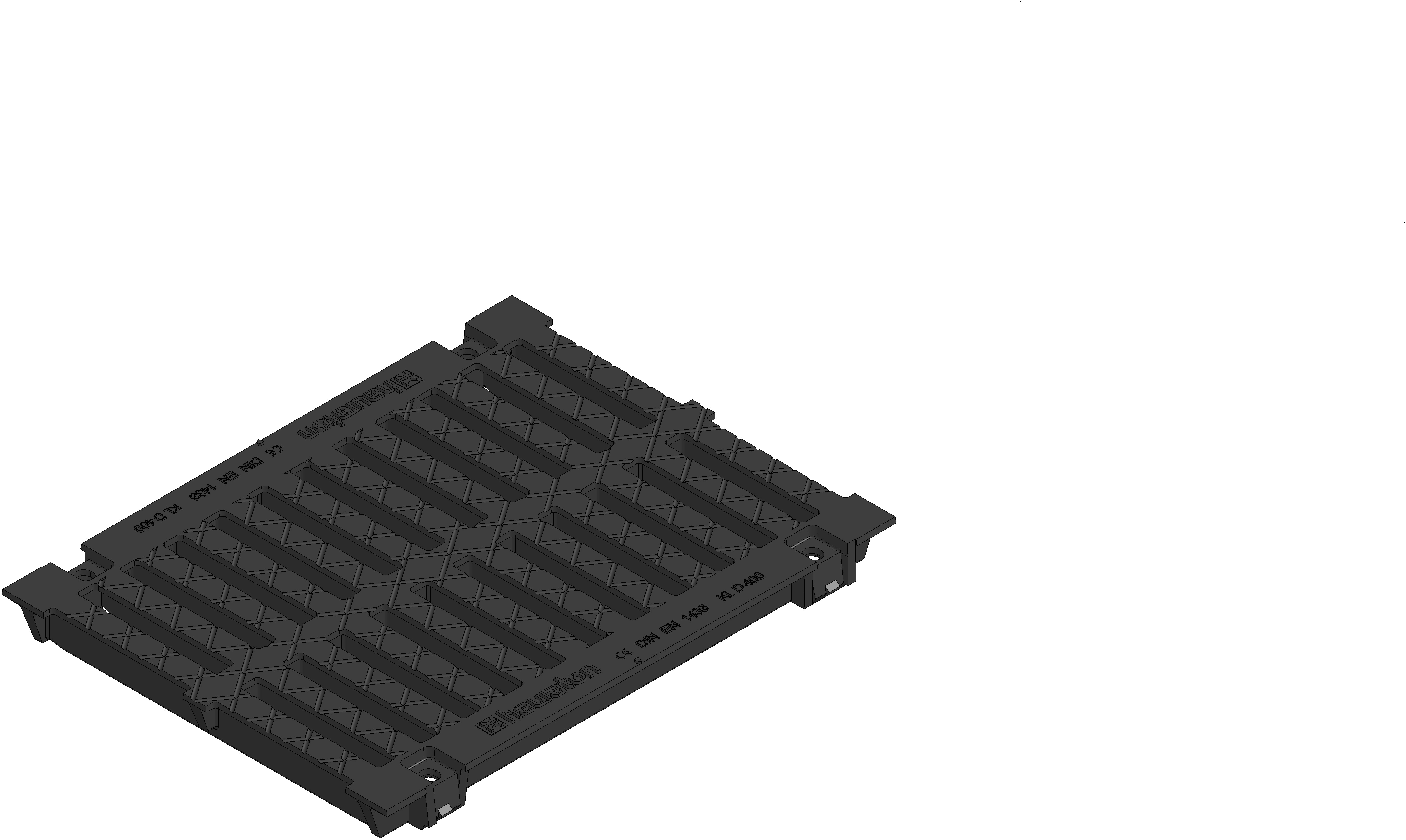

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
97349
Length
500 mm
Width
379 mm
Height
52 mm
Inlay depth
40 mm
Weight
16.91 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
1150.0 cm²/m
Nominal size
300
Inlet opening
136 x 18 mm
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating 2x SW 136/18 mm, KTL-coated, cl. D 400, DRAINFIX CLEAN FSU 300, 0.5 m
Product description
DRAINFIX CLEAN FSU 300 - Ductile iron grating 2x SW 136/18 mm, made of spheroidal ductile iron EN-GJS-500-7, KTL-coated, with longitudinal slide protection, load class A 15 - D 400 according to EN 1433, CE compliant, 4-fold locking, installation length 500 mm, item no. 97349
Packaging unit
-
national declaration of performance
Nation DoP
