Article No. 10615
DRIVETEC ST 100, class A 15
Type 01 with slotted cover SW 80/9 mm, galvanised, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

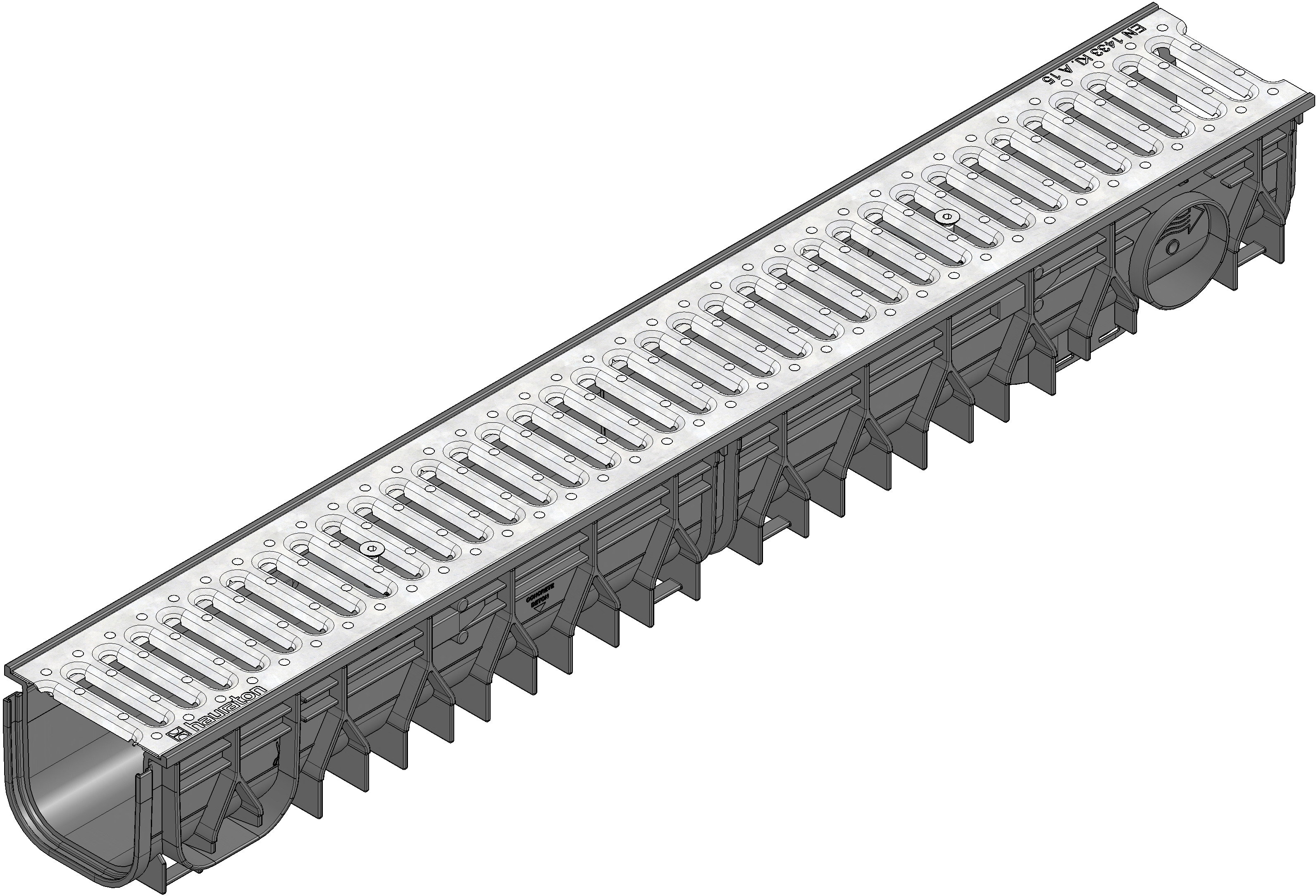

Product image

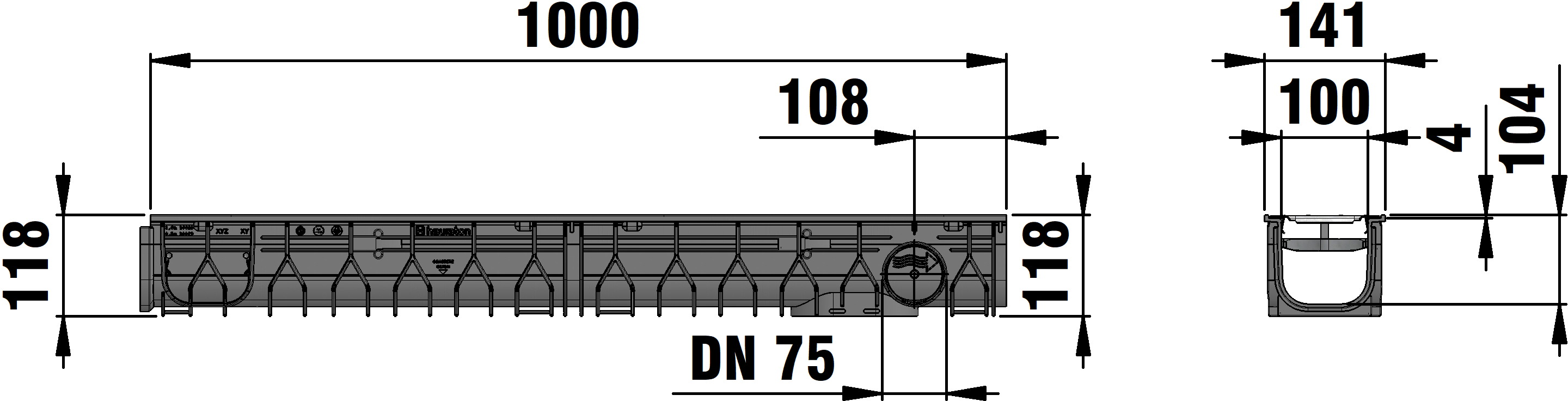

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10615
Length
1000 mm
Width
141 mm
Height
118 mm
Einlegetiefe
3 mm
Weight
3.53 kg
Material
Galvanised steel, recycled polypropylene, RECYFIX Material (recycled PA), Stainless steel (V2A), strip galvanized steel
Intake cross-section
259.0 cm²/m
Nominal size
100
Internal channel cross-section
95 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material cover
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
DRIVETEC ST 100 Channel type 01 with slotted cover SW 80/9 mm, galvanised, cl. A 15, locked, 1 m
Product description
DRIVETEC ST 100 type 01 - Channel made of recycled polypropylene, with lateral (DN/OD 75) and vertical connection possibility (DN/OD 110 through adapter, available separately), with slotted cover SW 80/9 mm, made of galvanised steel, overlying, with locking, loading class A 15 according to EN 1433, LxWxH 1000x141x118 mm, item no. 10615
Packaging unit
64
