Article No. 10616

DRIVETEC ST 100, class A 15

Type 01 with slotted cover SW 80/9 mm, galvanised, locked, 0.5 m

Available from stock
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

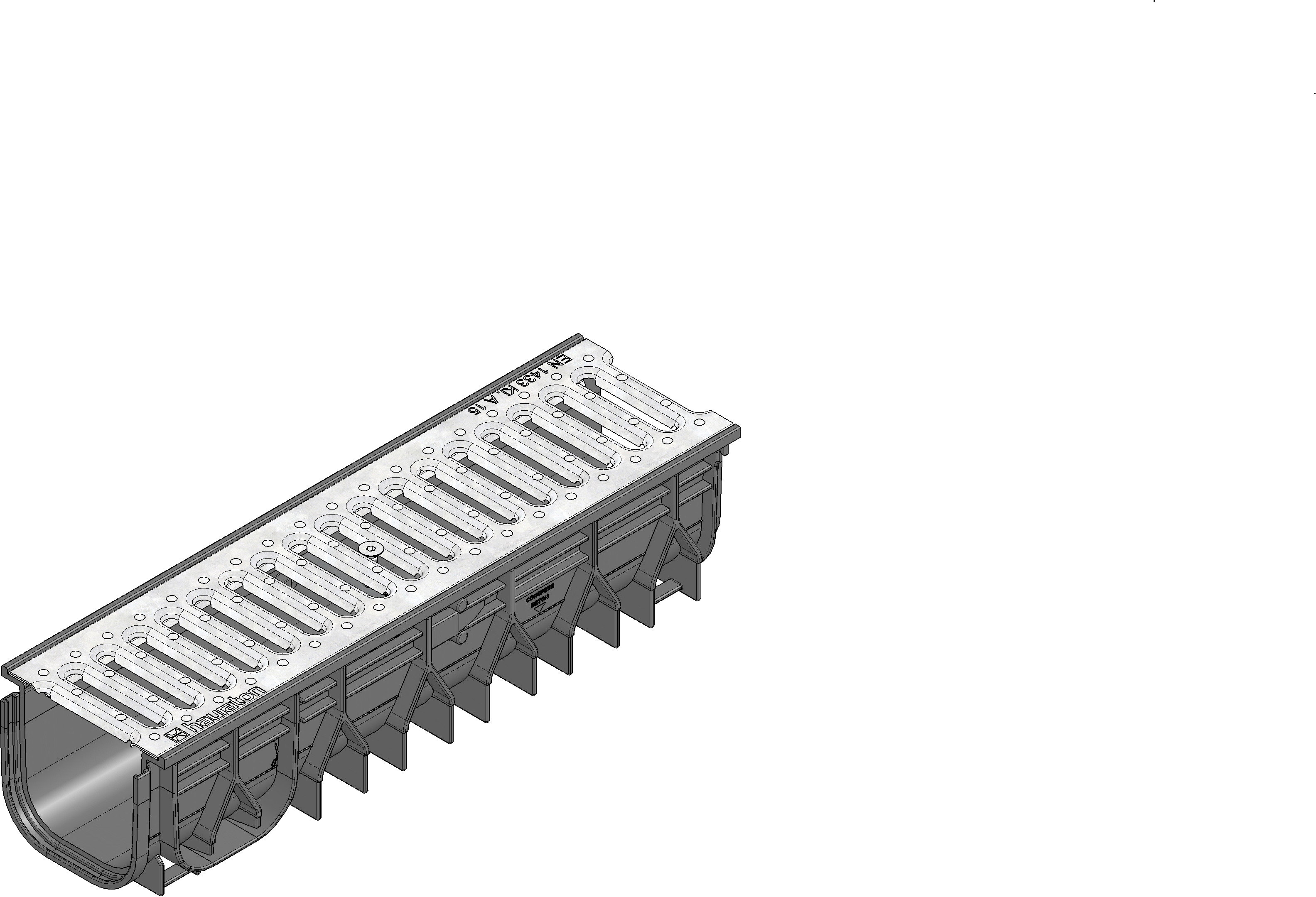

Product image

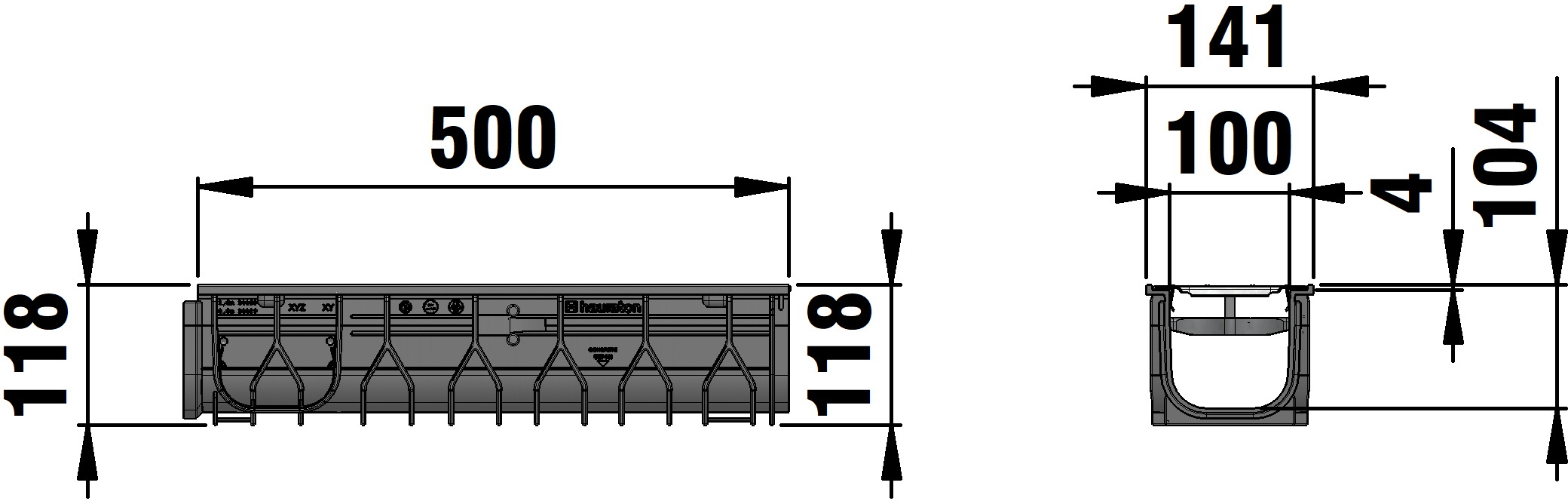

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
10616
Length
500 mm
Width
141 mm
Height
118 mm
Einlegetiefe
3 mm
Weight
1.76 kg
Material
Galvanised steel, recycled polypropylene, RECYFIX Material (recycled PA), Stainless steel (V2A), strip galvanized steel
Intake cross-section
259.0 cm²/m
Nominal size
100
Internal channel cross-section
95 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material cover
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
DRIVETEC ST 100 Channel type 01 with slotted cover SW 80/9 mm, galvanised, cl. A 15, locked, 0.5 m
Product description
DRIVETEC ST 100 type 01 - Channel body made of recycled polypropylene, with slotted cover SW 80/9 mm, made of galvanised steel, overlying, with locking, load class A 15 according to EN 1433, LxWxH 500x141x118 mm, item no. 10616
Packaging unit
128
