Article No. 10657
DRIVETEC ME 100, class B 125
Type 01 with ductile iron cover SW 80/8 mm, black, locked, 1.0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

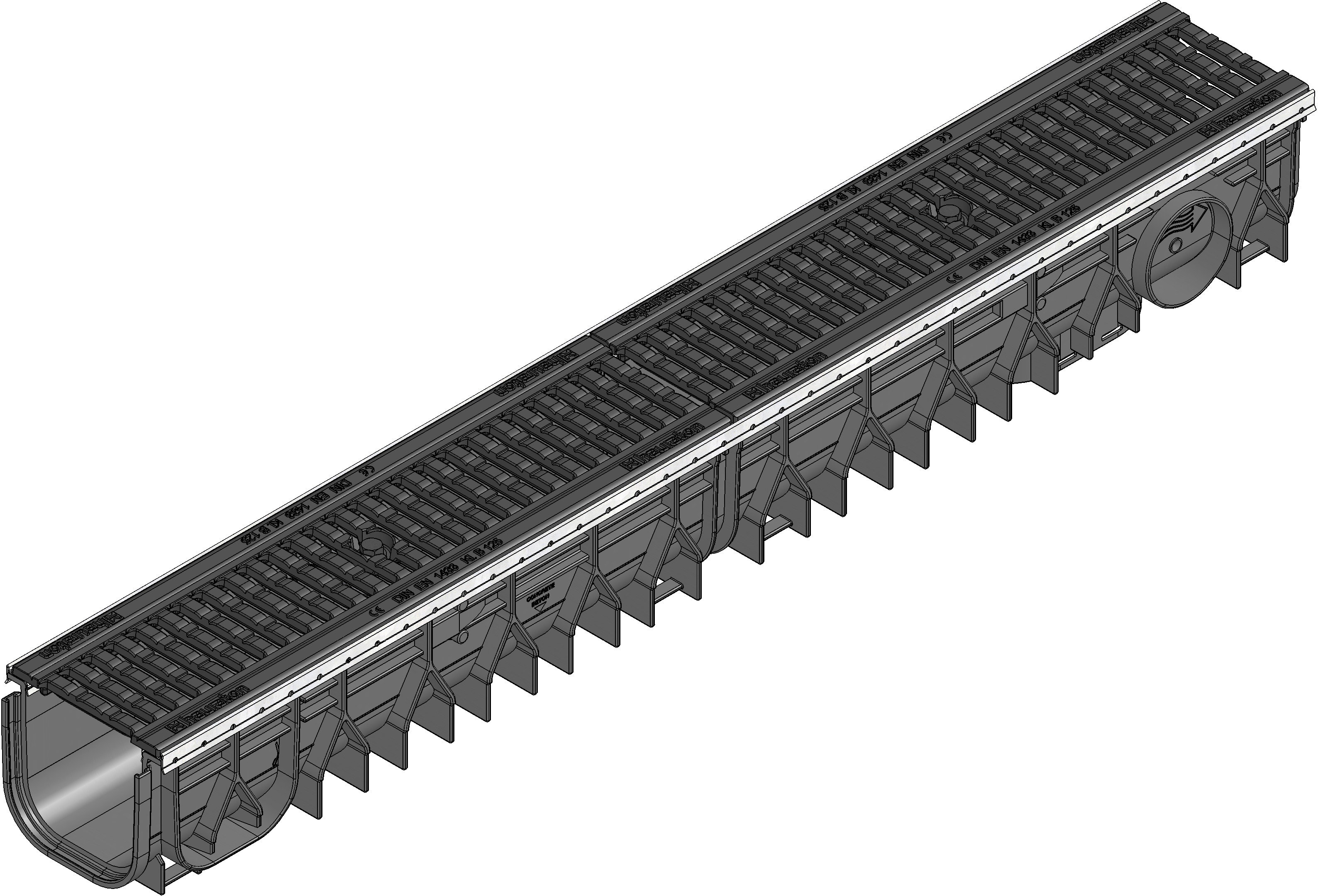

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10657
Length
1000 mm
Width
138 mm
Height
119 mm
Einlegetiefe
6 mm
Weight
8.32 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, RECYFIX Material (recycled PA), Steel black galvanised, strip galvanized steel
Intake cross-section
320.0 cm²/m
Nominal size
100
Internal channel cross-section
96 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material of angle housing
strip galvanized steel
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
DRIVETEC ME 100 Channel type 01 with edge frames made of galvanised steel and ductile iron cover SW 80/8 mm, black, cl. B 125, locked, 1 m
Product description
DRIVETEC ME 100 type 01 - Channel body of made of recycled polypropylene, with edge frame made of galvanised steel, with lateral (DN /OD 75) and vertical connection possibility (DN/OD 110 through adapter, available separately), with ductile iron cover SW 80/8 mm, made of spheroidal ductile iron EN-GJS, black, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 1000x138x119 mm, item no. 10657
Packaging unit
64
Declaration of Performance
Tender Texts
Installation example
Installation example
Asphalt class A 15 - B 125,
Pavement class B 125,
Installation example
