Article No. 40017
sump unit
for NW 150, with edge frames made of stainless steel and silt bucket made of recycled PP, with GUGI-ductile iron mesh cover MS 15/ 25 mm, black, class C 250, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

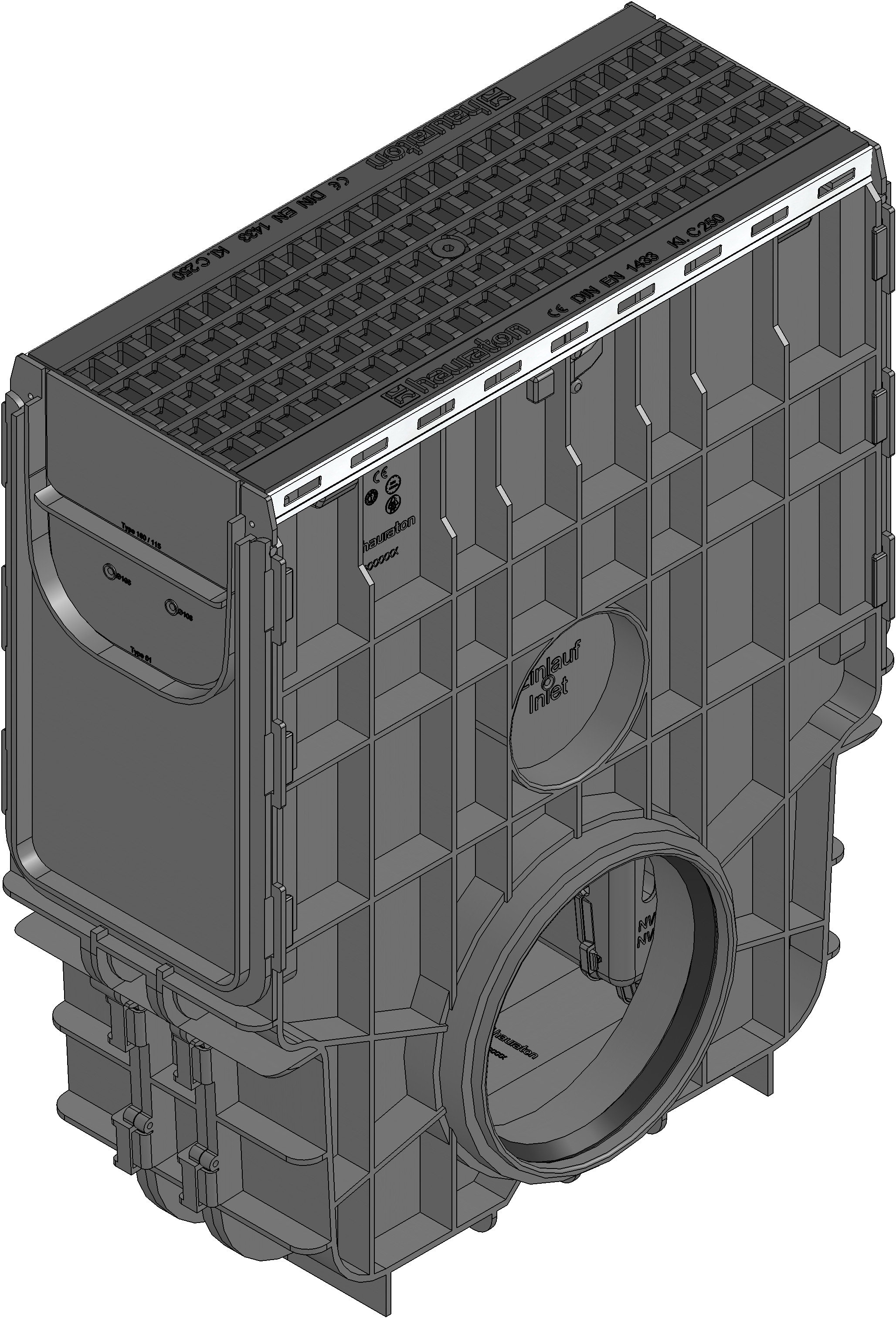

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
40017
Length
500 mm
Width
216 mm
Height
628 mm
Einlegetiefe
23 mm
Weight
12.67 kg
Material
Ductile iron GJS 500-7, recycled polypropylene, Stainless steel 1.4301, Steel black galvanised, strip galvanized steel
Intake cross-section
688.0 cm²/m
Nominal size
150
Material cover
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frames made of stainless steel, with GUGI-ductile iron mesh cover MS 15/25 mm, black, cl. C 250, locked, with silt bucket made of recycled PP, with 2 end caps made of recycled PP, RECYFIX PLUS 150, 0.5 m
Product description
RECYFIX PLUS 150 - Sump unit made of recycled polypropylene, with edge frames made of stainless steel CNS 1.4301, on both sides preformed pipe connection element DN/OD 200, with removable silt bucket made of recycled polypropylene, with 2 end caps made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PLUS 150, GUGI-ductile iron mesh cover MS 15/ 25 mm, made of spheroidal ductile iron EN-GJS-500-7, black, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x216x628 mm, item no. 40017
Packaging unit
8
