Article No. 47129
sump unit
for NW 100, with integrated edge frames and silt bucket made of recycled PP, with longitudinal cover, bar distance 10 mm, galvanised, class A 15, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

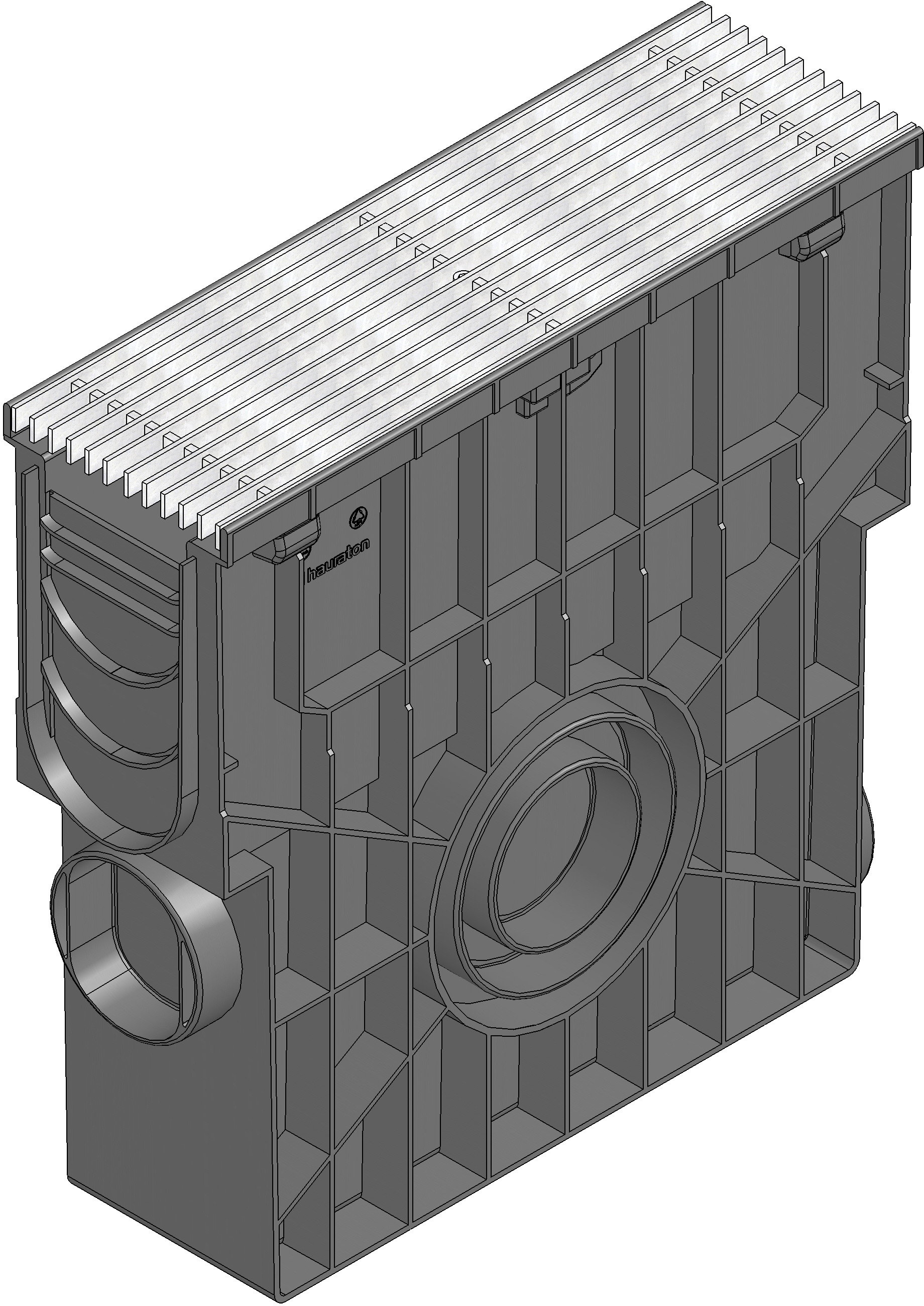

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
47129
Length
500 mm
Width
160 mm
Height
504 mm
Einlegetiefe
20 mm
Weight
6.82 kg
Material
hot-dip galvanised steel, recycled polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
1092.0 cm²/m
Nominal size
100
Material cover
hot-dip galvanised steel
Sales text
Sump unit with integrated edge frames, with longitudinal cover, bar distance 10 mm, galvanised, locked, with silt bucket made of recycled PP, RECYFIX PRO 100, 0.5 m
Product description
RECYFIX PRO 100 - Sump unit made of recycled polypropylene, according to EN 1433, with integrated edge frames, 4-sided preformed pipe connection element (on the front side DN/OD 110, on the sides DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PRO 100, with longitudinal cover bar distance 10 mm, galvanised, with longitudinal slide protection and locking, load class A 15 according to EN 1433, LxWxH 500x160x504 mm, item no. 47129
Packaging unit
28
