Article No. 41409
sump unit
for NW 100, with edge frames made of stainless steel and silt bucket made of recycled PP, with slotted cover SW 80/9 mm, stainless steel, trafficable, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

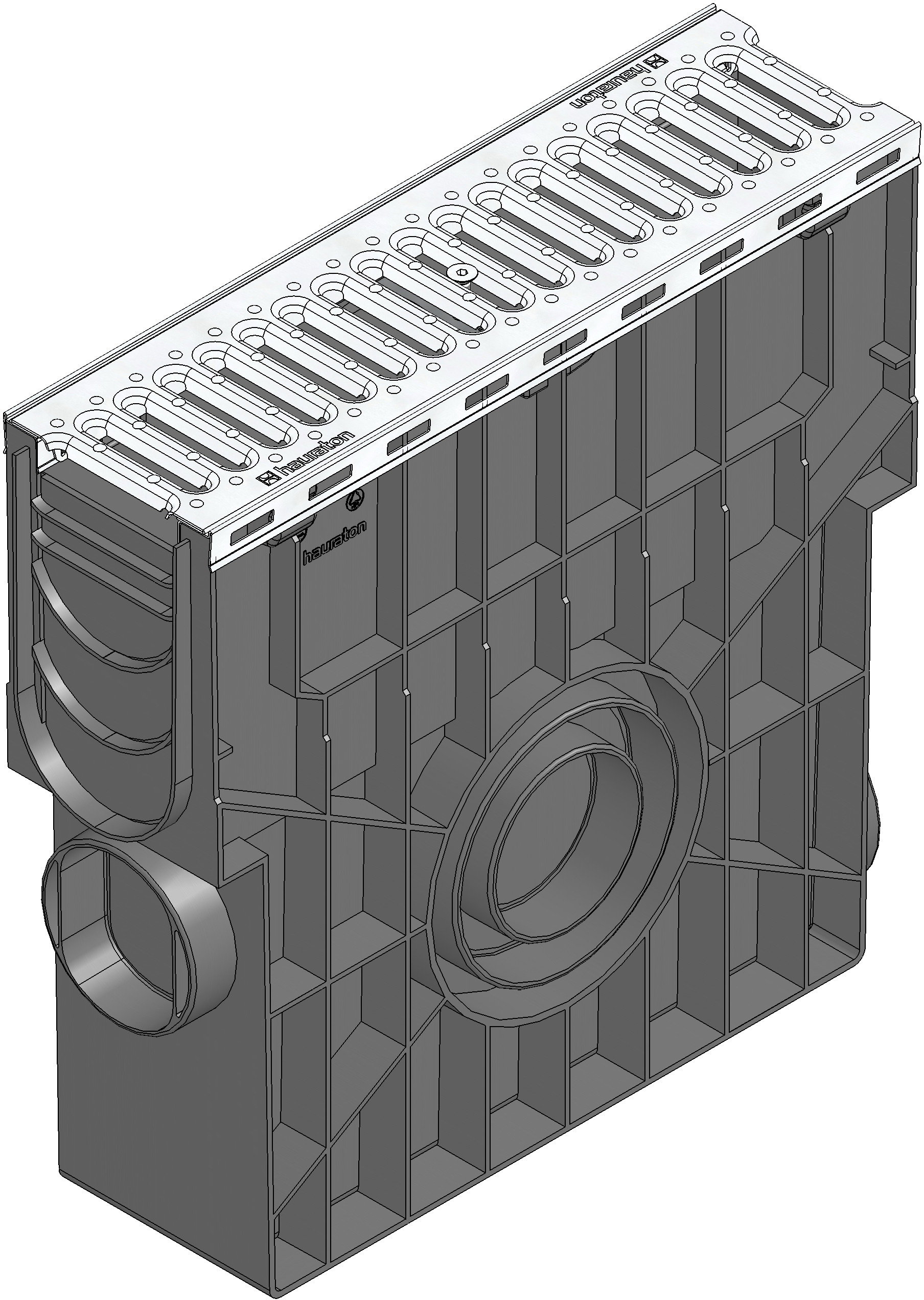

Product image

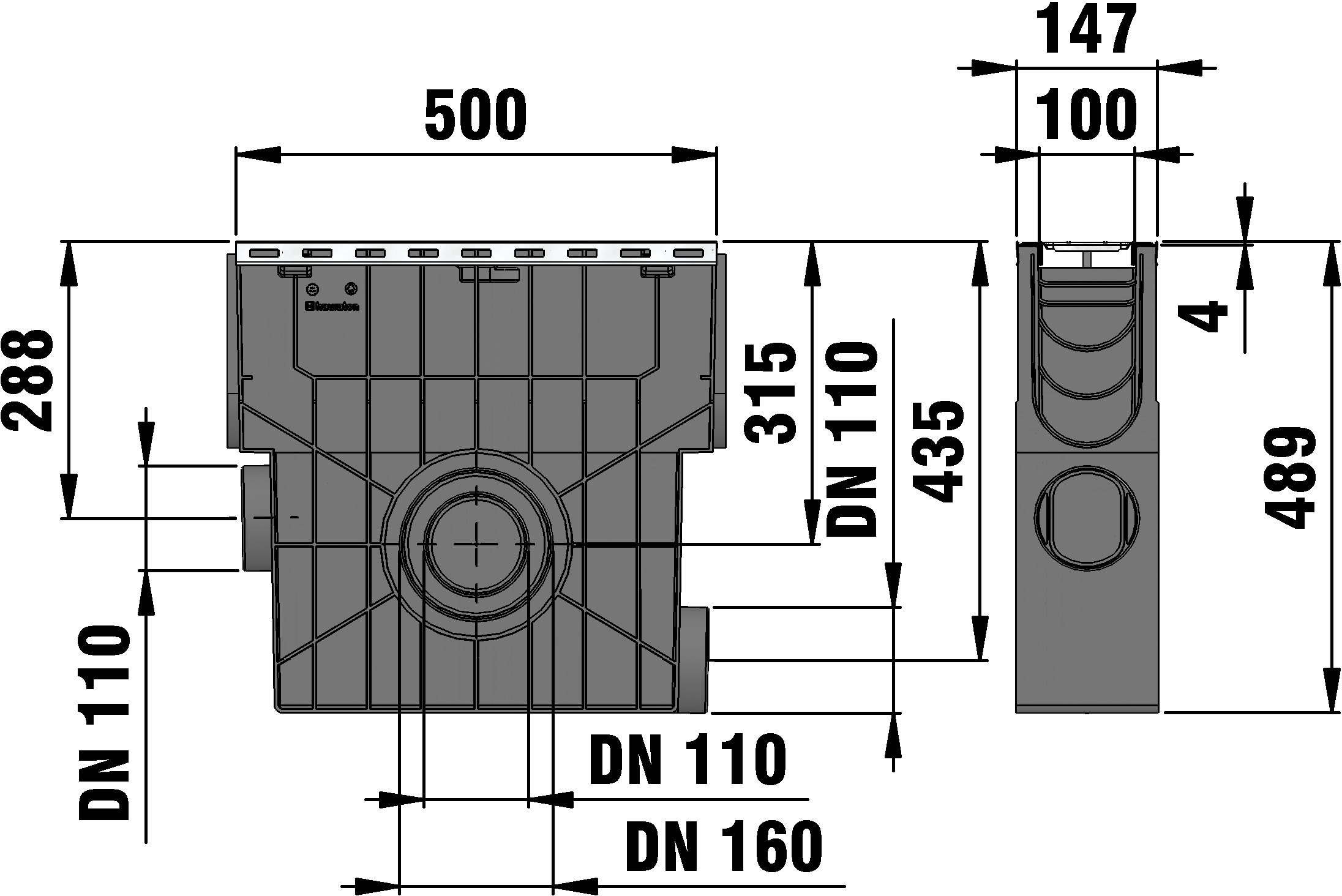

Technical drawing
Drawing (CAD)
Drawing

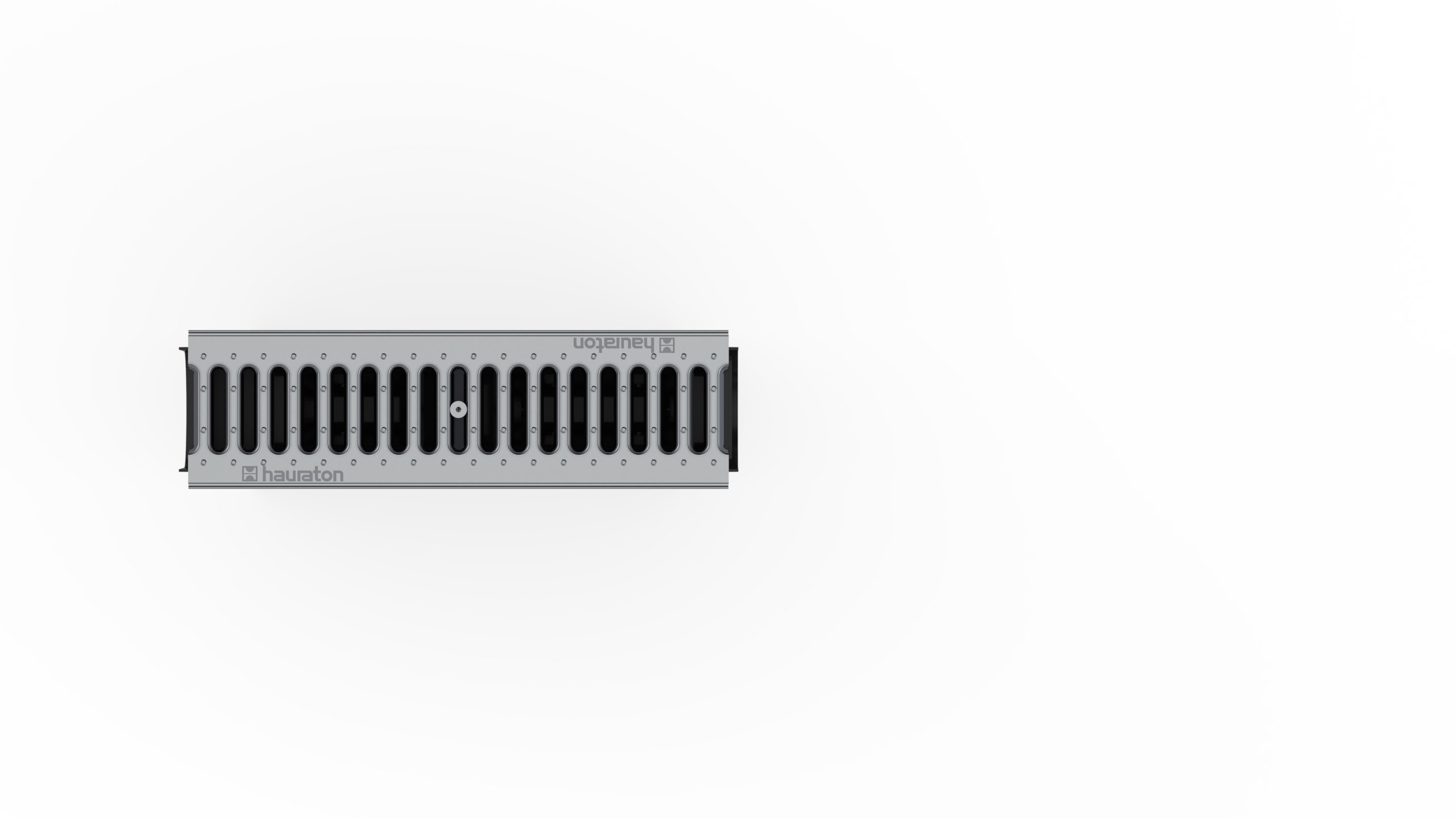

Top view
Technical information and metrics
Article No.
41409
Length
500 mm
Width
147 mm
Height
489 mm
Einlegetiefe
3 mm
Weight
5.91 kg
Material
recycled polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
266.0 cm²/m
Nominal size
100
Material cover
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frames made of stainless steel, with slotted cover SW 80/9 mm, stainless steel, trafficable, locked, with silt bucket made of recycled PP, RECYFIX PLUS 100, 0.5 m
Product description
RECYFIX PLUS 100 - Sump unit made of recycled polypropylene, with edge frames made of stainless steel CNS 1.4301, according to EN 1433, 4-sided connection possibility (on the front side DN/OD 110, on the side DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PLUS 100, with slotted cover SW 80/9 mm, stainless steel CNS 1.4301, with locking, trafficable, LxWxH 500x147x489 mm, item no. 41409
Packaging unit
28
