Article No. 41419
sump unit
for NW 100, with edge frames made of stainless steel and silt bucket made of recycled PP, with mesh cover MS 30/10 mm, cl. B 125, locked, 0.5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

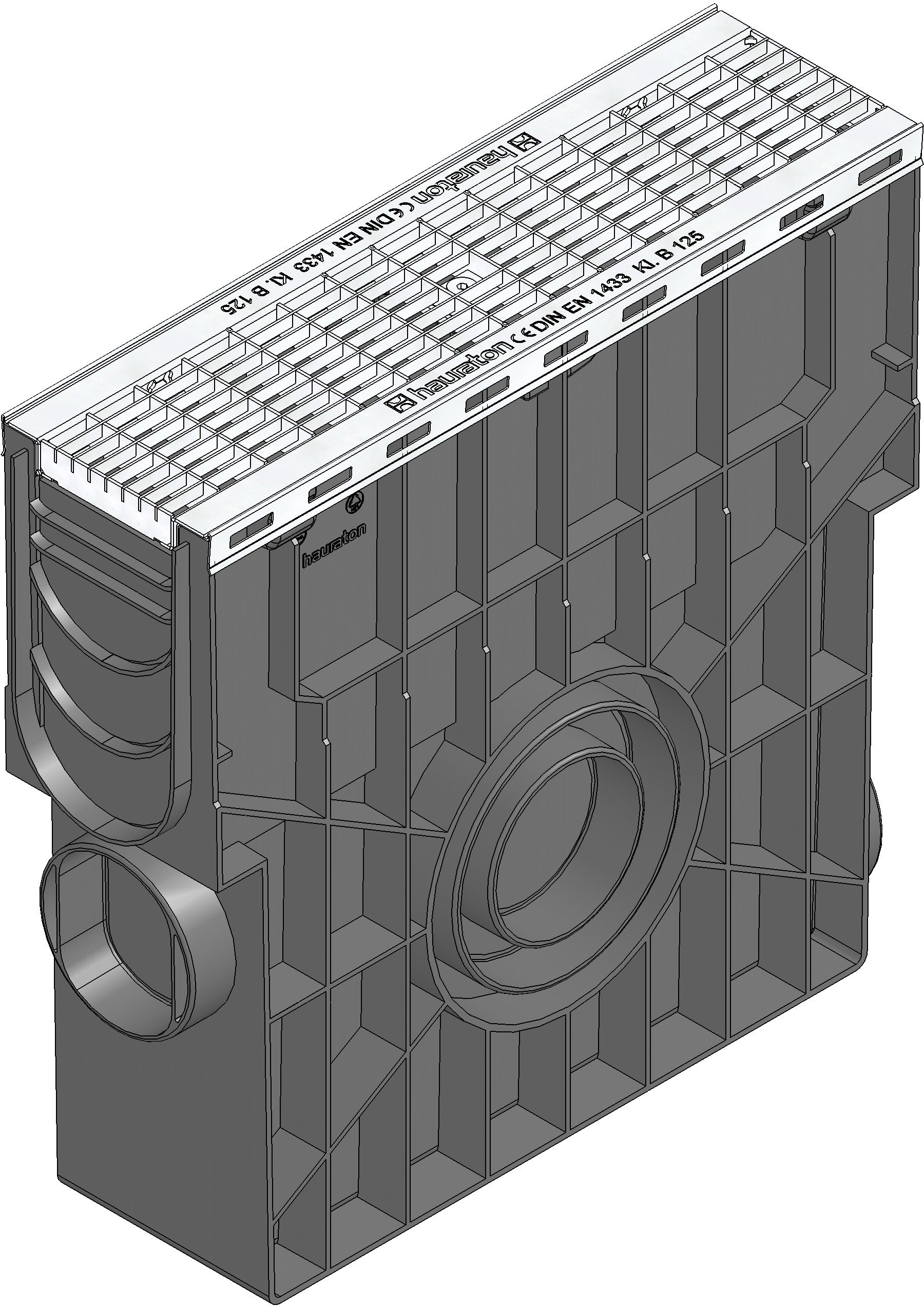

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Technical information and metrics
Article No.
41419
Length
500 mm
Width
147 mm
Height
489 mm
Einlegetiefe
2 mm
Weight
6.42 kg
Material
recycled polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
735.0 cm²/m
Nominal size
100
Material cover
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
Sump unit with edge frames made of stainless steel, with mesh cover MS 30/10 mm, stainless steel, cl. B 125, locked, with silt bucket made of recycled PP, RECYFIX PLUS 100, 0.5 m
Product description
RECYFIX PLUS 100 - Sump unit made of recycled polypropylene, with edge frames made of stainless steel CNS 1.4301, 4-sided connection possibility (on the front side DN/OD 110, on the side DN/OD 110/160), with removable silt bucket made of recycled polypropylene, suitable for both-sided connection of channel types RECYFIX PLUS 100, with mesh cover MS 30/10 mm, stainless steel CNS 1.4301, with locking, load class A 15 - B 125 according to EN 1433, LxWxH 500x147x489 mm, item no. 41419
Packaging unit
28
