Article No. 44332

TOP X, Combined article, composite channel with cover, class A 15

silver, with slotted cover SW 80/9 mm, 1.0 m

Delivery time on request
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

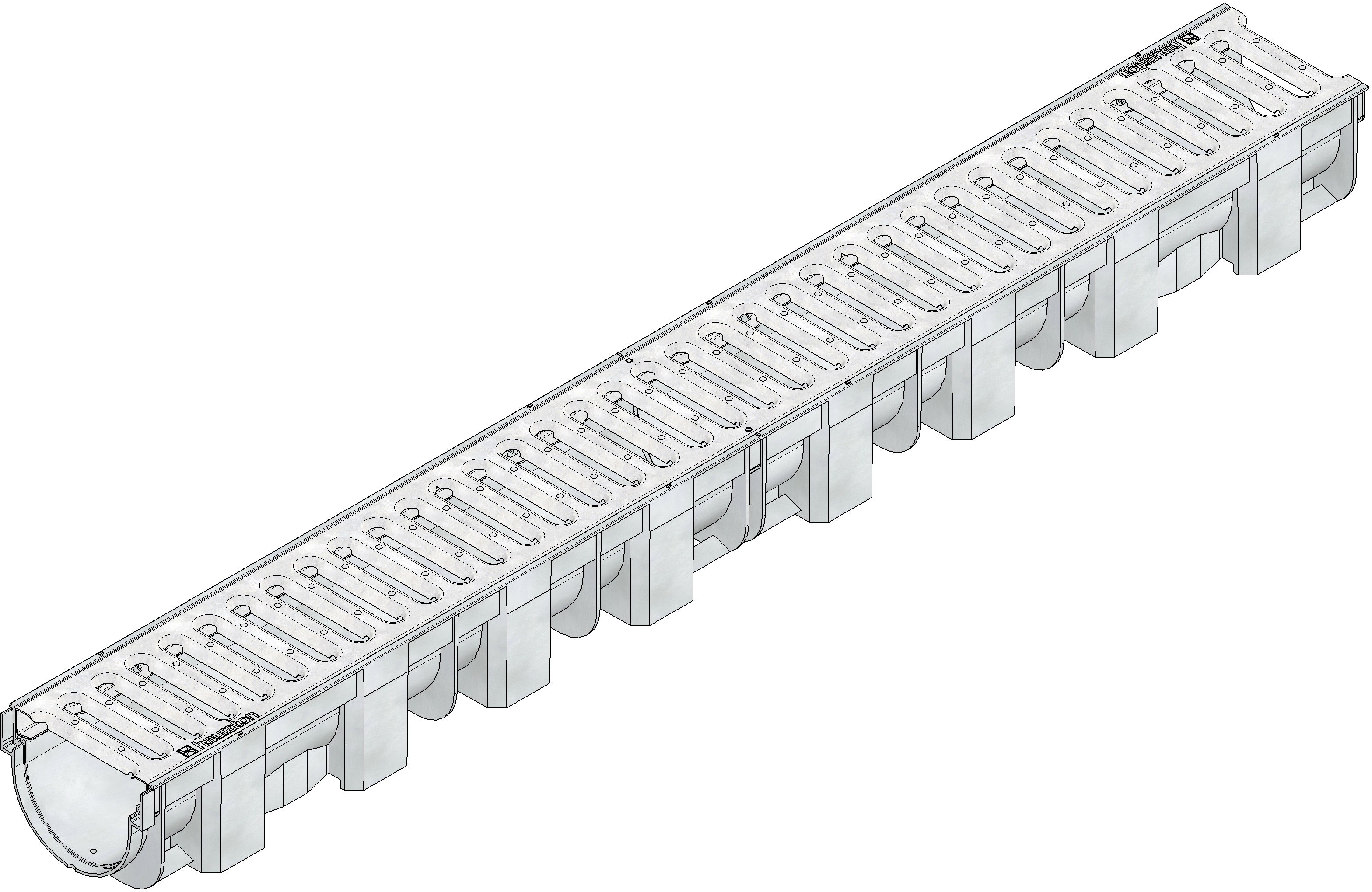

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Top view

Data Sheet

Technical information and metrics
Article No.
44332
Length
1000 mm
Width
119 mm
Height
89 mm
Einlegetiefe
20 mm
Weight
1.90 kg
Material
recycled polypropylene, strip galvanized steel
Intake cross-section
263.0 cm²/m
Nominal size
90
Internal channel cross-section
45 cm²
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material cover
strip galvanized steel
Regulations
EN 1433
Sales text
TOP X Channel, silver, with slotted cover SW 80/9 mm, galvanised, cl. A 15, 1 m
Product description
TOP X Channel made of PP, silver, with slotted cover, SW 80/9 mm, galvanised, LxWxH 1000x119x89 mm, item no. 44332
Packaging unit
90
