Article No. 44336

TOP X, accessories

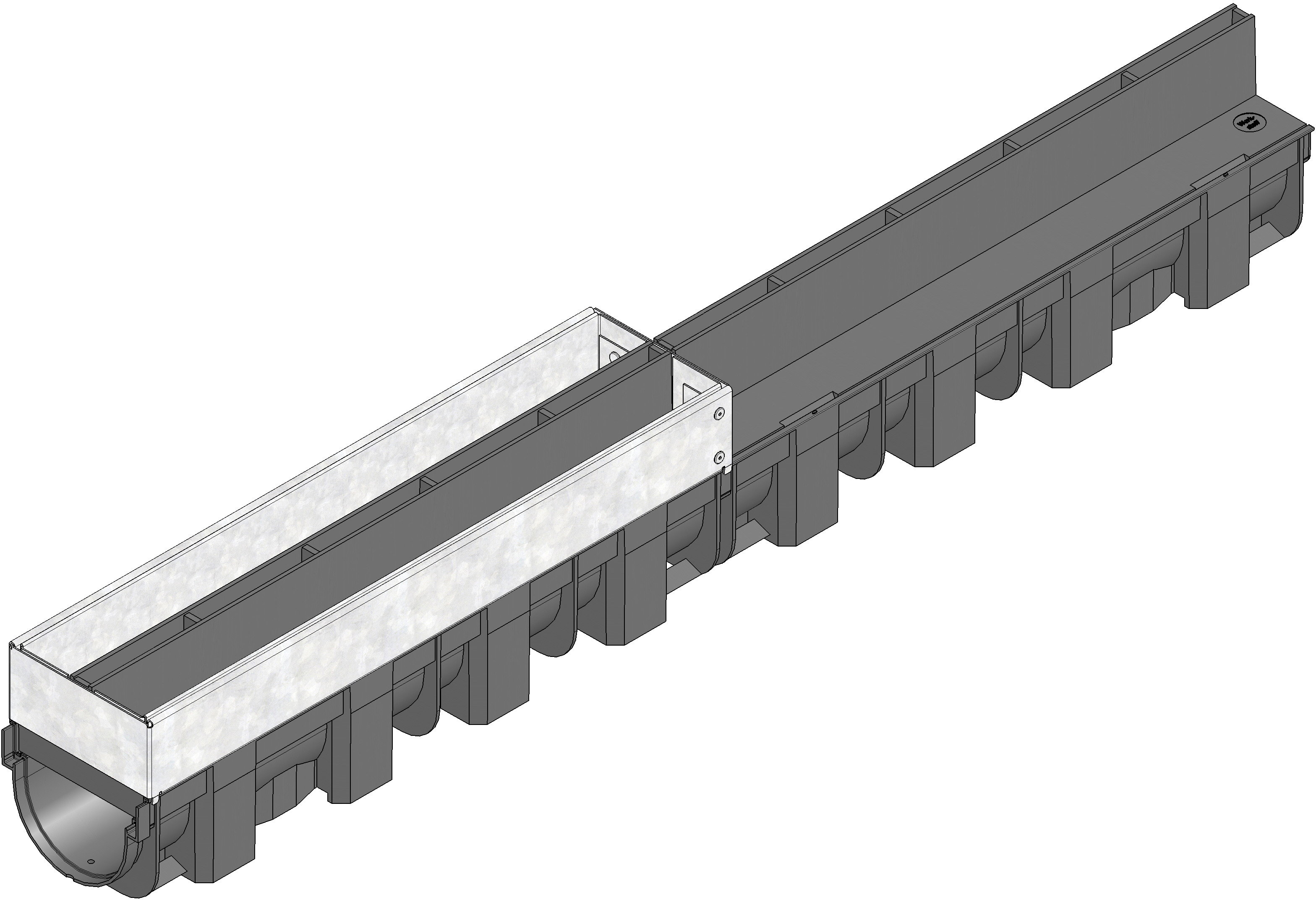

TOP X channel with slotted cover SW 12.5 mm made of PP, black, with access cover, galvanised, 1.0 m

Delivery time on request
Project request Tender Texts

Questions?

Our experienced planning team will be happy to help you.

Get in touch
Questions?

Product image

Technical drawing

Drawing (CAD)

Drawing (CAD)

Data Sheet

Technical information and metrics
Article No.
44336
Length
1000 mm
Width
119 mm
Height
147 mm
Weight
4.70 kg
Material
recycled polypropylene, strip galvanized steel
Intake cross-section
118.0 cm²/m
Nominal size
90
Type according to DIN EN 1433
M
Channel material
recycled polypropylene
Material cover
strip galvanized steel
Sales text
TOP X Channel, black, with slotted cover SW 12.5 mm made of PP, black, cl. A 15 and with integrated access cover, galvanised, 1 m
Product description
TOP X Channel made of recycled PP, black, with vertical connection possibility DN/OD 70, with two slotted covers made of PP, black, slot width 12.5 mm, slot height 58 mm, class A 15, with access cover, galvanised, LxWxH 1000x122x89/147 mm, item no. 44336
Packaging unit
-
